Description

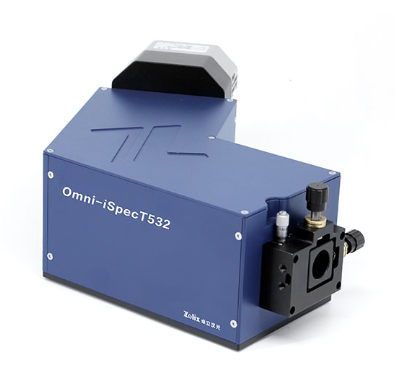

High Performance Raman Spectrometer
● Low pressure gas detection
● Confocal Raman spectroscopy
● Process control
● In-vivo or in-vitro medical diagnosis
● In-the-field and industrial applications etc.
● 1x Spectrograph base unit with XY adjustable universal fiber adaptor and manual entrance slit.
● 1x CCD detector with power supply and USB2.0 cable
Option
● Shutter
● 2″ 532nm long pass edge filter (OD=6)
● 2″ 785nm long pass edge filter (OD=6)
Operating & Storage Conditions
● Operating Temperature: 10℃ to 40℃ ambient
● Relative Humidity: < 80% (non-condensing)
● Ingress Protection: IP20
● Storage Temperature: -20℃ to 70℃
Power Requirements
● PS-12: 110 – 240 Vac, 50 – 60 Hz
OEM PSU recommendation:
● +12V, ± 5%, 5A maximum
● Regulation 11.4V minimum, ~ 12.0V typical, ~ 12.6V maximum
● Ripple & Noise: 200 mV maximum
Dimension
