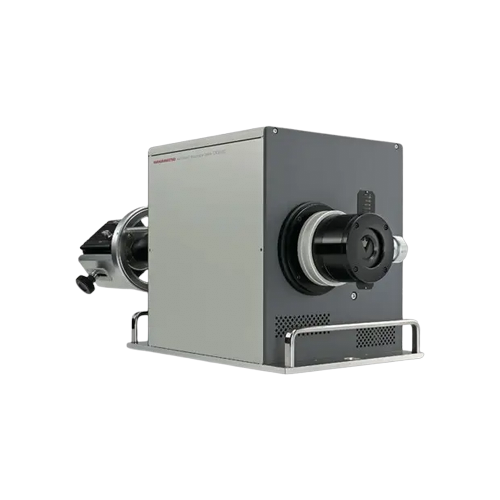

Name: Hamamatsu C13410 고다이내믹레인지 스트릭 카메라
Brand: Streak Cameras

Description

The C13410 is a high dynamic range streak camera that can handle a large number of photo-electrons. This feature enables single-shot measurements of ultra fast phenomena with a dynamic range as high as 10 000 : 1.
This system is suitable for high-precision simultaneous measurement of high-intensity and weak intensity pulse light.

C13410은 다량의 광전자를 처리할 수 있는 고동적 범위 스트릭 카메라입니다. 이 특성을 통해 최대 10 000 : 1의 높은 동적 범위로 초고속 현상의 단일 촬영 측정이 가능합니다. 이 시스템은 고강도 및 약강도 펄스광의 고정밀 동시 측정에 적합합니다.

High dynamic range of 10 000 : 1 (at temporal resolution 100 ps)
Temporal resolution of 5 ps*
Effective photo cathode size: 17 mm
Simultaneous measurement of light intensity on temporal and spatial (wavelength) axis

10,000:1의 높은 다이내믹 레인지 (시간 분해능 100 ps 기준)
5 ps의 시간 분해능*
유효 광음극 크기: 17 mm
시간 및 공간(파장) 축에서 빛의 강도 동시 측정

* The dynamic range of the streak camera is 1000:1 at the fastest time range with temporal resolution of 5ps. Image intensifier is required to detect singel photo-electron.

Applications

Research involving laser fusion lasers, free electron lasers and various other types of pulsed lasers
Plasma light emission, radiation, laser ablation, combustion and explosion
Picosecond transient absorption measurement (Time dependence of absorption is shown on the right.)
LIDAR Thomson scattering, time-of-flight laser ranging
Fluorescence lifetime measurement, time-resolved raman spectroscopy

레이저 핵융합 레이저, 자유 전자 레이저 및 기타 다양한 유형의 펄스 레이저 관련 연구
플라즈마 발광, 방사선, 레이저 어블레이션(ablation), 연소 및 폭발
피코초 과도 흡수 측정
라이다(LIDAR) 톰슨 산란, 비행시간(TOF) 레이저 거리 측정
형광 수명 측정, 시간 분해 라만 분광학

Specifications

Type number	C13410-01A	C13410-01B	C13410-02A	C13410-02B
Photocathode	S-20		S-1
Spectral response	200 nm ~ 850 nm		300 nm ~ 1060 nm
Effective photocathode size	7.0 mm × 17.48 mm
Phosphor screen	P-43 Φ25 mm Fiberopic output
Spatial resolution	18 lp/mm or more (center of photocathode, wavelength 530 nm)
Image enhancement part	Image Intensifier (I.I.) / Image Booster(I.B.) Outside attachment
Focus	Magnetic focus
Temporal resolution	Better than 5 ps (at the fastest sweep range)
Sweep time / full screen 1, 2, 5 step	0.5 ns ~ 1 ms	0.5 ns ~ 10 ms	0.5 ns ~ 1 ms	0.5 ns ~ 10 ms
Trigger jitter	Less than ±20 ps (at the fastest sweep range)
Trigger delay	Approx. 30 ns (at the fastest sweep range)
Maximum sweep repetition frequency	1 kHz at OPEN FIXED mode, 100 Hz at NORMAL mode (at the fastest sweep range)
Operation mode	FOCUS / OPERATE
Streak trigger input (Maximum input voltage)	±5 V, 50 Ω
Streak trigger input (Trigger level)	±4 V Adjustable
Monitor out signal	LVCMOS 10 kΩ
Gate mode	NORMAL / GATE / OPEN FIXED
Gate method	Photocathode gate
Maximum gate repetition frequency	100 Hz
Extinction ratio	More than 1 : 10^5
Input signal	+3.5 V ~ +5.0 V, 50 Ω, rising edge
Gate delay time	1 μs
Interface	USB 2.0
Power supply	AC 100 V ~ AC 240 V, 50 Hz/60Hz
Power consumption	Approx. 100 VA
