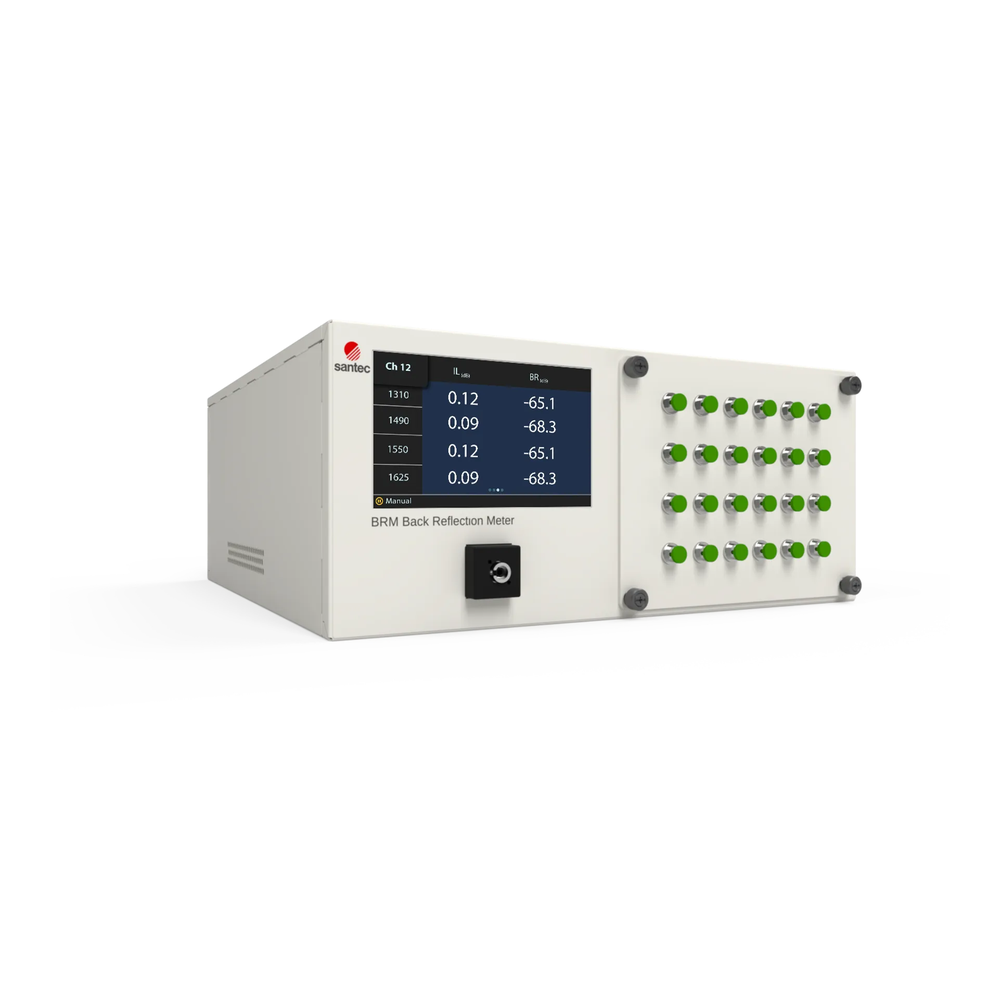

Santec BRM-100 product image

Santec BRM-100 백리플렉션 측정기 Backreflection Meter

Backreflection meter, ± 0.4 dB accuracy, −85 dB sensitivity, up to 4 sources

백리플렉션 측정기, ± 0.4 dB, −85 dB 감도

Category: Tags: , , , , Brand:

Description

The BRM-100 backreflection meter features up to four built-in sources (450 to 1650 nm) and best-in-class backreflection accuracy of ± 0.4 dB with measurement sensitivity down to −85 dB. With selectable 2 mm InGaAs / 5 mm Ge / integrating sphere detectors, it supports single-fiber and multifiber (MPO, duplex LC) IL/BR testing, meeting IEC 61280-4-1 Encircled Flux for multimode.

BRM-100 백리플렉션 측정기는 최대 4개 내장 광원(450~1650 nm)과 ± 0.4 dB의 동급 최고 백리플렉션 정확도, −85 dB까지의 측정 감도를 제공합니다. 2 mm InGaAs / 5 mm Ge / 적분구 검출기를 선택할 수 있어 단일·다중 광섬유(MPO, 듀플렉스 LC) IL/BR 테스트를 지원하며, 멀티모드는 IEC 61280-4-1 Encircled Flux를 충족합니다.

Key Features

  • Best-in-class BR accuracy: ± 0.4 dB
  • 동급 최고 BR 정확도: ± 0.4 dB
  • Backreflection range: 0 to −85 dB
  • 백리플렉션 범위: 0~−85 dB
  • Up to four built-in sources (450–1650 nm)
  • 최대 4개 내장 광원 (450~1650 nm)
  • Selectable 2 mm InGaAs / 5 mm Ge / integrating sphere
  • 2 mm InGaAs / 5 mm Ge / 적분구 선택
  • Single-fiber and multifiber testing
  • 단일·다중 광섬유 테스트
  • MM meets IEC 61280-4-1 Encircled Flux
  • 멀티모드 IEC 61280-4-1 Encircled Flux 충족

Applications

  • IL/BR testing of fiber optic components
  • 광섬유 부품 IL/BR 테스트
  • Single-fiber and multifiber (MPO) testing
  • 단일·다중 광섬유(MPO) 테스트
  • Incoming inspection
  • 입고 검사
  • QA and R&D testing
  • QA 및 연구개발 테스트

Specifications

Parameter Single-mode Multimode
Fiber Type 9/125 µm 50/125 & 62.5/125 µm
Operating Wavelengths 1310/1490/1550/1625 nm 850/1300 nm
Backreflection Range 0 to −85 dB 0 to −60 dB
Backreflection Accuracy ± 0.4 dB
Detector Type 2 mm InGaAs / 5 mm Ge / Integrating Sphere
Power Range 0 to −80 / 0 to −60 / 0 to −40 dBm
Insertion Loss Accuracy ± 0.05 dB ( 5 dB)
Absolute Power Accuracy ± 0.25 dB
