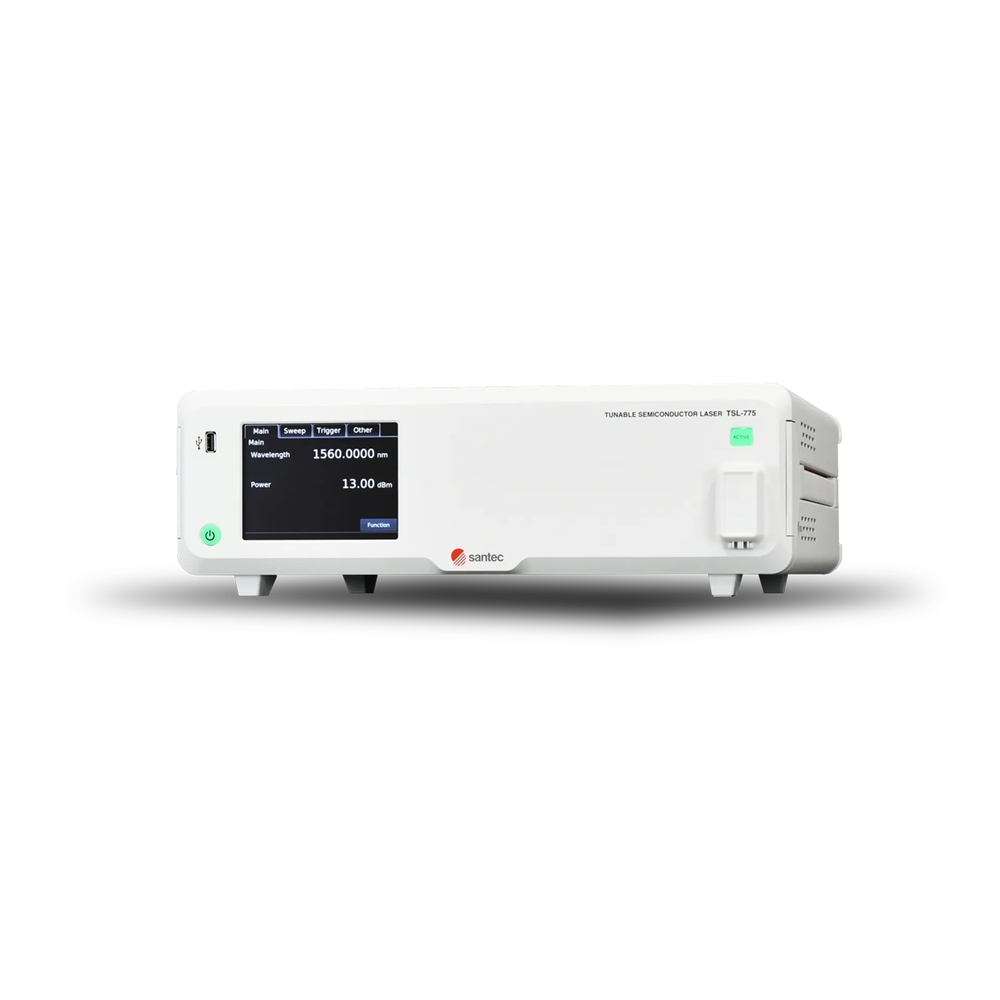

Name: Santec TSL-775 파장가변 레이저 Tunable Laser
Brand: 05. Laser Systems

Description

The TSL-775 is Santec’s ultimate-performance tunable laser, delivering market-leading wavelength accuracy and stability with ultra-narrow linewidth. With sub-picometer wavelength accuracy (±0.5 pm typ.), exceptional power stability and a >90 dB/0.1 nm SNR, it is designed for the most demanding optical test and measurement applications.

TSL-775는 Santec 최고 성능 파장가변 레이저로, 초협선폭과 함께 업계 최고 수준의 파장 정확도·안정성을 제공합니다. sub-pm 파장 정확도(±0.5 pm typ.), 뛰어난 출력 안정성, >90 dB/0.1 nm 신호대잡음비로 가장 까다로운 광 측정 응용에 적합합니다.

Key Features

Ultimate wavelength accuracy: ±0.5 pm typ.
최고 파장 정확도: ±0.5 pm typ.
Sweep speed: 0.5 to 200 nm/s
스캔 속도: 0.5~200 nm/s
Wavelength stability: < ±0.5 pm (24 h)
파장 안정성: < ±0.5 pm (24시간)
Ultra-narrow linewidth: 60 kHz (< 10 kHz instantaneous)
초협선폭: 60 kHz (순간 < 10 kHz)
High SMSR: ≥ 50 dB
고 SMSR: ≥ 50 dB
Signal to source spontaneous emission: ≥ 90 dB/0.1 nm
자발방출 대비 신호비: ≥ 90 dB/0.1 nm

Applications

Optical component characterization
광소자 특성 평가
Coherent optical measurement
코히런트 광 측정
Precision spectroscopy and sensing
정밀 분광학 및 센싱
Photonic integrated circuit testing
포토닉 집적회로 테스트

Specifications

Parameter	Specification
Wavelength Tuning Range	1480–1640 / 1490–1630 nm
Wavelength Setting Resolution	0.1 pm
Absolute Wavelength Accuracy (typ.)	±0.5 pm @25±1°C
Wavelength Repeatability	±0.5 pm (±0.2 typ.)
Wavelength Stability (typ.)	< ±0.5 pm (24 h)
Sweep Speed	0.5 to 200 nm/s
Output Power (Peak, typ.)	≥ 13 dBm
Power Repeatability	±0.01 dB (±0.002 typ.)
Linewidth (typ.)	60 kHz (instantaneous < 10 kHz)
SMSR (typ.)	≥ 50 dB
Signal to Source Spontaneous Emission	≥ 90 dB/0.1 nm
Optical Fiber	PMF
Communication	GP-IB (IEEE 488.2), USB, Ethernet
Operating Temperature	15 to 35 °C
Dimensions (W×D×H)	440 × 416 × 133 mm
Weight	16 kg
