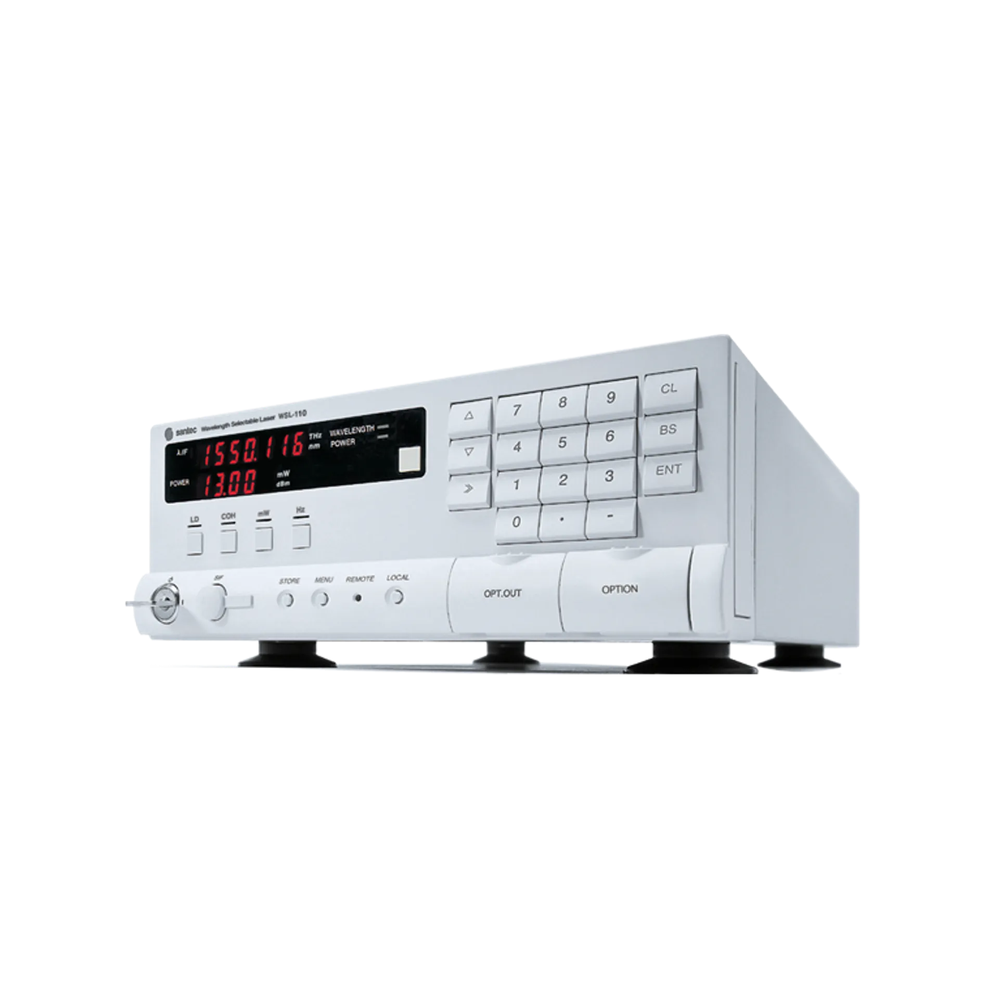

Santec WSL-110 product image

Santec WSL-110 파장가변 레이저 Tunable Laser

Compact gridless tunable laser, C/L-band, 100 MHz resolution, 100 kHz linewidth, 3 kg

소형 그리드리스 파장가변 레이저, C/L-밴드, 100 MHz

Category: Tags: , , , , Brand:

Description

The WSL-110 is a compact, gridless wavelength-tunable laser source covering the C-band and L-band with 100 MHz (0.8 pm) frequency resolution. With any-frequency tuning, narrow 100 kHz linewidth and a compact 210×300×80 mm form factor, it is ideal for DWDM component testing and coherent optical applications.

WSL-110은 C-밴드와 L-밴드를 100 MHz(0.8 pm) 주파수 분해능으로 커버하는 소형 그리드리스 파장가변 레이저 광원입니다. 임의 주파수 가변, 좁은 100 kHz 선폭, 소형 210×300×80 mm 폼팩터로 DWDM 소자 테스트 및 코히런트 광 응용에 적합합니다.

Key Features

  • Gridless tuning: C-band & L-band
  • 그리드리스 가변: C-밴드 & L-밴드
  • Frequency resolution: 100 MHz (0.8 pm @1550 nm)
  • 주파수 분해능: 100 MHz (0.8 pm @1550 nm)
  • Narrow linewidth: 100 kHz typ.
  • 좁은 선폭: 100 kHz typ.
  • Fine tune range: ±6 GHz
  • 미세 조정 범위: ±6 GHz
  • Compact: 210 × 300 × 80 mm, 3 kg
  • 소형: 210 × 300 × 80 mm, 3 kg
  • SMSR: > 40 dB (55 typ.)
  • SMSR: > 40 dB (55 typ.)

Applications

  • DWDM component testing
  • DWDM 소자 테스트
  • Coherent optical communication research
  • 코히런트 광통신 연구
  • Optical channel monitoring
  • 광 채널 모니터링
  • Fiber optic sensing
  • 광섬유 센싱

Specifications

Parameter C-band L-band
Wavelength Range C-band: 1527.60–1565.50 nm L-band: 1568.77–1608.76 nm
Frequency Range C: 191.50–196.25 THz L: 186.35–191.1 THz
Channel Spacing 25 GHz (any frequency)
Frequency Resolution 100 MHz (0.8 pm @1550 nm)
Frequency Accuracy to ITU grid < ±2.5 GHz (±1.0 typ.)
Fine Tune Range ±6 GHz
Output Power Tuning Range C: 9.5–15.5 dBm L: 8.5–14.5 dBm
Power Stability @1h (typ.) ±0.01 dB
Linewidth (typ.) 100 kHz
SMSR > 40 dB (55 typ.)
Polarization Extinction Ratio (typ.) 20 dB
Optical Connector FC/APC or SC/APC
Interface GP-IB, USB
Dimensions (W×D×H) 210 × 300 × 80 mm
Weight 3 kg

원본 제품 페이지: https://inst.santec.com/products/test-and-measurement/tunablelaser/wsl-110
