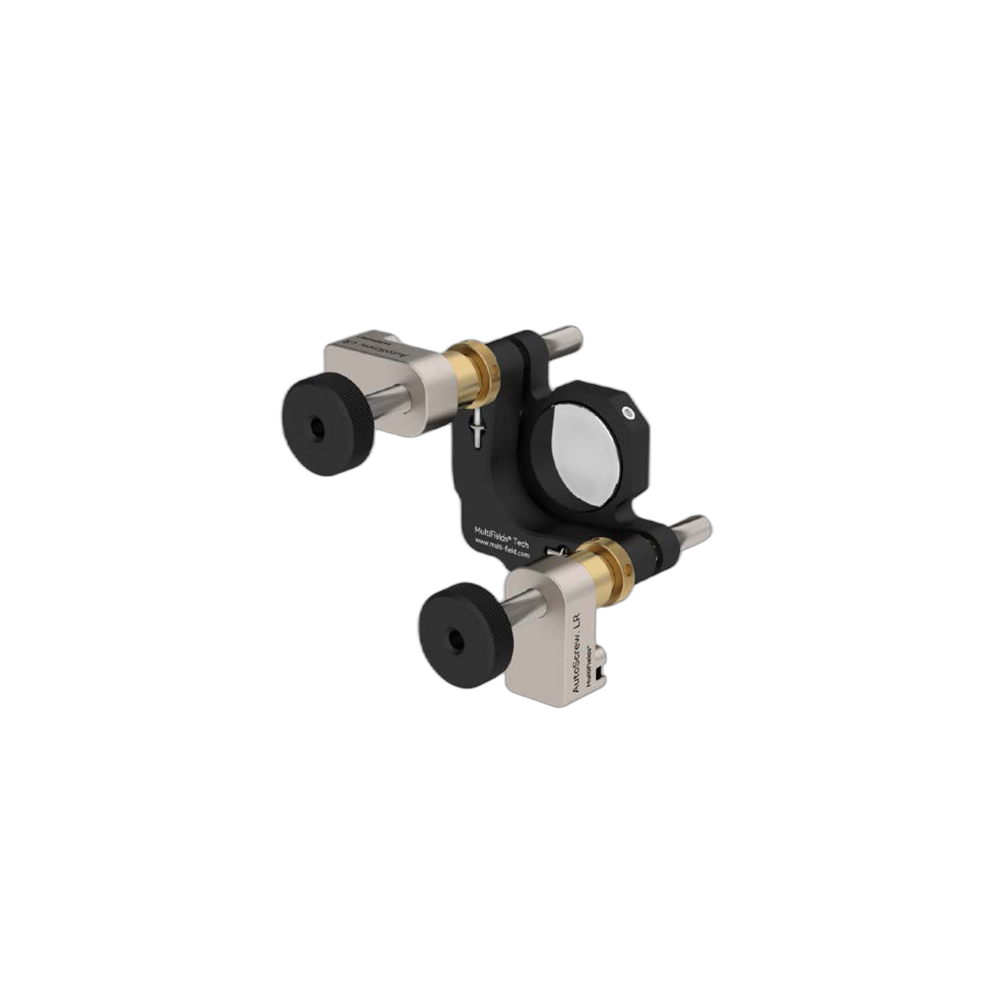

Zolix AutoScrew.LR 광학 프레임 조절기 Optical Frame Adjuster

Description

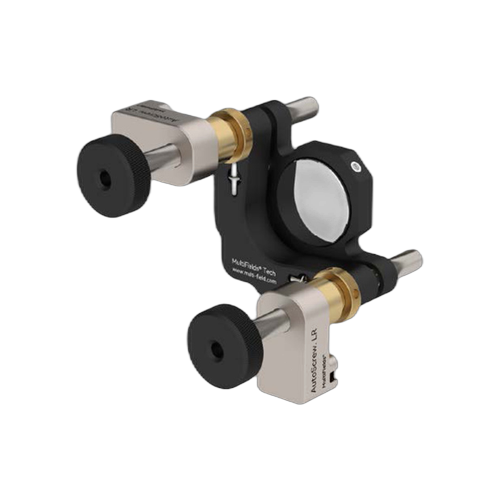

Piezoelectric Linear Motion AutoScrew.LR Piezoelectric motion@RT solutions AutoScrew Series Optical frame adjuster Piezo-Linear Stage with compact shape and no compromise on power performance; while guaranteeing a premium price space. Product Features Holding force 100 N, feeding force 20 N. Earliest pace 20 nm Max. travel 6 mm Self-locking at stop, no heat generation Threads compatible with standard frame threads Controller compatible with MultiFieldsⓇ Motion Controller – Newton Series 2D – Dimensional drawing

압전 선형 모션 AutoScrew.LR. 압전 모션 솔루션 AutoScrew 시리즈. 광학 프레임 조절기. 소형이면서 높은 성능을 타협 없이 제공하는 압전 선형 스테이지.

Specifications

No.	Parameter	Default	.HV
.NM version: non-magnetic; .HV version: high vacuum
1	Bottom size × height	65 × 65 mm × 12 mm
2	Main material	Stainless Steel
3	Cables & Connectors	Standard shielded cable, D-Sub 9 Connector	Kapton enameled wire, PEEK-2mm Pin
Motion Parameters — Space Recommended Mounting Form I
4	Travel	6 mm
5	Max. Velocity	0.5 mm/min, MAX. 2 mm/s
6	Max. Step	Typical 10 nm, MAX. 50 nm
7	Drive Frequency	MAX. 2 kHz, Typical 350 Hz
8	Active thrust	20 N
9	Holding Force	100 N
10	Max. Lateral Force	1 N
Motion Parameters — Space Recommended Mounting Form II
11	Maximum Vertical Load	2 N
12	Holding Force	5 N
13	Operating temperature	10 ~ 40°C

Dimensions

---
