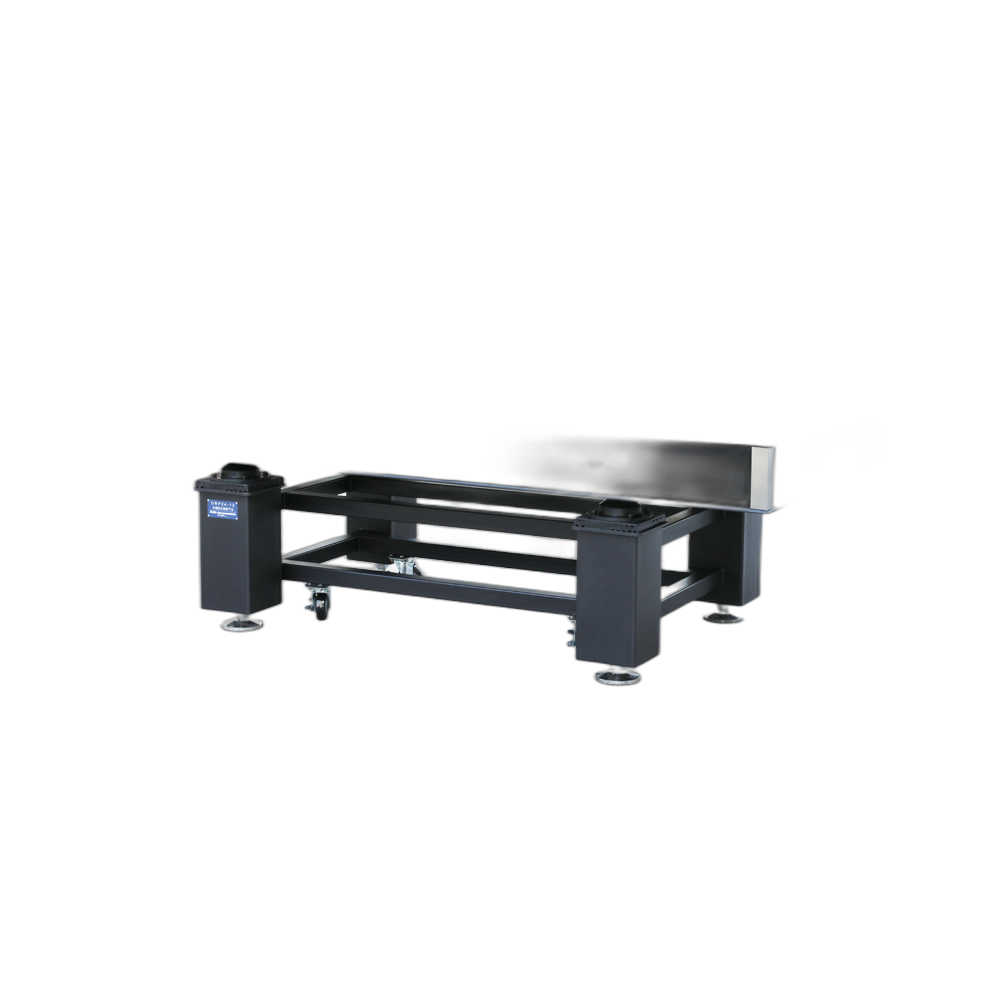

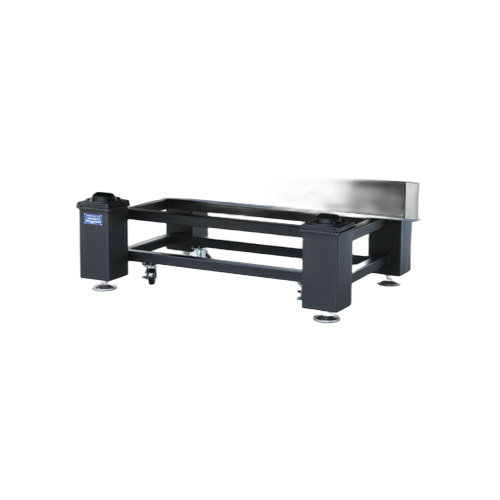

Zolix DRP 제진 광학 테이블 Damping Vibration Isolation Optical Table
DRP series damping vibration isolation optical table for sensitive experiments
정밀 실험용 DRP 시리즈 제진 광학 테이블
Description
Specification： Resonant Frequency：＜6~15Hz Surface Flatness：0.02~0.05mm/600mm 600mm Working Surface：4-6mm thick SUS430(1Cr17) stainless steel l Bottom Skin：4-6mm thick carbon Steel Thickness：100/200/300mm Total Height( table top and supports):800mm，Height Adjustment：-10~+15mm Mounting Hole Grid:：25mm 25mm Mounting Hole Borders：37.5mm Mounting Holes：M6 Weight：100mm thickness：120Kg/m2 200mm thickness：140Kg/m2 300mm thickness：167Kg/m2 Details：
규격: 공진 주파수 6~15Hz 이하, 표면 평탄도 0.02~0.05mm/600mm, 작업 표면 4~6mm SUS430 스테인리스 스틸, 두께 100/200/300mm.
Specifications
|
Model |
Size(mm) |
Thickness(mm) |
Tabletop Weight(Kg) |
Table Feet Area(mm) |
Supports Load(Kg) |
Notes |
|
DRP06-06 |
600×600×800 |
100 |
43 |
120×120 |
600 |
4 legs |
|
DRP09-06 |
900×600×800 |
100 |
65 |
120×120 |
600 |
4 legs |
|
DRP10-08 |
1000×800×800 |
100 |
96 |
120×120 |
600 |
4 legs |
|
DRP12-06 |
1200×600×800 |
100 |
86 |
120×120 |
600 |
4 legs |
|
DRP12-08 |
1200×800×800 |
100 |
115 |
120×120 |
600 |
4 legs |
|
DRP12-09 |
1200×900×800 |
100 |
130 |
120×120 |
600 |
4 legs |
|
DRP12-12 |
1200×1200×800 |
100 |
173 |
120×120 |
600 |
4 legs |
|
DRP15-09 |
1500×900×800 |
200 |
189 |
200×200 |
1300 |
4 legs |
|
DRP15-10 |
1500×1000×800 |
200 |
210 |
200×200 |
1300 |
4 legs |
|
DRP15-12 |
1500×1200×800 |
200 |
252 |
200×200 |
1300 |
4 legs |
|
DRP15-15 |
1500×1500×800 |
200 |
315 |
200×200 |
1300 |
4 legs |
|
DRP18-09 |
1800×900×800 |
200 |
227 |
200×200 |
1300 |
4 legs |
|
DRP18-10 |
1800×1000×800 |
200 |
252 |
200×200 |
1300 |
4 legs |
|
DRP18-12 |
1800×1200×800 |
200 |
302 |
200×200 |
1300 |
4 legs |
|
DRP18-15 |
1800×1500×800 |
200 |
378 |
200×200 |
1300 |
4 legs |
|
DRP20-10 |
2000×1000×800 |
200 |
280 |
200×200 |
1300 |
4 legs |
|
DRP20-12 |
2000×1200×800 |
200 |
336 |
200×200 |
1300 |
4 legs |
|
DRP20-15 |
2000×1500×800 |
200 |
420 |
200×200 |
1300 |
4 legs |
|
DRP24-12 |
2400×1200×800 |
200 |
403 |
200×200 |
1300 |
4 legs |
|
DRP24-15 |
2400×1500×800 |
200 |
504 |
200×200 |
1300 |
4 legs |
|
DRP24-18 |
2400×1800×800 |
200 |
605 |
200×200 |
1300 |
4 legs |
|
DRP30-12 |
3000×1200×800 |
300 |
601 |
200×200 |
1950 |
6 legs |
|
DRP30-15 |
3000×1500×800 |
300 |
752 |
200×200 |
1950 |
6 legs |
|
DRP30-18 |
3000×1800×800 |
300 |
902 |
200×200 |
1950 |
6 legs |
|
DRP30-20 |
3000×2000×800 |
300 |
1002 |
200×200 |
1950 |
6 legs |
|
DRP35-12 |
3500×1200×800 |
300 |
701 |
200×200 |
1950 |
6 legs |
|
DRP35-15 |
3500×1500×800 |
300 |
877 |
200×200 |
1950 |
6 legs |
|
DRP35-18 |
3500×1800×800 |
300 |
1052 |
200×200 |
1950 |
6 legs |
|
DRP35-20 |
3500×2000×800 |
300 |
1169 |
200×200 |
1950 |
6 legs |
|
DRP40-12 |
4000×1200×800 |
300 |
802 |
200×200 |
1950 |
6 legs |
|
DRP40-15 |
4000×1500×800 |
300 |
1002 |
200×200 |
1950 |
6 legs |
|
DRP40-18 |
4000×1800×800 |
300 |
1202 |
200×200 |
1950 |
6 legs |
|
DRP40-20 |
4000×2000×800 |
300 |
1336 |
200×200 |
1950 |
6 legs |
|
DRP45-15 |
4500×1500×800 |
300 |
1127 |
200×200 |
1950 |
6 legs |
