Zolix EMCCD 검출기 EMCCD Detector
Electron-multiplying CCD (EMCCD) for single-photon detection spectroscopy
단광자 검출 분광용 EMCCD 검출기
Description

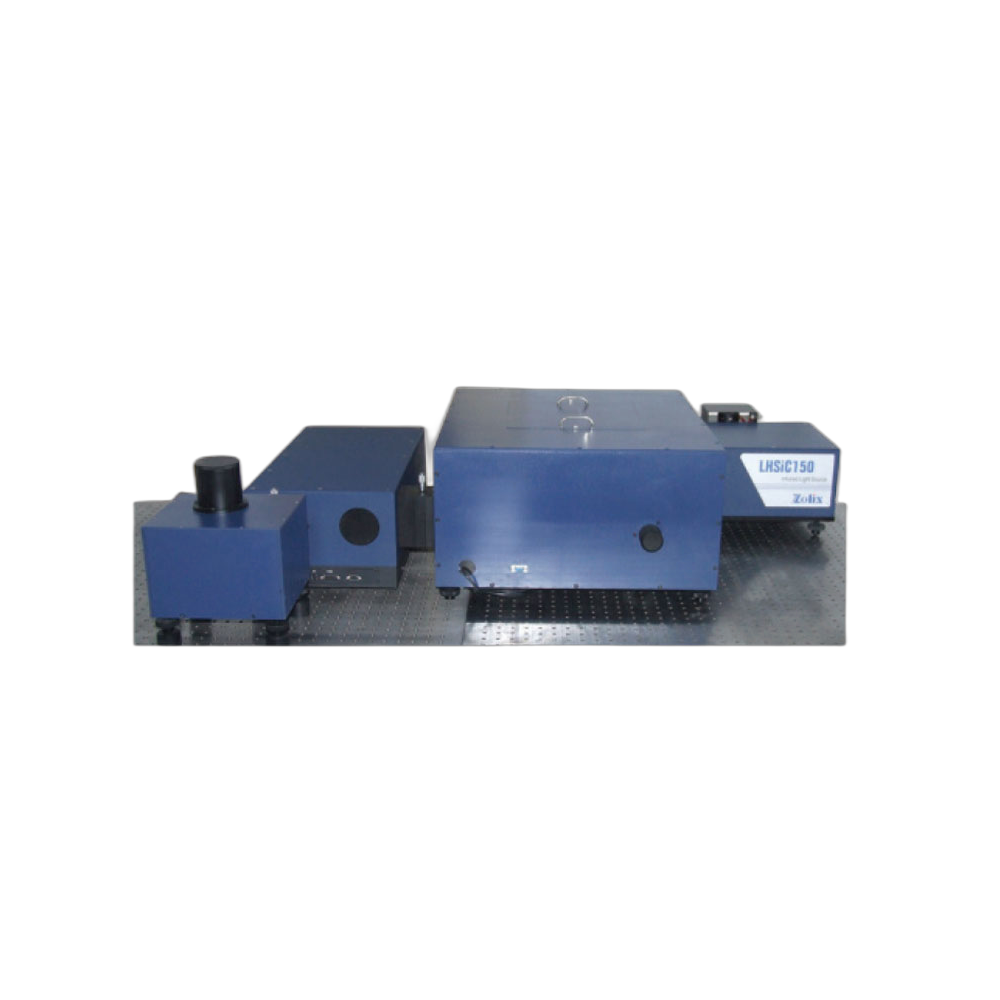

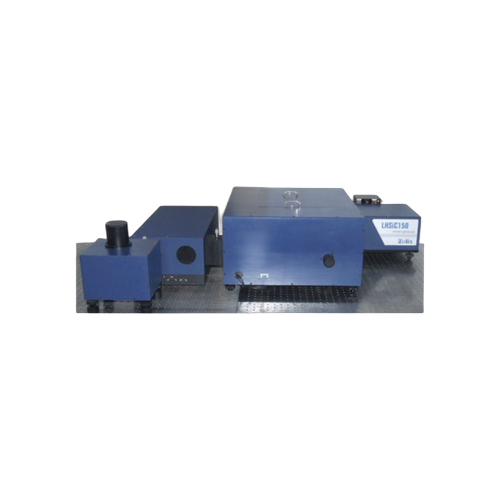

Time-Resolved IR Absorption Spectral Measurement System IR Absorption Spectral Range: 2-10 m (MCT)/1-5.5 m (InSb) Time resolution: 50ns(MCT)/ 25ns(InSb) Silicon carbide infrared radiation,wavelength range : 1-16 m Mirro with coating Au, improving Infrared light collection efficiency Infared Radiation is not only heating source but also Spectral transmittance measured radiation measure continuous spectral transmittance(absorption) of sample and time-resolved IR spectral
시간 분해 IR 흡수 스펙트럼 측정 시스템. IR 흡수 분광 범위: 2~10μm(MCT)/1~5.5μm(InSb), 시간 분해능: 50ns(MCT)/25ns(InSb), 탄화규소 적외선 복사, 파장 범위 1~20μm.
Specifications
| DInSb5-De01 | DInSb5-De02 | DInSb5-De04 | DInSb5-De07 | DInSb5-HS | |
| Active size diameter (mm) | Φ1 | Φ2 | Φ4 | Φ7 | 1×1（方） |
| Spectral range (μm) | 1-5.5 | 1-5.5 | 1-5.5 | 1-5.5 | 1-5.5 |
| Peak Responsivity (A/W) | 3 | 3 | 3 | 3 | – |
| Peak Responsivity (V/W) | – | – | – | – | 2x 104 |
| Response time (ns) | – | – | – | – | <25 |
| D*(@λpeak, 1KHz)cm Hz1/2W-1 |
1 x 1011 | 1 x 1011 | 1 x 1011 | 1 x 1011 | 1 x 1011 |
| NEP(@λpeak, 1KHz)pW/Hz1/2 |
0.8 | 1.6 | 3 | 6 | – |
| Dark current (μA) | 7 | 30 | 110 | 350 | – |
| Preamplifier | option | option | option | option | integration |
| Signal output | Current | Current | Current | Current | Voltage |
| Output signal polarity | P | P | P | P | P |
