Description

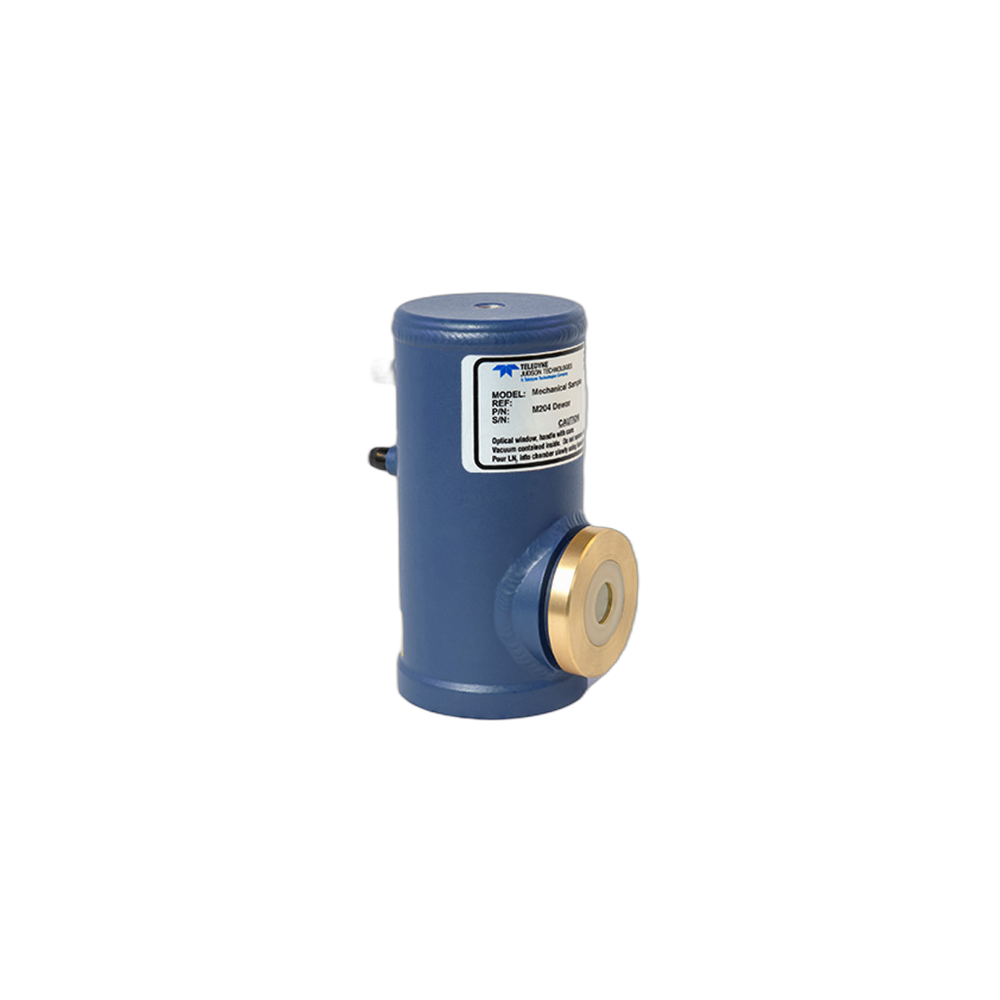

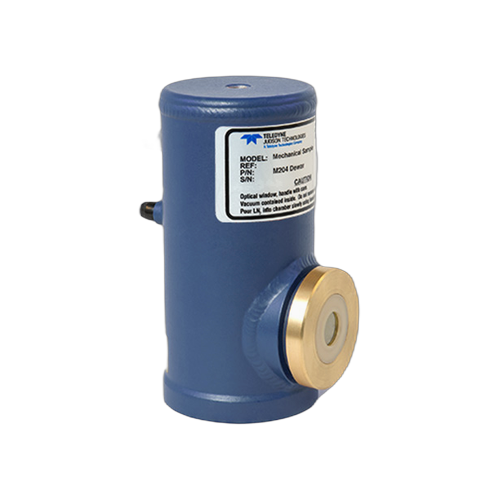

InSb series Detectors Liquid nitrogen cooling IR detectors, spectral range from 1 to 5.5 m. There are DInSb5-De(x) and DInSb5-HS two types of detectors. ◆DInSb5-De(x) is the liquid nitrogen cooling detector. x-01/ 02/ 04/ 07, there are four kinds of Active sizes for this type detector, which is suitable for the general measurement. ◆DInSb5-HS is the liquid nitrogen cooling and high speed response detector, integrated preamplifier, response time less than 25ns
InSb 시리즈 검출기. 액체 질소 냉각 IR 검출기, 분광 범위 1~5.5μm. DInSb5-De(x) 및 DInSb5-HS 2종 제공.
Specifications
| DInSb5-De01 | DInSb5-De02 | DInSb5-De04 | DInSb5-De07 | DInSb5-HS | |
| Active size diameter (mm) | Φ1 | Φ2 | Φ4 | Φ7 | 1×1（方） |
| Spectral range (μm) | 1-5.5 | 1-5.5 | 1-5.5 | 1-5.5 | 1-5.5 |
| Peak Responsivity (A/W) | 3 | 3 | 3 | 3 | – |
| Peak Responsivity (V/W) | – | – | – | – | 2x 104 |
| Response time (ns) | – | – | – | – | <25 |
| D*(@λpeak, 1KHz)cm Hz1/2W-1 |
1 x 1011 | 1 x 1011 | 1 x 1011 | 1 x 1011 | 1 x 1011 |
| NEP(@λpeak, 1KHz)pW/Hz1/2 |
0.8 | 1.6 | 3 | 6 | – |
| Dark current (μA) | 7 | 30 | 110 | 350 | – |
| Preamplifier | option | option | option | option | integration |
| Signal output | Current | Current | Current | Current | Voltage |
| Output signal polarity | P | P | P | P | P |
●Zolix provided re-focusing chamber (gold coating on all reflective optics) for liquid nitrogen cooled dewar to meet maximum throughput from Omni output slit to the detector.
●DInSb5-De(x) series are are current output mode and must work with preamplifier, ZPA-7 or ZAMP are recommended. Also recommended to work with lock-in amplifier to achieve suitable signal to noise ratio.
●DInSb5-HS is the high speed response detector, can be used for the IR time resolved measurement, can be directly connected with Oscilloscopes.
●The liquid nitrogen dewar holding time is around 8 hours.
●DInSb5-De(x) series are are current output mode and must work with preamplifier, ZPA-7 or ZAMP are recommended. Also recommended to work with lock-in amplifier to achieve suitable signal to noise ratio.
●DInSb5-HS is the high speed response detector, can be used for the IR time resolved measurement, can be directly connected with Oscilloscopes.
●The liquid nitrogen dewar holding time is around 8 hours.
