Zolix Mx 전동 다축 포지셔닝 시스템 Multi-Axis Positioning System

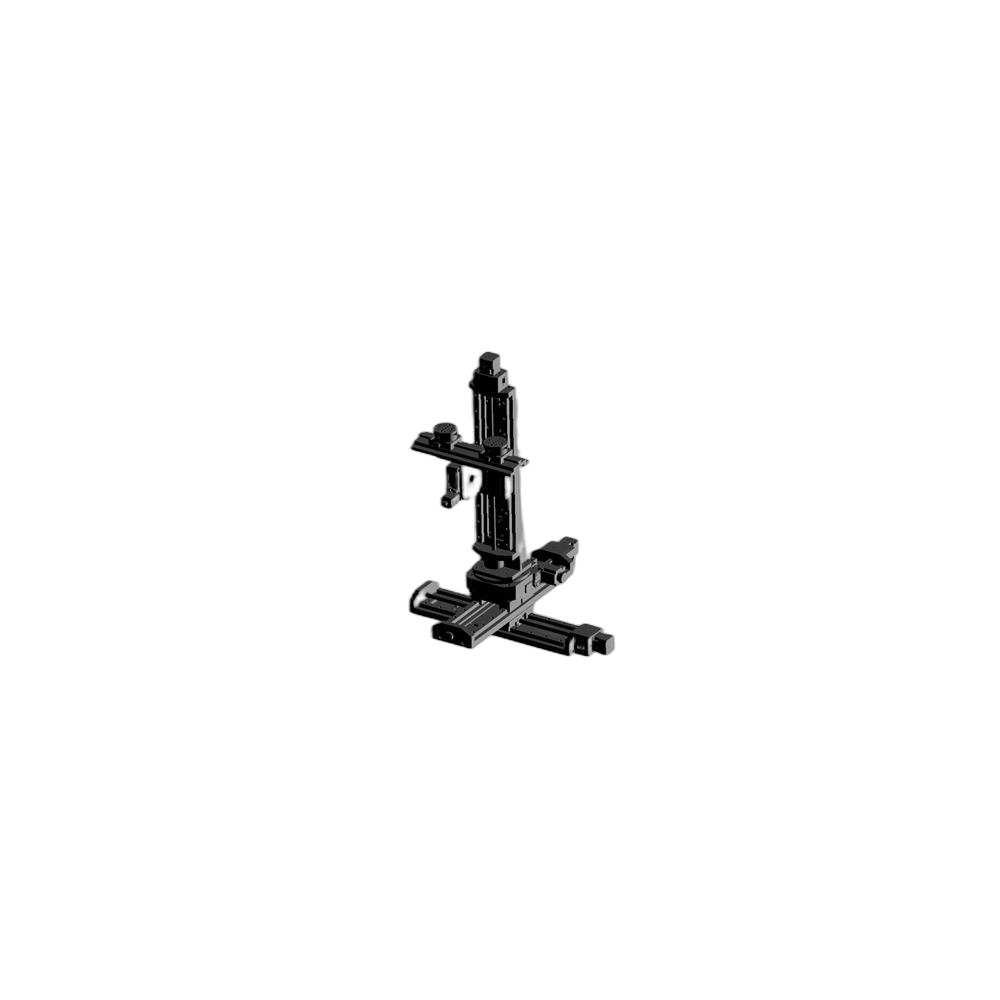

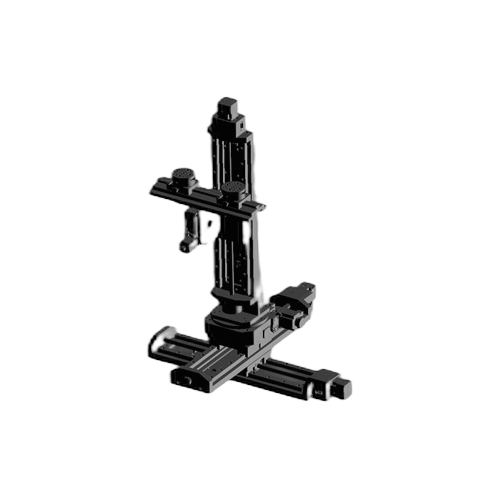

Mx series motorized multi-axis positioning systems for complex alignment
복잡한 정렬용 Mx 시리즈 전동 다축 포지셔닝 시스템
Description
Mx series motorized positioning systems are designed and manufactured by Zolix, based on four-axis or more-axis motorized combination products, to offer most flexible adjustments or positioning in limited space. The typical application scenarios include fine optical path alignment and simulation of person postures. Main characteristics: High integration degree More than 6 axis systems optional Modular design for easy maintenance Customization available Naming rules:
Mx 시리즈 전동 포지셔닝 시스템은 Zolix가 설계·제조한 4축 이상의 전동 조합 제품으로, 제한된 공간에서 유연한 조절 및 포지셔닝을 제공합니다.
Naming Rules
| M | Series code: M = motorized multi-axis positioning system |
| x | Identification of effective axis quantity (number of axes integrated) |
| xxx | Identification of linear-motion axis — None: no linear-motion axis / xxx: maximum travel range (mm) |
| R | Identification of rotation-axis — None (default): no rotation-axis / R: rotation-axis included |
| 15 | Identification of gonio-axis — None: no gonio-axis / 10: swing angle ±10° / 15: swing angle ±15° |
