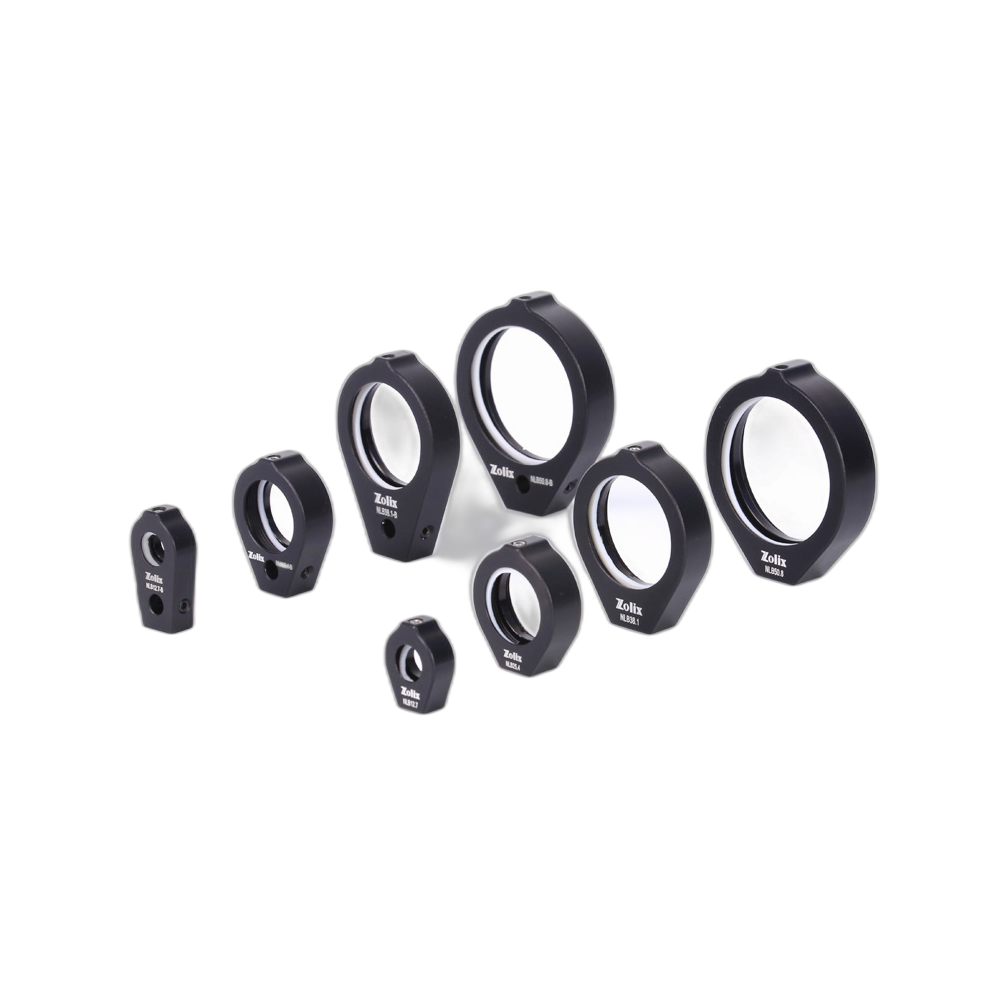

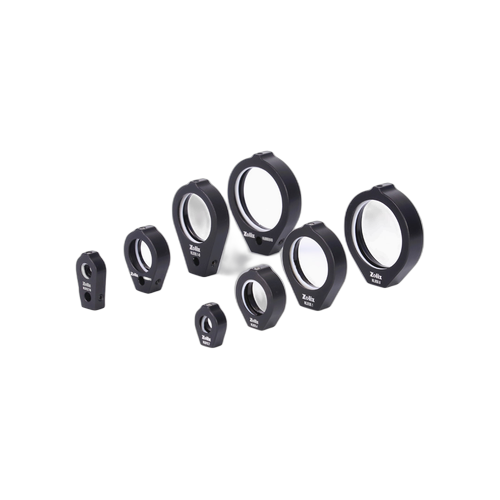

Zolix NLB 렌즈 마운트 Lens Mount
NLB series compact lens mount for standard optics
NLB 시리즈 표준 광학용 컴팩트 렌즈 마운트
Description
Features: High-quality materials: The main body is made of high-quality aluminium alloy, and the surface treated by black anodic oxidation. Lens size cover 10-50.8mm diameter come with teflon O ring for protecting the lens. Selection Table:
주요 특징: 고품질 알루미늄 합금 본체, 검정 아노다이징 처리. 렌즈 직경 10~50.8mm 대응, 테플론 O링 포함.
|
Model |
Clear Aperture A (mm) |
Optics Size B (mm) |
Optics ThicknessC (mm) |
Optic Center HeightH (mm) |
Overall Height L (mm) |
Overall thickness T (mm) |
D (mm) |
W1 (mm) |
W2 (mm) |
Mounting Hole |
|
|
NLB10 |
φ7 |
φ10 |
3~5 |
14 |
24.5 |
9 |
18 |
6 |
10 |
|
|
|
NLB12.7 |
φ10 |
φ12.7 |
3~5 |
14 |
25.5 |
9 |
20 |
6 |
10 |
|
|
|
M6 |
|||||||||||
|
NLB15 |
φ12 |
φ15 |
3~5 |
16 |
29 |
9 |
22 |
6 |
12 |
||
|
NLB20 |
φ17 |
φ20 |
3~8 |
20 |
36 |
12 |
28 |
6 |
12 |
||
|
NLB25 |
φ22 |
φ25 |
3~8 |
20 |
38 |
12 |
33 |
6 |
12 |
||
|
NLB25.4 |
φ22.5 |
φ25.4 |
3~8 |
20 |
38 |
12 |
33 |
6 |
12 |
||
|
NLB30 |
φ26 |
φ30 |
3~8 |
25 |
46 |
12 |
38 |
6 |
12 |
||
|
NLB35 |
φ31 |
φ35 |
3~8 |
25 |
48.5 |
12 |
43 |
6 |
16 |
||
|
NLB38.1 |
φ34 |
φ38.1 |
3~8 |
30 |
55 |
12 |
46 |
6 |
16 |
||
|
NLB40 |
φ36 |
φ40 |
3~8 |
30 |
56 |
12 |
48 |
6 |
16 |
||
|
NLB50 |
φ46 |
φ50 |
3~10 |
35 |
66.5 |
14 |
58 |
6 |
16 |
||
|
NLB50.8 |
φ46 |
φ50.8 |
3~10 |
35 |
67 |
14 |
59 |
6 |
16 |
||
|
Model |
Clear Aperture A (mm) |
Optics Size B (mm) |
Optics ThicknessC (mm) |
Optic Center HeightH (mm) |
Overall Height L (mm) |
Overall thickness T (mm) |
D (mm) |
E (mm) |
W1 (mm) |
W2 (mm) |
Mounting Hole |
|
|
NLB12.7-B |
φ10 |
φ12.7 |
3~5 |
25 |
36.5 |
9 |
20 |
8 |
6 |
13 |
|
|
|
NLB20-B |
φ17 |
φ20 |
3~8 |
25 |
41 |
12 |
28 |
8 |
6 |
12 |
|
|
|
M6 |
||||||||||||
|
NLB25-B |
φ22 |
φ25 |
3~8 |
25 |
43 |
12 |
33 |
8 |
6 |
12 |
||
|
NLB25.4-B |
φ22.5 |
φ25 |
3~8 |
25 |
43 |
12 |
33 |
8 |
6 |
12 |
||
|
NLB30-B |
φ26 |
φ30 |
3~8 |
40 |
61 |
12 |
38 |
10 |
6 |
12 |
||
|
NLB38.1-B |
φ34 |
φ38.1 |
3~8 |
40 |
65 |
12 |
46 |
10 |
6 |
16 |
||
|
NLB50-B |
φ46 |
φ50 |
3~10 |
40 |
71.5 |
14 |
58 |
10 |
6 |
16 |
||
|
NLB50.8-B |
φ46 |
φ50.8 |
3~10 |
40 |
72 |
14 |
59 |
10 |
6 |
16 |
||
