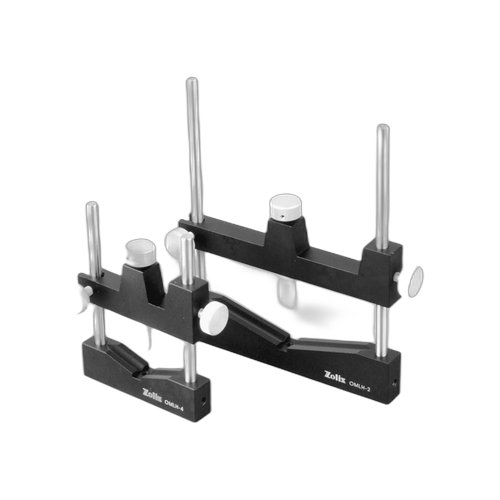

Zolix OMLH 렌즈 마운트 Lens Mount

Description

Features: High-quality materials: The main body is made of high-quality aluminium alloy, and the surface treated by black anodic oxidation. Adjustment mechanics suit for 5-75mm or 10-100mm diameter lens An teflon V-type chunk which can be pulled up and 360 degree rotate can fit the lens size and shape, the internal spring offer the press to hold the lens. Stable: V-shape slot hold the lens with the locking nob on the side Universal mounting holes: With both M4, M6 screw holes First, loosen the locking thumb wheel, move the upper movable block to the appropriate position, then slightly lock, pull the clip button, put the lens on, loosen the clip button,clamp the lens. If the elasticity of the chuck is inappropriate, the movable block can be slightly moved and then lock the lens with thumb wheel. Selection Table:

주요 특징: 고품질 알루미늄 합금 본체, 검정 아노다이징 처리. 조절 기구는 직경 5~75mm 또는 10~100mm 렌즈에 적합.

Specifications
