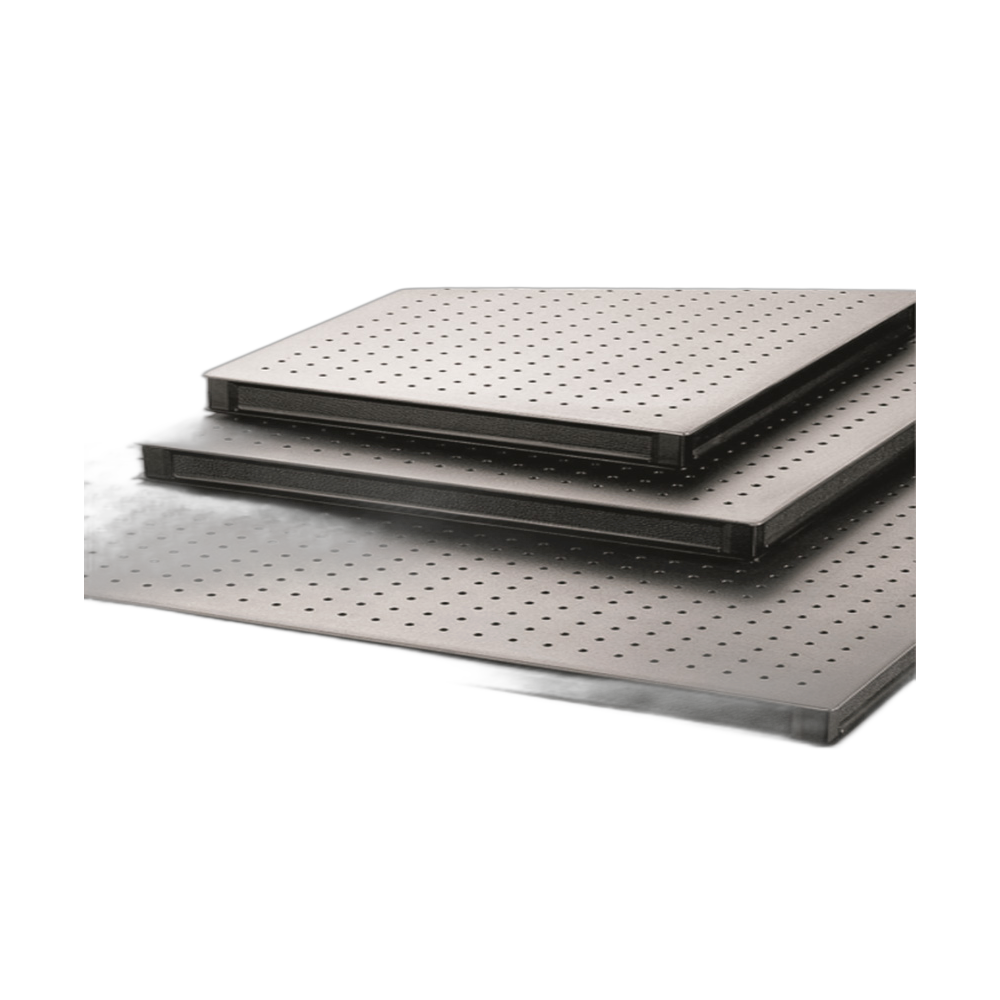

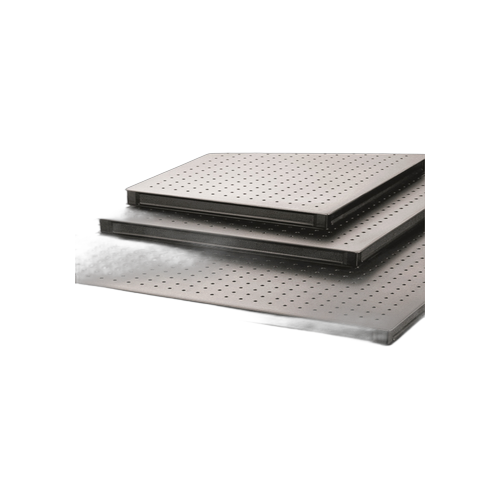

Zolix 광학 브레드보드 Optical Breadboard
Precision optical breadboards with M6 threaded holes for optical experiments
M6 나사홀 정밀 광학 브레드보드
Description
Specification： Surface Flatness： 0.1mm/600mm 600mm Working Surface：5mm thick SUS430(1Cr17) stainless steel Bottom Skin：4mm thick carbon Steel Thickness: 50/100/150/200/300mm Mounting Hole Grid: 25mmx25mm Mounting Hole Borders: 37.5mm Mounting Holes: M6 Weight： 50mm thickness：90kg/m 100mm thickness：115kg/m 150mm thickness：120Kg/m2 200mm thickness：135kg/m 300mm thickness：162kg/m Selection Table：
규격: 표면 평탄도 0.1mm/600mm, 작업 표면 5mm 두께 SUS430 스테인리스 스틸, 하단 패널 4mm 탄소강, 두께 50/100/150/200/300mm, 장착홀 격자 25mm×25mm.
|
Model |
Size(mm) |
|
NTBH33-50 |
300×300×50 |
|
NTBH345-50 |
450×300×50 |
|
NTBH4545-50 |
450×450×50 |
|
NTBH36-50 |
600×300×50 |
|
NTBH456-50 |
600×450×50 |
|
NTBH66-100 |
600×600×100 |
|
NTBH459-100 |
900×450×100 |
|
NTBH69-100 |
900×600×100 |
|
NTBH99-100 |
900×900×100 |
|
NTBH810-100 |
1000×800×100 |
|
NTBH612-100 |
1200×600×100 |
|
NTBH812-100 |
1200×800×100 |
|
NTBH912-100 |
1200×900×100 |
|
NTBH1212-100 |
1200×1200×100 |
|
NTBH615-100 |
1500×600×100 |
|
NTBH915-100 |
1500×900×100 |
|
NTBH915-150 |
1500×900×150 |
|
NTBH915-200 |
1500×900×200 |
|
NTBH1015-100 |
1500×1000×100 |
|
NTBH1015-150 |
1500×1000×150 |
|
NTBH1015-200 |
1500×1000×200 |
|
NTBH1215-100 |
1500×1200×100 |
|
NTBH1215-150 |
1500×1200×150 |
|
NTBH1215-200 |
1500×1200×200 |
|
NTBH1515-100 |
1500×1500×100 |
|
NTBH1515-150 |
1500×1500×150 |
|
NTBH1515-200 |
1500×1500×200 |
|
Model |
Size(mm) |
|
NTBH918-100 |
1800×900×100 |
|
NTBH918-150 |
1800×900×150 |
|
NTBH918-200 |
1800×900×200 |
|
NTBH1018-100 |
1800×1000×100 |
|
NTBH1018-150 |
1800×1000×150 |
|
NTBH1018-200 |
1800×1000×200 |
|
NTBH1218-100 |
1800×1200×100 |
|
NTBH1218-150 |
1800×1200×150 |
|
NTBH1218-200 |
1800×1200×200 |
|
NTBH1518-100 |
1800×1500×100 |
|
NTBH1518-150 |
1800×1500×150 |
|
NTBH1518-200 |
1800×1500×200 |
|
NTBH1020-150 |
2000×1000×150 |
|
NTBH1020-200 |
2000×1000×200 |
|
NTBH1220-150 |
2000×1200×150 |
|
NTBH1220-200 |
2000×1200×200 |
|
NTBH1520-150 |
2000×1500×150 |
|
NTBH1520-200 |
2000×1500×200 |
|
NTBH1224-150 |
2400×1200×150 |
|
NTBH1224-200 |
2400×1200×200 |
|
NTBH1524-150 |
2400×1500×150 |
|
NTBH1524-200 |
2400×1500×200 |
|
NTBH1230-200 |
3000×1200×200 |
|
NTBH1230-300 |
3000×1200×300 |
|
NTBH1530-200 |
3000×1500×200 |
|
NTBH1530-300 |
3000×1500×300 |
