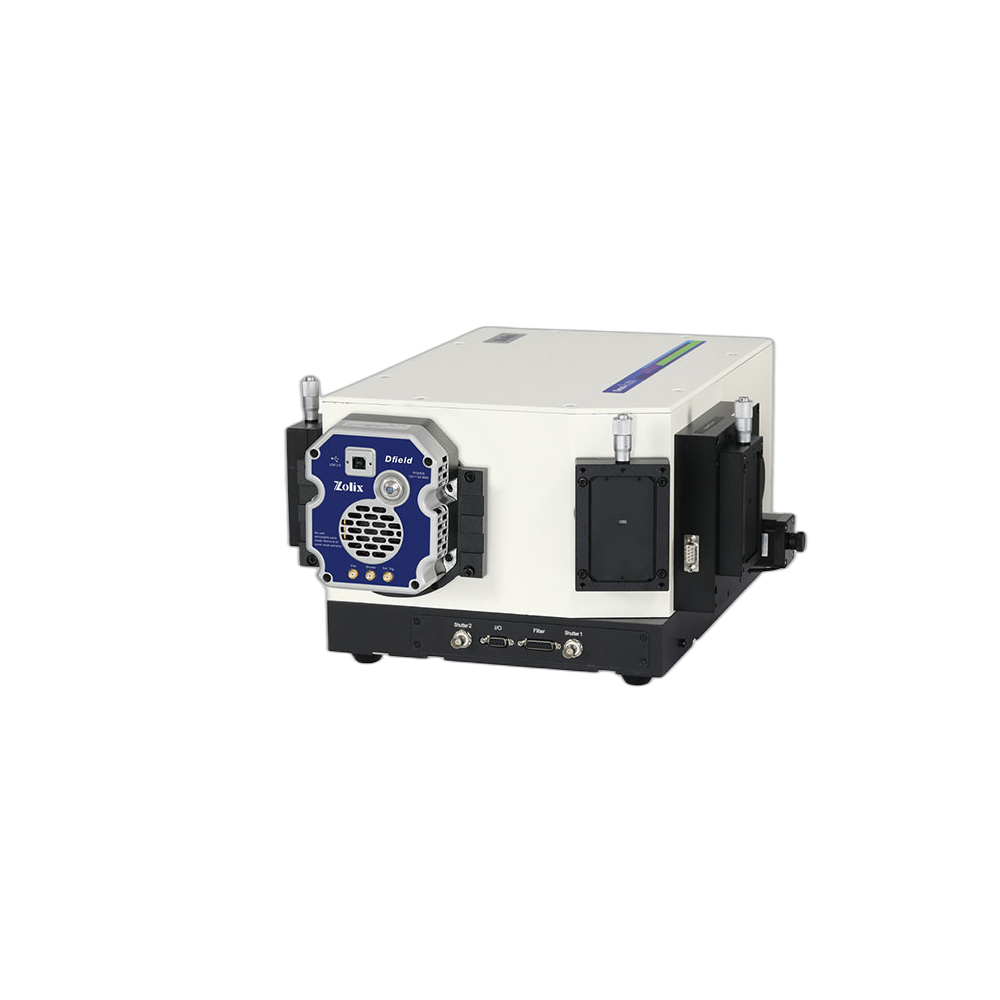

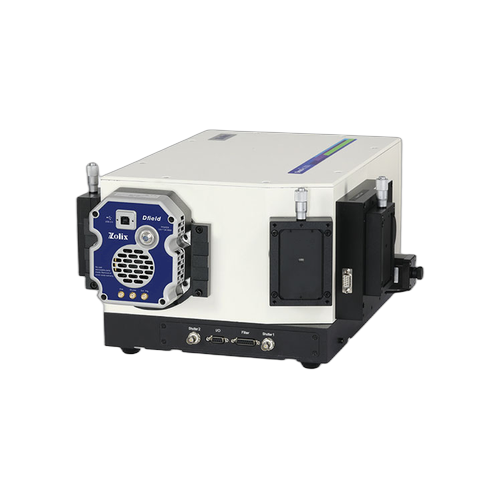

Zolix 양자 효율 측정 시스템 Quantum Efficiency System
External quantum efficiency (EQE/QE) measurement system for solar cells
태양전지 외부양자효율 EQE 측정 시스템
Description
Application: Fluorescence spectrum/ Raman spectrum/ Emission spectrum Features ■ Outstanding spectral image calibration; ■ Extremely high wavelength accuracy; ■ excellent stray light suppression; ■ Featuring spectrum connection, the spectrometer can achieve not only wide spectrum range but also high resolution.
응용 분야: 형광 스펙트럼 / 라만 스펙트럼 / 발광 스펙트럼. 주요 특징: 우수한 분광 이미지 교정, 극히 높은 파장 정확도, 탁월한 스트레이 라이트 억제, 우수한 감도.
Specifications
| Aperture Ratios | F/4.2 |
| Stray light | 1 × 10⁻⁵ |
| Slit | Width: 0.01–3 mm (motorised or manual) |
| Grating size (mm) | 68 × 68 |
| Grating mount | Interchangeable triple grating turret |
| Active pixels | 2000 × 256 |
| Pixel size (μm) | 15 × 15 |
| Output register saturation | 300,000 e⁻ |
| Maximum spectra per sec | 181 |
| Read noise | 3 e⁻ |
| Dark current | 0.1 e⁻/pixel/sec |
