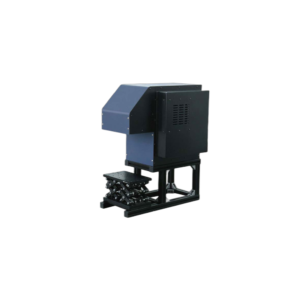

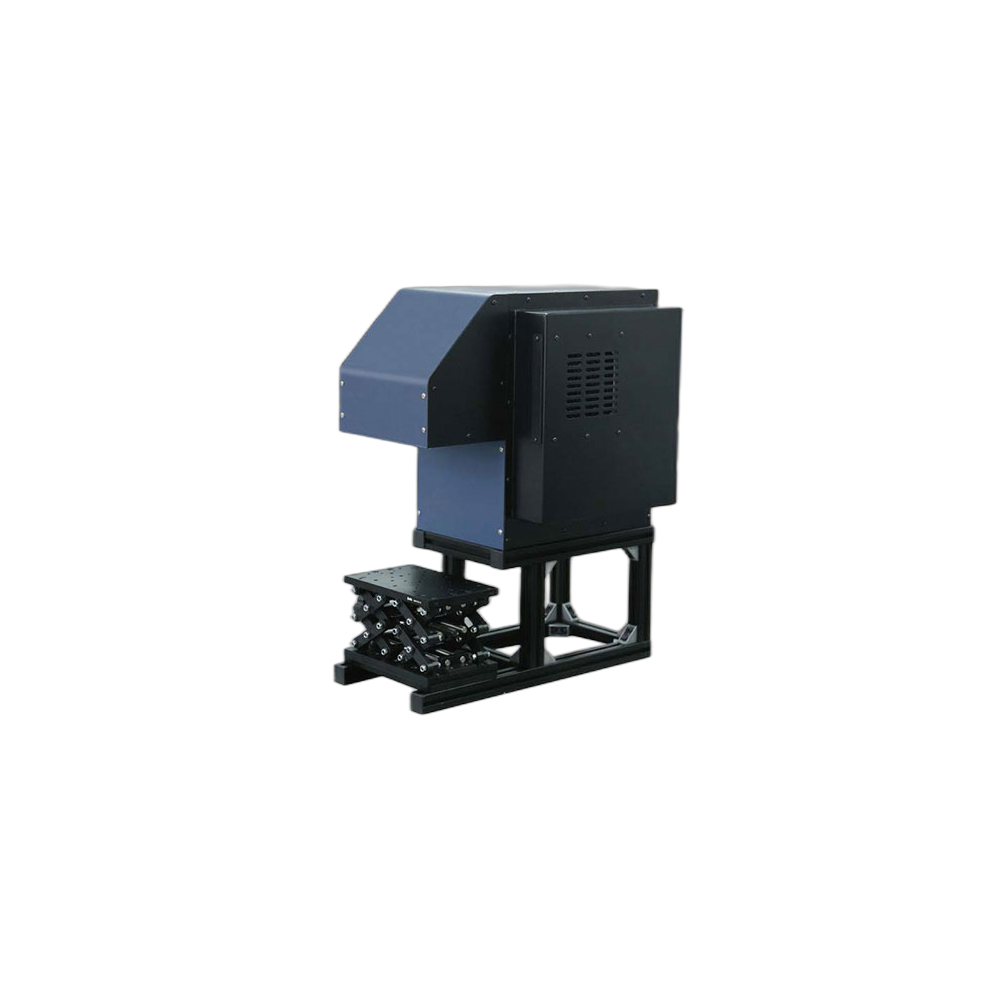

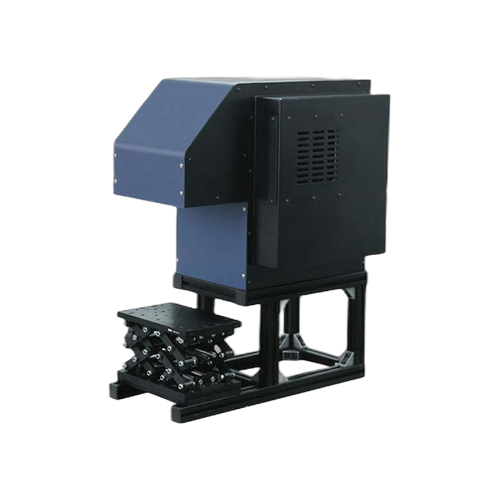

Zolix 라만 프로브 Raman Probe

Zolix 라만 프로브 Raman Probe

Raman probe for in-situ and remote Raman spectroscopy measurements
현장·원격 라만 측정용 라만 프로브

Categories: , Tags: , , , , Brand:

Description

I-V characteristics measurement is a intuitive, effective and widely used method. By measuring the I-V characteristic curve, the main physical properties of photovoltaic devices can be obtained, including photoelectric conversion efficiency, short-circuit current, opencircuit voltage, and fill factor. These are important for the research, quality inspection and application of photovoltaic devices. Zolix provides cost-effective I-V characteristic measurement systems and provides complete and professional technical support.

I-V 특성 측정은 직관적이고 효과적인 방법으로, I-V 특성 곡선을 통해 광전 소자의 주요 물성을 얻을 수 있습니다.

Specifications

■ Measure the I-V curves of solar cells under the irradiated and dark field conditions;
■ Measure solar cell short-circuit current, short-circuit current density,open-circuit voltage, maximum power, maximum power current,maximum power voltage, fill factor, photoelectric conversion efficiency,series resistance, parallel resistance;
■ Realize forward and reverse speed regulation scanning and dark current deduction function
■ Calibrated Monocrystalline Silicon Cell correction function;
■ Automatic cycle scanning.

■ Complete I-V characteristic measurement and data processing analysis
■ The irradiation direction can be changed to meet test requirement
■ Compatible with high-precision sourcemeter, providing accurate measurement results
■ Compliant with IEC 60904-9 international standard
■ Professional probes improve measurement accuracy
■ Vacuum adsorption table is convenient for fixing samples
■ Graphical display is more intuitive

Parts

Parameter

SolarIV-150A

SolarIV-300A

Solar Simulator

Irradiation Area(mm)

40×40

60×60

Spectral Match

A Class(AM1.5G)

A Class(AM1.5G)

Spot Non-uniformity(%)

≤2 A Class

≤2 A Class

Intensity instability(%)

≤2 A Class

≤2 A Class

Irradiation direction

Down

Down

Sourcemeter

IV-2400

Standard

Standard

IV-2450

Optional

Optional

Standard monocrystalline cell

QE-B1

Standard

Standard

I-V measurement software

IV-software

Standard

Standard

Sample holder

Optional
