Description

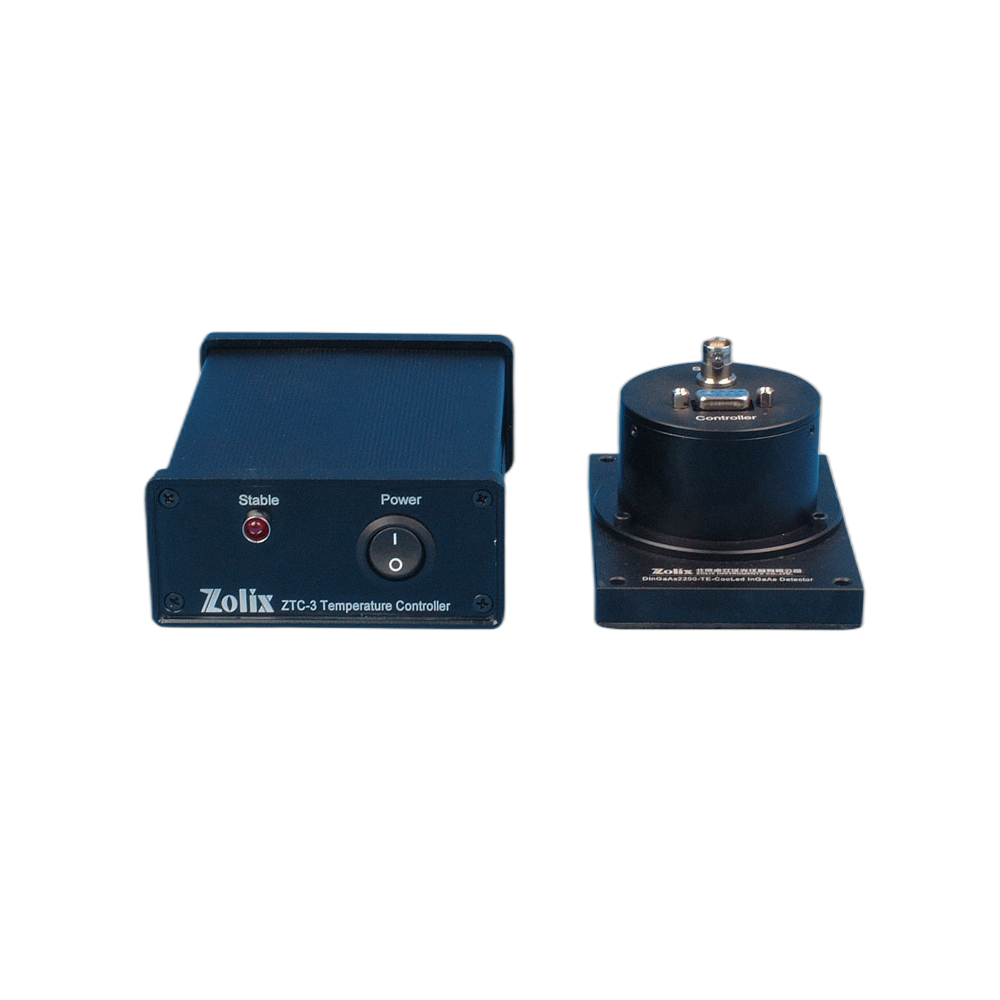

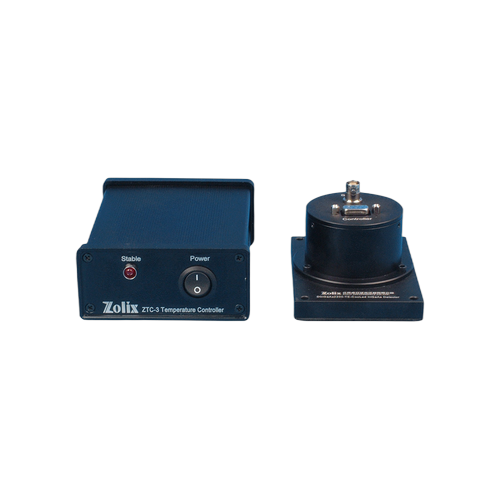

InAs series detectors InAs Detectors Application: DInAs3800-TE detectors are current output mode, before connecting to the signal processors such as oscilloscope or lock-in amplifier, the IV Transimpedance Amplifier ZAMP is proposed to be connected as a pre-amp. and which can be input current signal, you can connect to detectors to the signal processors directly. In order to improve the detection sensitivity, the IV Transimpedance Amplifier is recommended. DInAs3800-TE detectors used with the DCS103 data acquisition system, the IV Trans-impedance Amplifier is recommended in order to improve the detection sensitivity DInAs3800-TE detectors used with the DCS300PA data acquisition system, as signal amplifier has been integrated in the DCS300PA dual-channel; it does not need to match a pre-amplifier In the TE cooled mode, DInAs3800-TE detectors must work with Temperature controller (ZTC) for cooling control

InAs 시리즈 검출기. DInAs3800-TE 검출기는 전류 출력 방식으로, 오실로스코프 또는 록인 앰프 연결 전 IV 트랜스임피던스 증폭기가 필요합니다.

Specifications

High performance InAs Series Detectors

NIR detectors, spectral range from 1 to 3.8 _m. DInAs3800-TE built-in TE cooling detectors

	DInGaAs3800-TE
Effective Area Diameter(mm)	2
Spectral Range(_m)	1-3.8
Peak Responsivity(A/W)	1.5
D* (@λpeak,1KHz)cm Hz 1/2W-1	9.1×1012
NEP (@λpeak,1KHz)pW/Hz 1/2	4.4
Operating Temperature(℃)	-40
Temperature Stability(℃)	±0.5
Signal Output	current
Output Signal Polarity	P
Temperature Controller	ZTC
