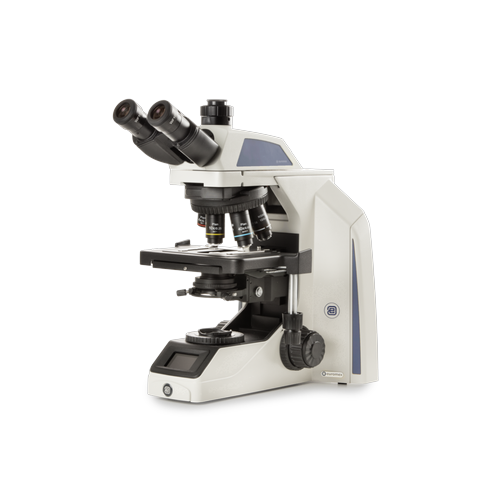

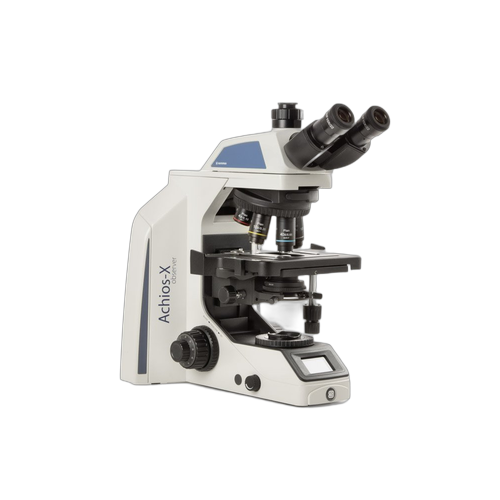

Euromex Achios-X Observer 에르고노믹 정립현미경 Ergonomic Upright Microscope

Ergonomic upright microscope with Smart Light Control, 22mm FoV, Plan Semi-Apo IOS objectives

SLC 스마트 조명, 22mm 시야, Plan 반-아포 IOS 대물렌즈 탑재 에르고노믹 정립현미경

Category: Tags: , , , , , , , , Brand:

Description

The Euromex Achios-X Observer combines ergonomic excellence with cutting-edge optical performance. Featuring Smart Light Control (SLC), Plan Semi-Apochromatic EIS infinity objectives, and a versatile range of head configurations, it is the ideal choice for demanding cytology, anatomopathology, and advanced life science applications.

Euromex Achios-X Observer는 인체공학 설계와 최첨단 광학 성능을 결합한 정립현미경입니다. SLC(Smart Light Control), Plan 반-아포 IOS 무한교정 대물렌즈, 다양한 헤드 구성으로 세포학, 해부병리, 형광 현미경 등에 최적화되어 있습니다.

Key Features

  • Smart Light Control (SLC) — auto-adjusts color temperature and intensity per objective
  • SLC — 대물렌즈별 색온도 및 광량 자동 조정
  • EWF 10x/22 mm wide-field eyepiece (Ø30 mm) for reduced stage travel
  • 22mm 광시야 접안렌즈로 표본 이동 최소화

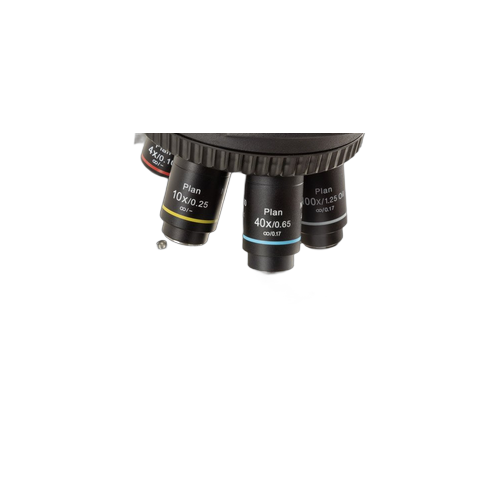

  • Infinity corrected 60 mm Plan Semi-Apochromatic EIS objectives
  • 무한교정 60mm Plan 반-아포 EIS 대물렌즈
  • NeoLED™ 3W transmitted light with adjustable color temperature
  • 색온도 조절 가능한 NeoLED™ 3W 투과조명
  • Ergonomic tilting head (0°–35°) option
  • 0°–35° 에르고노믹 틸팅 헤드 옵션

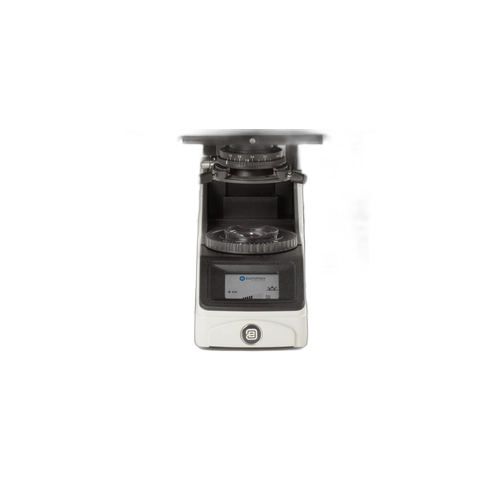

  • Rackless stage — no sharp edges, single-hand slide loading
  • 래크리스 스테이지 — 안전 설계, 한 손으로 슬라이드 장착
  • Fluorescence capable (LED fluorescence option)
  • 형광 관찰 가능 (LED 형광 옵션)
  • IVDR class A medical device models available
  • IVDR 클래스 A 의료기기 인증 모델 제공

Applications

  • Cytology and anatomopathology
  • 세포학 및 해부병리학
  • Advanced life science and biomedical research
  • 고급 생명과학·바이오메디컬 연구
  • Fluorescence and phase contrast applications
  • 형광 및 위상차 관찰

Models Overview

MODELS Bino Trino Ergo EWF 10x/22mm Plan 4/10/40x IOS Plan 100x IOS Plan Semi-Apo 4/10/40x IOS Plan Semi-Apo 100x IOS Plan Phase 10/20/40/100x IOS
AX.1052-PLi ● ● ●
AX.1053-PLi ● ● ●
AX.1152-PLi ● ● ● ●
AX.1153-PLi ● ● ● ●
AX.1158-PLi ● ● ● ●
AX.1052-APLi ● ● ●
AX.1053-APLi ● ● ●
AX.1152-APLi ● ● ● ●
AX.1153-APLi ● ● ● ●
AX.1158-APLi ● ● ● ●
AX.1152-PLPHi ● ● ●
AX.1153-PLPHi ● ● ●
AX.1158-PLPHi ● ● ●

Models Overview

MODELS Bino Trino Ergo EWF 10x/22mm Plan 4/10/40x IOS Plan 100x IOS Plan Semi-Apo 4/10/40x IOS Plan Semi-Apo 100x IOS Plan Phase 10/20/40/100x IOS
AX.1052-PLi ● ● ●
AX.1053-PLi ● ● ●
AX.1152-PLi ● ● ● ●
AX.1153-PLi ● ● ● ●
AX.1158-PLi ● ● ● ●
AX.1052-APLi ● ● ●
AX.1053-APLi ● ● ●
AX.1152-APLi ● ● ● ●
AX.1153-APLi ● ● ● ●
AX.1158-APLi ● ● ● ●
AX.1152-PLPHi ● ● ●
AX.1153-PLPHi ● ● ●
AX.1158-PLPHi ● ● ●

Models Overview

MODELS Bino Trino Ergo EWF 10x/22mm Plan 4/10/40x IOS Plan 100x IOS Plan Semi-Apo 4/10/40x IOS Plan Semi-Apo 100x IOS Plan Phase 10/20/40/100x IOS
AX.1052-PLi ● ● ●
AX.1053-PLi ● ● ●
AX.1152-PLi ● ● ● ●
AX.1153-PLi ● ● ● ●
AX.1158-PLi ● ● ● ●
AX.1052-APLi ● ● ●
AX.1053-APLi ● ● ●
AX.1152-APLi ● ● ● ●
AX.1153-APLi ● ● ● ●
AX.1158-APLi ● ● ● ●
AX.1152-PLPHi ● ● ●
AX.1153-PLPHi ● ● ●
AX.1158-PLPHi ● ● ●

Specifications

Parameter Specification
Eyepiece EWF 10x/22 mm, Ø30 mm
Objectives Plan Semi-Apo EIS IOS (60 mm), 4x/10x/S40x/S100x oil
Nosepiece Quintuple (optional sixtuple), ball-bearing
Illumination 3W NeoLED™ Köhler (adjustable color temp)
Heads Binocular / Trinocular / Ergonomic tilting (0°–35°) / Multi-head

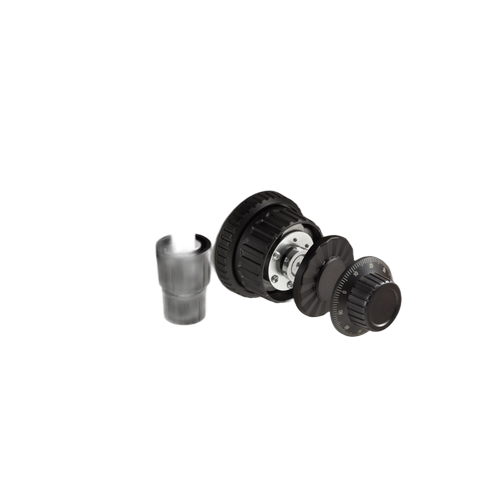

Focusing (fine) 0.2 mm/rotation, division 0.002 mm, range 30 mm
Warranty 10 years
