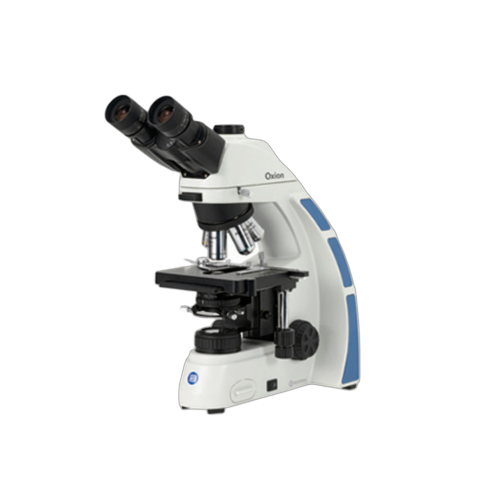

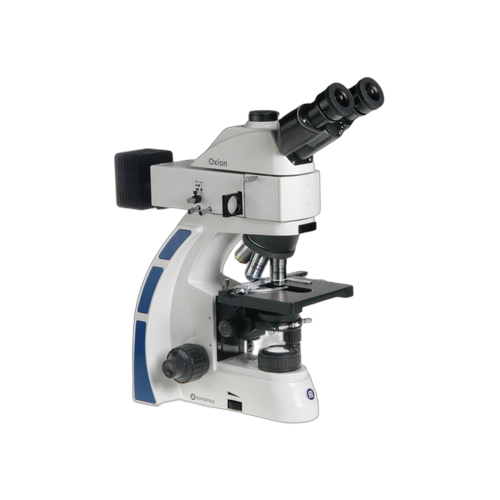

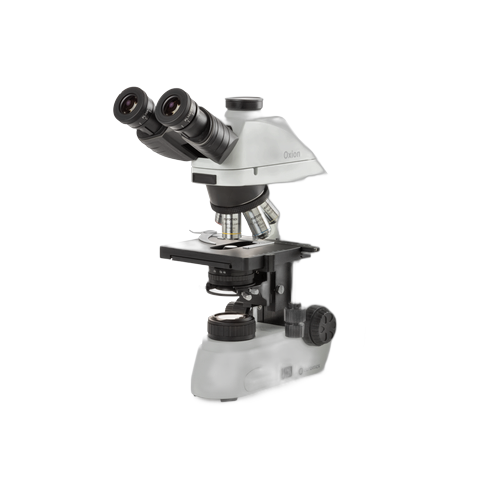

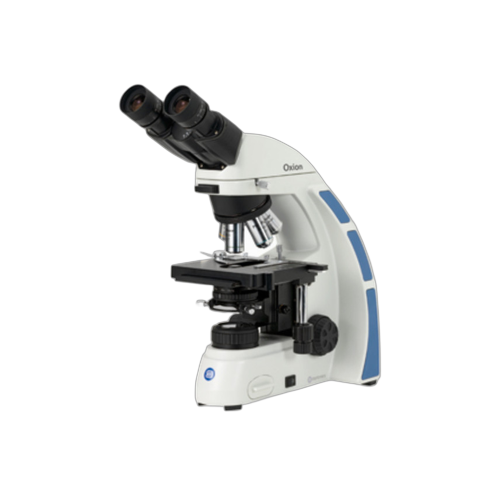

Euromex Oxion 생명과학 정립현미경 Life Science Upright Microscope
Robust life science upright microscope with NeoLED™ illumination and excellent price-performance ratio
NeoLED™ 탑재 생명과학용 고내구성 정립현미경 — 가격 대비 뛰어난 성능
Description
The Euromex Oxion series is purpose-built for life science professionals in university labs, research centers, routine medical applications, and veterinary medicine. Combining robust mechanical construction with excellent optical components and NeoLED™ illumination, the Oxion delivers outstanding price-performance for everyday use.
Euromex Oxion 시리즈는 대학 연구실, 연구 센터, 일상 의료 및 동물의학 전문가를 위해 설계된 생명과학용 정립현미경입니다. 견고한 기계적 구조와 우수한 광학 부품, NeoLED™ 조명을 결합하여 탁월한 가성비를 제공합니다.
Key Features
- NeoLED™ 3W Köhler illumination — high resolution, energy efficient
- NeoLED™ 3W Köhler 조명 — 고해상도, 에너지 효율
- Reversed quintuple nosepiece on ball-bearings
- 볼베어링 역전 5구 회전 노우즈피스
- 187 × 140 mm rackless mechanical stage with XY movement
- 187×140mm 래크리스 기계식 XY 스테이지
- Height-adjustable Abbe N.A. 1.25 condenser
- 높이 조절 가능한 Abbe N.A. 1.25 집광기
- Heated stage option (up to 50°C, PID controlled)
- 가열 스테이지 옵션 (최대 50°C, PID 제어)
- Phase contrast, polarization options available
- 위상차, 편광 옵션 지원
Applications
- University and research laboratory routines
- 대학교·연구소 일상 관찰
- Routine medical and clinical applications
- 일상 의료·임상 분석
- Veterinary medicine
- 동물의학
- Cell culture observation
- 세포 배양 관찰
Models Overview
| MODELS | Binocular | Trinocular | Plan 4/10/S40x IOS | Plan S100x oil | Plan Semi-Apo Fluarex 4/10/S40x IOS | Plan Semi-Apo Fluarex S100x oil IOS |
|---|---|---|---|---|---|---|
| OX.3030 | ● | ● | ● | |||
| OX.3035 | ● | ● | ● | |||
| OX.3065 | ● | ● | ● |
Models Overview
| MODELS | Binocular | Trinocular | Plan 4/10/S40x IOS | Plan S100x oil | Plan Semi-Apo Fluarex 4/10/S40x IOS | Plan Semi-Apo Fluarex S100x oil IOS |
|---|---|---|---|---|---|---|
| OX.3030 | ● | ● | ● | |||
| OX.3035 | ● | ● | ● | |||
| OX.3065 | ● | ● | ● |
Models Overview
| MODELS | Binocular | Trinocular | Plan 4/10/S40x IOS | Plan S100x oil | Plan Semi-Apo Fluarex 4/10/S40x IOS | Plan Semi-Apo Fluarex S100x IOS |
|---|---|---|---|---|---|---|
| OX.3030 | ● | ● | ● | |||
| OX.3035 | ● | ● | ● | |||
| OX.3065 | ● | ● | ● |
Specifications
| Parameter | Specification |
|---|---|
| Eyepiece | WF 10x/18 mm or EWF 10x/20 mm |
| Objectives | Plan 4x/10x/40x/100x oil (IOS infinity option) |
| Nosepiece | Reversed quintuple (ball-bearing) |
| Stage | 187×140 mm rackless + 76×50 mm XY |
| Condenser | Abbe N.A. 1.25, height adjustable |
| Illumination | 3W NeoLED™ Köhler (100–240 V) |
| Warranty | 10 years |
원본 링크: Euromex Oxion
