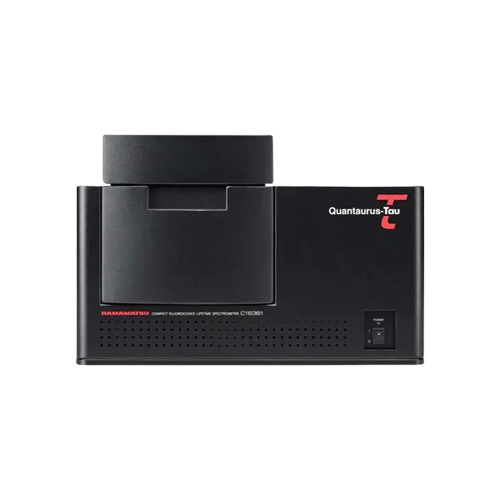

Hamamatsu Quantaurus-Tau C16361 형광수명 분광기 Fluorescence Lifetime Spectrometer
Compact spectrometer for fluorescence lifetime measurement from sub-ns to ms, results in 60 seconds.
나노초~밀리초 형광수명 측정용 소형 분광기, 60초 내 결과 도출.
Description
The Quantaurus-Tau is a compact system for measuring fluorescence lifetimes in the sub-nanosecond to millisecond range. Operation is simple, just set the sample into the sample chamber, and enter a few conditions on the measurement software to measure the fluorescence lifetime and PL spectrum in a short time with high precision. In a typical measurement, analysis results are obtained in a mere 60 seconds.
Quantaurus-Tau는 서브 나노초에서 밀리초 범위의 형광 수명을 측정하기 위한 컴팩트 시스템입니다. 조작이 간단하여 시료를 시료실에 넣고 측정 소프트웨어에 몇 가지 조건만 입력하면 짧은 시간 내에 높은 정밀도로 형광 수명과 PL 스펙트럼을 측정할 수 있습니다. 일반적인 측정 시, 단 60초 만에 분석 결과를 얻을 수 있습니다.
- Easy and quick measurements
Emission lifetime can be gotten easily and quickly only by putting the sample into sample box and setting the 4 measurement conditions.
- 7 excitation wavelengths
280 nm, 340 nm, 365 nm, 405 nm, 470 nm, 590 nm, and 630 nm.
- Analyzing different sample forms
Thin-film, solid, solutions, and powder.
- 2 selections of detector
Two types of detectors, standard and NIR type, are available according to the object to be measured.
- 쉽고 빠른 측정
시료를 샘플 박스에 넣고 4가지 측정 조건만 설정하면 발광 수명을 쉽고 빠르게 얻을 수 있습니다.
- 7가지 여기 파장
280 nm, 340 nm, 365 nm, 405 nm, 470 nm, 590 nm, 630 nm.
- 다양한 시료 형태 분석
박막, 고체, 용액 및 분말.
- 2가지 검출기 선택 가능
측정 대상에 따라 표준(Standard) 유형과 근적외선(NIR) 유형의 두 가지 검출기를 사용할 수 있습니다.
Applications
- Organic metal complex
- Fluorescent probe
- Perovskite PV material
- OLED material
- Quantum dot
- LED phosphor
- 유기 금속 착물
- 형광 프로브
- 페로브스카이트 태양전지(PV) 소재
- OLED(유기발광다이오드) 소재
- 양자점
- LED 형광체
Quantaurus-Tau operating instruction
Quantaurus-Tau can measure fluorescence lifetime and PL spectra with high accuracy in a short time by simply setting the sample in the sample chamber and entering a few instructions in the measurement software.
Specifications
| Type number | C16361-01 | C16361-02 |
|---|---|---|
| Detector type | Standard | NIR |
| Wavelength range | 300 nm to 800 nm | 380 nm to 1030 nm |
| Excitation light source | Seven types of LED light source (280 nm, 340 nm, 365 nm, 405 nm, 470 nm, 590 nm, 630 nm) | |
| Excitation light source switching | Software control | |
| Monochromator | Czerny-Turner monochromator | |
| Measurement time range | 4 ns to 10 s / full scale | |
| Time range for phosphorescence measurement | 200 µs to 10 s / full scale (option) | |
| Phosphorescence measurement | Phosphorescence excitation wavelength (280 nm, 340 nm, 365 nm, 405 nm, 442 nm, 470 nm, 589 nm, 632 nm, 1000 nm) | |
| Time axis channel | 512ch, 1024ch, 2048ch, 4096ch | |
| Total time resolution | < 1.0 ns FWHM (IRF with 590 nm LED) | |
| Analysis function | Fluorescence lifetime analysis (up to five components by exponential function fitting) and spectrum analysis | |
| Supported OS | Windows 11 Pro | |
