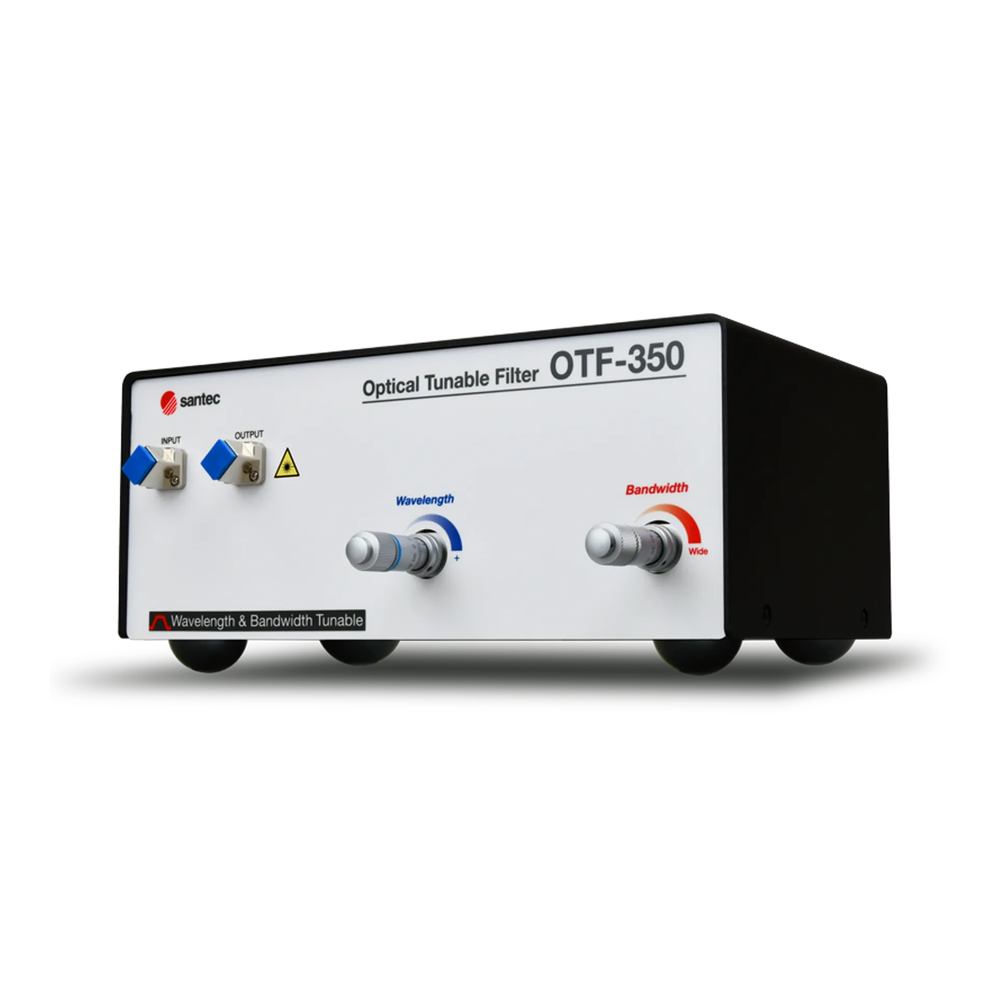

Name: Santec OTF-350 파장가변 필터 Tunable Filter
Brand: 01. Spectroscopy

Description

The OTF-350 is a manual tunable optical filter covering 1530 to 1610 nm with selectable bandwidth options (0.1–15 nm wide type, 0.2–10 nm normal type). With low insertion loss, high return loss (> 40 dB) and low PDL (< 0.25 dB), it is a cost-effective passive filtering solution for fiber optic applications.

OTF-350은 1530~1610 nm를 가변 대역폭 옵션(와이드 타입 0.1~15 nm, 일반 타입 0.2~10 nm)으로 커버하는 수동 파장가변 광 필터입니다. 낮은 삽입 손실, 높은 반사 손실(> 40 dB), 낮은 PDL(< 0.25 dB)로 광섬유 응용을 위한 경제적인 수동 필터링 솔루션입니다.

Key Features

Manual tuning over 1530–1610 nm
1530~1610 nm 수동 가변
Tuning range: 80 nm
가변 범위: 80 nm
Selectable bandwidth: 0.1–15 nm (wide type)
가변 대역폭: 0.1~15 nm (와이드 타입)
Low insertion loss: < 5 dB (typ. 3.5)
낮은 삽입 손실: < 5 dB (typ. 3.5)
High return loss: > 40 dB (typ. 45)
높은 반사 손실: > 40 dB (typ. 45)
Low PDL: < 0.25 dB
낮은 PDL: < 0.25 dB

Applications

Tunable bandpass filtering
가변 대역통과 필터링
ASE noise suppression
ASE 잡음 억제
Wavelength selection in fiber systems
광섬유 시스템 파장 선택
Laboratory optical filtering
실험실 광 필터링

Specifications

Parameter	Specification
Wavelength Range	1530–1610 nm
Tuning Range	80 nm
Bandwidth @-3dB	Normal: 0.2–10 nm / Wide: 0.1–15 nm
Group Velocity Dispersion	< ±1 ps/nm (typ. < ±0.2)
Maximum Input Power	Normal: +25 dBm / Wide: +25 dBm
Insertion Loss	< 5 dB (typ. 0.5 nm)
Insertion Loss Uniformity (typ.)	< 0.5 dB
Return Loss	> 40 dB (typ. > 45)
Crosstalk (typ.)	> 50 dB
PDL (typ.)	< 0.25 dB (SMF)
Optical Fiber	SMF or PMF
Optical Connector	FC or SC (SPC or APC)
Dimensions (W×D×H)	250 × 151 × 113 mm
Weight	3.5 kg
