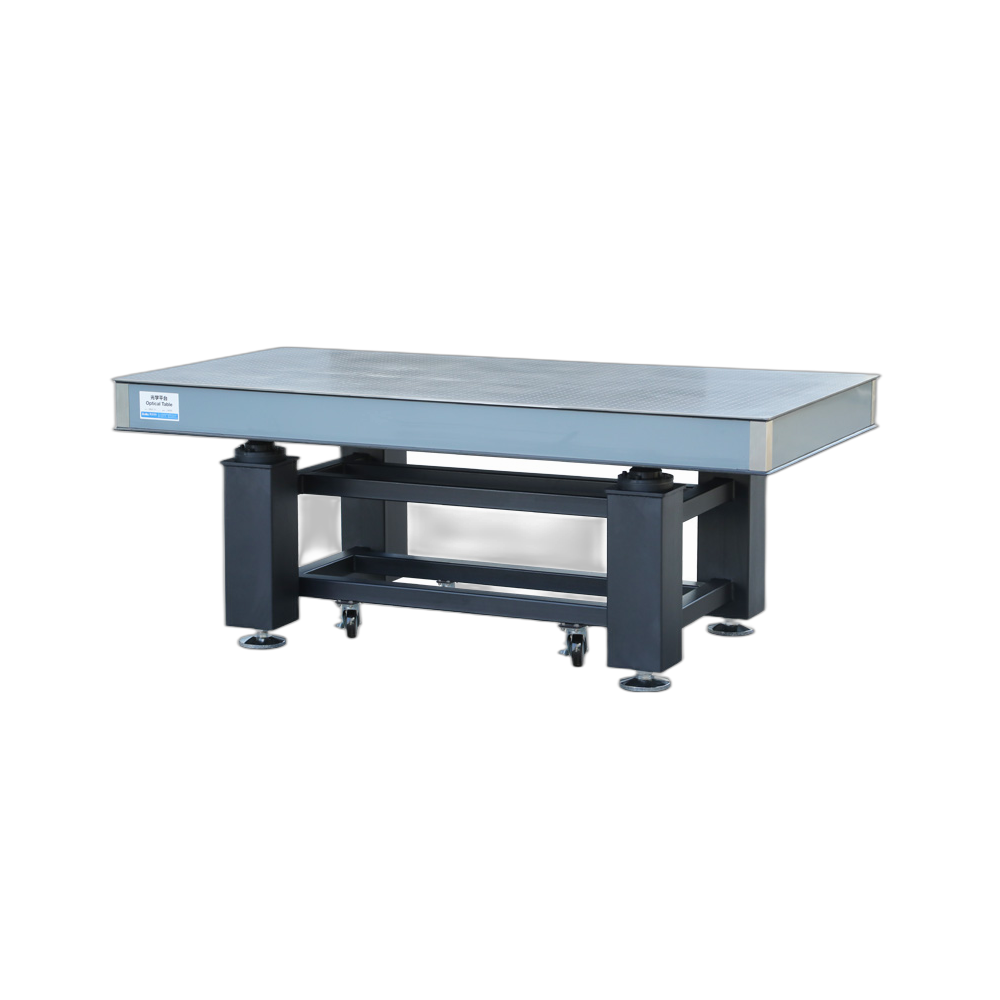

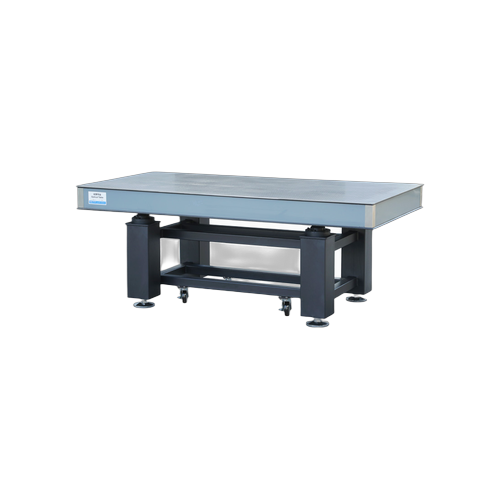

Zolix DRB 제진 광학 테이블 Damping Vibration Isolation Optical Table
DRB series damping vibration isolation optical table with breadboard surface
브레드보드 표면 DRB 시리즈 제진 광학 테이블
Description
Specification ： Resonant Frequency：＜7~20Hz Surface Flatness：0.1mm/600mm 600mm Working Surface：4-6mm thick SUS430(1Cr17) stainless steel Bottom Skin：4-6mm thick carbon Steel Thickness：50/100/150/200mm， Total Height( table top and supports):800mm，Height Adjustement：-10~+15mm Mounting Hole Grid:：25mm 25mm Mounting Hole Borders：37.5mm Mounting Holes：M6 Weight：50mm thickness：110Kg/m 2 100mm thickness：120Kg/m 2 150mm thickness：130Kg/m 2 200mm thickness：140Kg/m 2 Details：
규격: 공진 주파수 7~20Hz 이하, 표면 평탄도 0.1mm/600mm, 작업 표면 4~6mm SUS430 스테인리스 스틸, 두께 50/100/150/200mm.
Specifications
Accessories：
|
Model |
Size(mm) |
Thickness(mm) |
Tabletop Weight(Kg) |
Table Feet Area(mm) |
Supports Load(Kg) |
Notes |
|
DRB06-06 |
600×600×800 |
50 |
40 |
80×80 |
500 |
4 legs |
|
DRB09-06 |
900×600×800 |
50 |
59 |
80×80 |
500 |
4 legs |
|
DRB10-08 |
1000×800×800 |
50 |
88 |
80×80 |
500 |
4 legs |
|
DRB12-06 |
1200×600×800 |
50 |
79 |
80×80 |
500 |
4 legs |
|
DRB12-08 |
1200×800×800 |
50 |
106 |
80×80 |
500 |
4 legs |
|
DRB12-09 |
1200×900×800 |
50 |
119 |
80×80 |
500 |
4 legs |
|
DRB12-12 |
1200×1200×800 |
50 |
158 |
80×80 |
500 |
4 legs |
|
DRB15-09 |
1500×900×800 |
100 |
162 |
120×120 |
800 |
4 legs |
|
DRB15-10 |
1500×1000×800 |
100 |
180 |
120×120 |
800 |
4 legs |
|
DRB15-12 |
1500×1200×800 |
100 |
216 |
120×120 |
800 |
4 legs |
|
DRB15-15 |
1500×1500×800 |
100 |
270 |
120×120 |
800 |
4 legs |
|
DRB18-09 |
1800×900×800 |
100 |
194 |
120×120 |
800 |
4 legs |
|
DRB18-10 |
1800×1000×800 |
100 |
216 |
120×120 |
800 |
4 legs |
|
DRB18-12 |
1800×1200×800 |
100 |
259 |
120×120 |
800 |
4 legs |
|
DRB18-15 |
1800×1500×800 |
100 |
324 |
120×120 |
800 |
4 legs |
|
DRB20-10 |
2000×1000×800 |
150 |
260 |
160×160 |
1000 |
4 legs |
|
DRB20-12 |
2000×1200×800 |
150 |
312 |
160×160 |
1000 |
4 legs |
|
DRB20-15 |
2000×1500×800 |
150 |
390 |
160×160 |
1000 |
4 legs |
|
DRB24-12 |
2400×1200×800 |
150 |
374 |
160×160 |
1000 |
4 legs |
|
DRB24-15 |
2400×1500×800 |
150 |
468 |
160×160 |
1000 |
4 legs |
|
DRB24-18 |
2400×1800×800 |
150 |
562 |
160×160 |
1000 |
4 legs |
|
DRB30-12 |
3000×1200×800 |
200 |
504 |
160×160 |
1500 |
6 legs |
|
DRB30-15 |
3000×1500×800 |
200 |
630 |
160×160 |
1500 |
6 legs |
|
DRB35-12 |
3500×1200×800 |
200 |
588 |
160×160 |
1500 |
6 legs |
|
DRB35-15 |
3500×1500×800 |
200 |
735 |
160×160 |
1500 |
6 legs |
Drawing：
