Name: Zolix KA 고정밀 전동 선형 스테이지 | High-Precision Motorized Stage
Brand: Optics, Fibers & Beam Delivery

Description

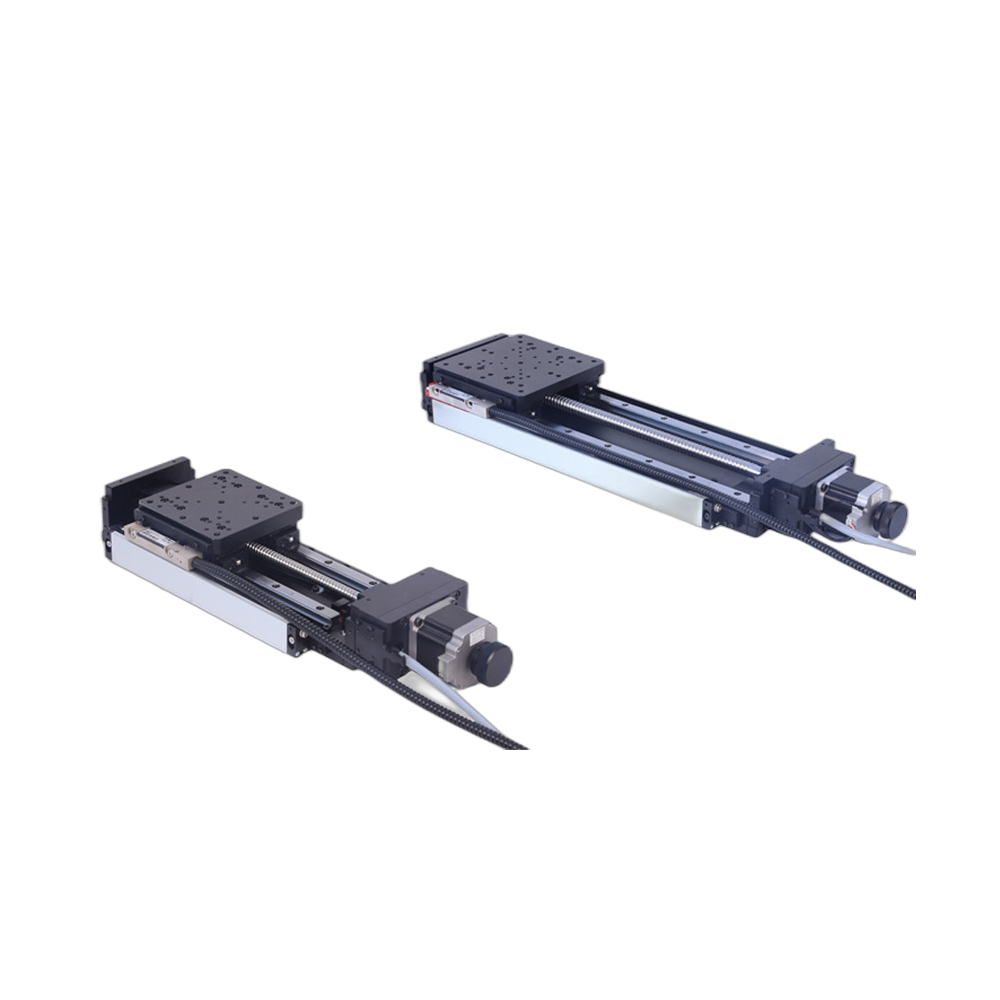

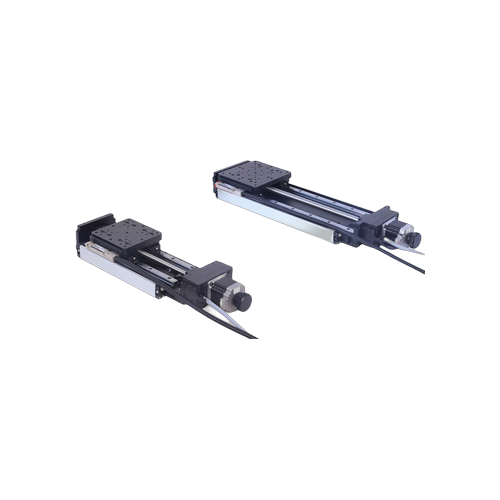

KA series high-precise motorized linear stages Description: KA series products are designed as a group of middle-size and middle-travel-range high precise motorized stages. The base plates in this series employ high-rigidity U-type structure to ensure this series could be suitable for the operations in the circumstances of heavy load, high rigidity and multi-dimension combinations. A stainless-steel dustproof cover is optional to protect all inner parts of stages from particles and dust in real operation environments, which could guarantee better stability, durability and the capability to keep a long-term accuracy. KA series products employ precise-grade ball screws, linear-slider guides and high-performance Shaft coupling units. This kind of design offers good adaptabilities for being used in accurate operation scenarios with relative complex environments. An external grating ruler is used with Zolix controllers MC600 or TMC-USB to ensure 1 m closed-cycle resolution. The other key specifications of this series are also same or similar as those best ones worldwide. Main characteristics: Fine machining for U-type aluminum alloy base plates, which are treated as black anodic-oxidation. High rigidity and nice appearance. External imported grating ruler to ensure 1 m closed-cycle resolution Precise-grade linear-slider guides are used to guarantee high load capability and high motion accuracy Stainless steel dustproof covers are optional Two-phase stepping motors standard, servo motors optional Naming rules:

KA 시리즈 고정밀 전동 선형 스테이지. KA 시리즈는 중형 크기·중간 행정의 고정밀 전동 스테이지로, 높은 강성의 U형 베이스 플레이트 구조로 고부하·고강성·다축 조합 운용 환경에 적합합니다.

Naming Rules

KA	High precision, ball screw, linear-slider guide, aluminum alloy and closed-cycle
050–1000	Travel range (mm) — 050: 50 mm … 1000: 1000 mm
ST242	Two-phase 42 stepping motor (default: two-phase 57)
ASP1 / ASY2	AC servo — Panasonic 100W / Yaskawa 200W
P1 / Y2	Installation plate + shaft coupling for servo motor
-C	With protection cover
-ER	Grating ruler on right side (default: left)
-SL / -SR	External sensor — Left side / Right side

Specifications

Parameter	Standard						Extended
Parameter	KA050	KA100	KA150	KA200	KA300	KA400	KA600	KA800	KA1000
Mechanical Specifications
Table dimensions (mm)	120×120				150×150		200×200
Travel range (mm)	50	100	150	200	300	400	600	800	1000
Transmission	Precise ball screws Φ12×4						Precise ball screws Φ25×5
Guides	Linear-slider guides
Materials	Black anodic-oxidation aluminum-alloy
Weight (kg)	6.6	6.8	7.2	7.6	9.9	10.9	23	26.8	30
Shaft coupling (mm)	30-6.35-8						32-8-12
Accuracy Specifications
Closed-cycle resolution (μm)	1
Open-cycle 20-subdivision resolution (μm)	1						1.25
Highest speed (mm/s)	40						50
Single-direction positioning accuracy (μm)	≤30						≤40
Repositioning accuracy (μm)	≤±3						≤±5
Static clearance (μm)	≤3
Backlash clearance (μm)	≤5
Static parallelism (mm)	≤0.1
Motion linearity (μm)	≤10						≤10 μm/100mm
Motion parallelism (μm)	≤15						≤10 μm/100mm
Yaw (“)	≤30						≤40
Pitch (“)	≤35						≤55
Electrical Specifications
Motor	Two-phase 57 stepping motor, 1.8°
Motor model	Shinano, SST-59D3206						Shinano, SST59D5301
Working current (A)	2.8						3.0
Torque (N·m)	1.44						1.57
Grating ruler brand	Fagor, MX or MKX series
Stepping driver (optional)	Moons, SR4
Plugs	DB9 (pin)
Cable	High flexible (Helukabel, Germany), 0.2 m
Position-limit sensors	2×PM-L25 (SUNX, Japan)
Origin-point sensors	1×PM-L25 (SUNX, Japan)
Sensor voltage (V)	DC 5~24V ±10%
Operating Load
Horizontal (kg)	30						50
Invert (kg)	15						25
