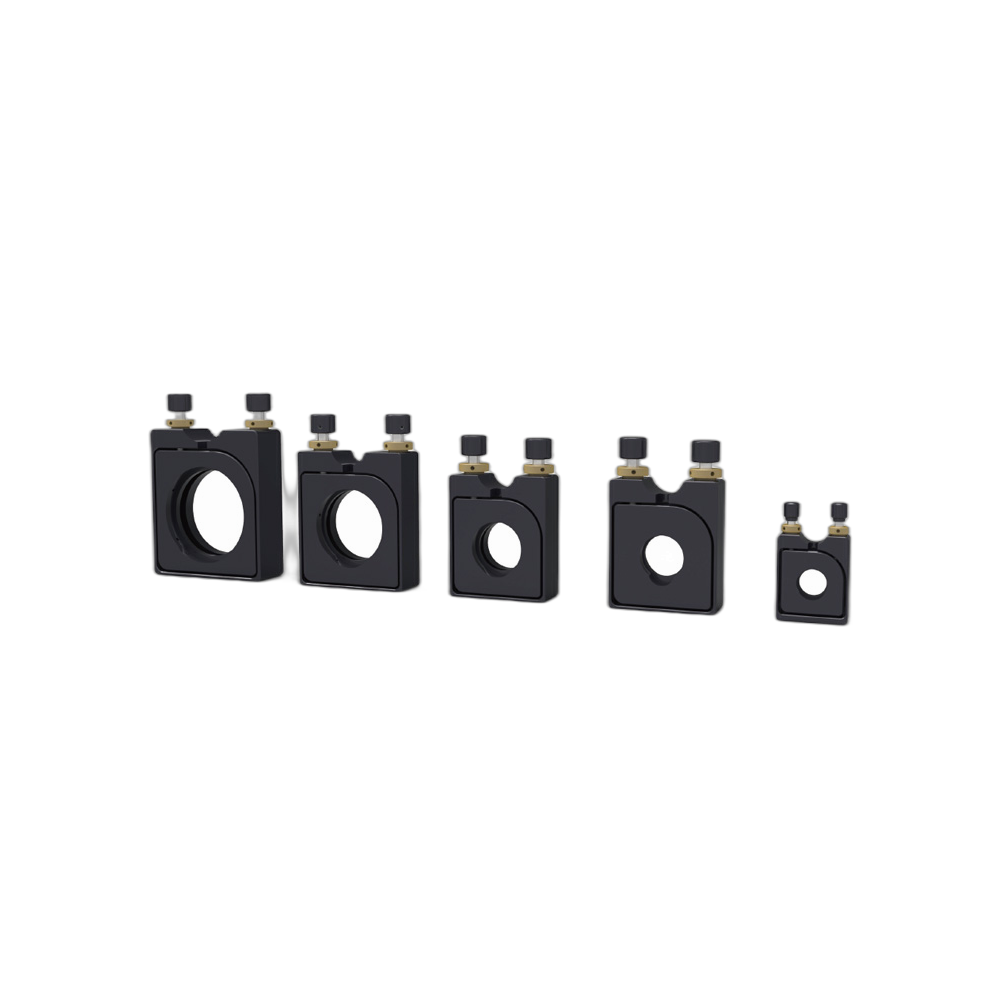

Zolix NMV 수직 구동 키네마틱 마운트 NMV Vertical Drive Kinematic Mount
NMV series vertical drive kinematic mirror mount for beam steering
빔 조향용 NMV 시리즈 수직 구동 키네마틱 마운트
Description
Features: High-quality materials: The main body is made of high-quality aluminium alloy,and the surface treated by black anodic oxidation. Advanced structure： ① With adjestment thumb wheel on the top,during the tuning, also avoid the finger block the optical path. ② Less thickness saving the space ③ Fine calulated 3 pulling spring s pulling force, more stable sctucture and uniform in pulling force High sensitivity: 2 pcs 0.2 mm pitch super-fine thread pairs for 2D adjustment,for higher sensitivity Universal mounting holes: M4 , M6 screw holes NMV series Stability Test Data
주요 특징: 고품질 알루미늄 합금 본체, 검정 아노다이징 처리. 상단 조절 나사 탑재, 탄성 압착링으로 렌즈 고정(변형 방지). 조절 감도 향상 설계.
Specifications
|
Model |
NMV12.7 |
NMV20 |
NMV25.4 |
NMV38.1 |
NMV50.8 |
|
Optic Size (mm) |
φ12.5/φ12.7 |
φ20 |
φ25/φ25.4 |
φ38.1 |
φ50/φ50.8 |
|
Optics Thickness (mm) |
2~5 |
3~6 |
|||
|
Adjustment Angle Range (°) |
±3 |
||||
|
Clear Aperture (mm) |
φ11.5 |
φ19 |
φ23.5 |
φ36.5 |
φ47 |
|
Optic Center Height (mm) |
17 |
25 |
25 |
32 |
35 |
|
Thickness(mm) |
13 |
20 |
20 |
20 |
22 |
|
One Round of Screw Drive vs Angle Adjusted (°)
|
Pitch：≈0.55 Yaw：≈0.57
|
Pitch：≈0.35 Yaw：≈0.34
|
Pitch：≈0.35 Yaw：≈0.34
|
Pitch：0.31 Yaw：≈0.26
|
Pitch：≈0.28 Yaw：≈0.22
|
|
Main Body Material and Treatment |
Aluminum alloy, black anodized |
||||
|
Number of Pulling Spring |
3 |
||||
|
Mounting Hole |
M4 |
M6，2个M4 |
|||
|
Weight(g) |
40 |
160 |
150 |
180 |
220 |
