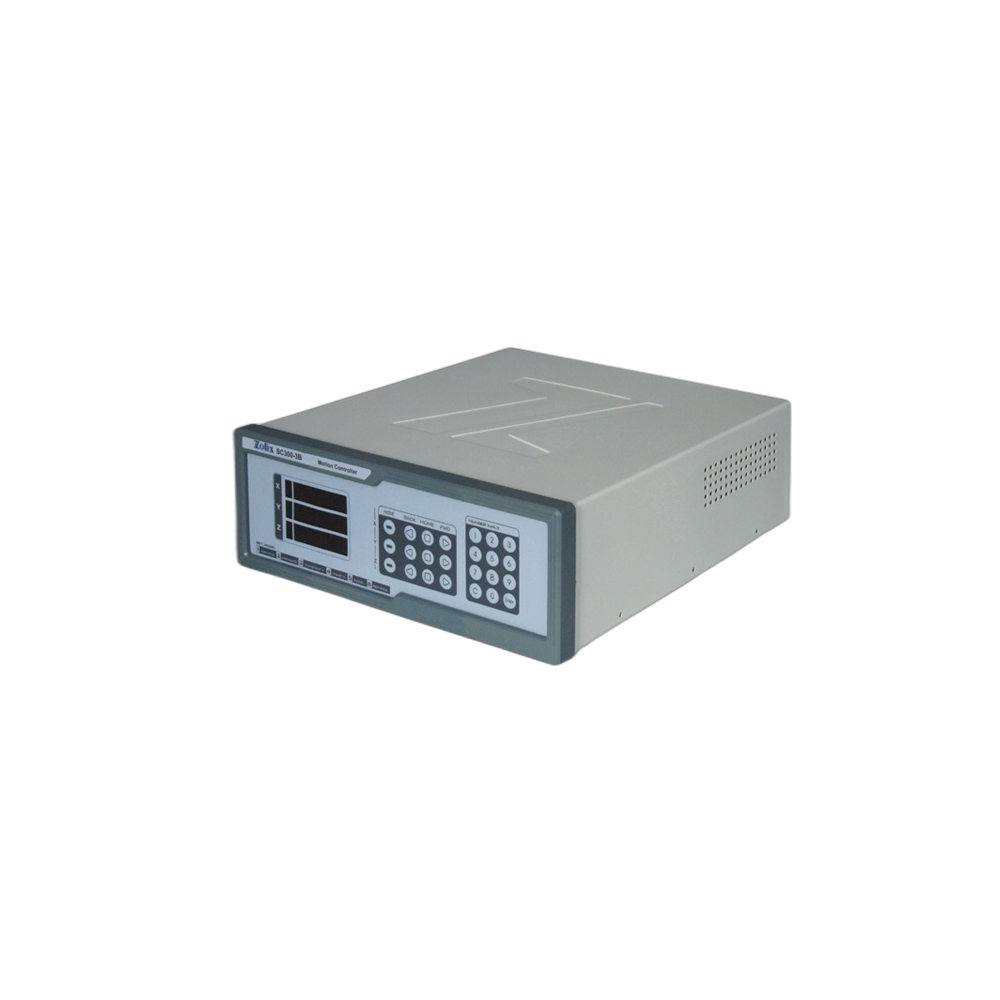

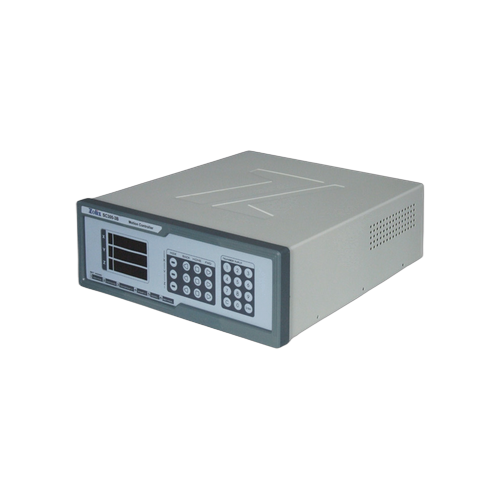

Zolix SC 스테이지 컨트롤러 SC Series Stage Controller
SC series compact stage controller with USB/RS232 interface
USB/RS232 인터페이스 SC 시리즈 스테이지 컨트롤러
Description
SC series products are motorized stage controllers for 1-3 axis point-to-point integrated position controlling. Stepping motor controlling cards are built-in and display panel is also provided. RS232 and USB ports are standard (not be used at same time) and can controlled with Zolix Motion Manager software. If customer requires, communication protocol or OCX controls can be provided. Main specifications
SC 시리즈는 1~3축 점대점 통합 위치 제어를 위한 전동 스테이지 컨트롤러로, 스테핑 모터 컨트롤 카드 내장 및 디스플레이 패널 제공. RS232 인터페이스 지원.
|
Model number |
SC300-xA |
SC300-xB |
|
Type of motors controlled |
20、28、35 or 42two-phase stepping motors |
42 or 57two-phase stepping motors |
|
Current range of drivers |
0.3A,0.5A,0.7A,1.0A,1.3A,1.6A,1.9A,2.2A |
1.0A,1.5A,1.8A,2.2A,3.0A,3.5A,4.0A,4.5A |
|
Pulse frequency range of output from controllers |
200～20KHz |
|
|
Voltage of power supply |
AC187V～242V |
|
|
Quantity of axis controlled |
1-3 axis |
|
|
Quantity range of pulse output |
-999999 ～ 9999999 Pulse units |
|
|
Fine-division of drivers |
2,4,8,16,32,64,128 |
2,4,8,16,32,64,128,256 |
|
Selectable pulse speed |
400pps ～ 18Kpps |
|
|
Type of acceleration and deceleration |
Triangle or Trapezoid |
|
|
Type of display |
8-bit LED |
|
|
Type of IOs |
RS232 or USB |
|
|
Dimensions (mm) |
380×350×120 |
|
|
Working temperature range (°C) |
-10～+45 |
|
|
Environment relative humidity range |
45~85%RH |
|
|
Weight (Kg) |
Max：6 |
|
