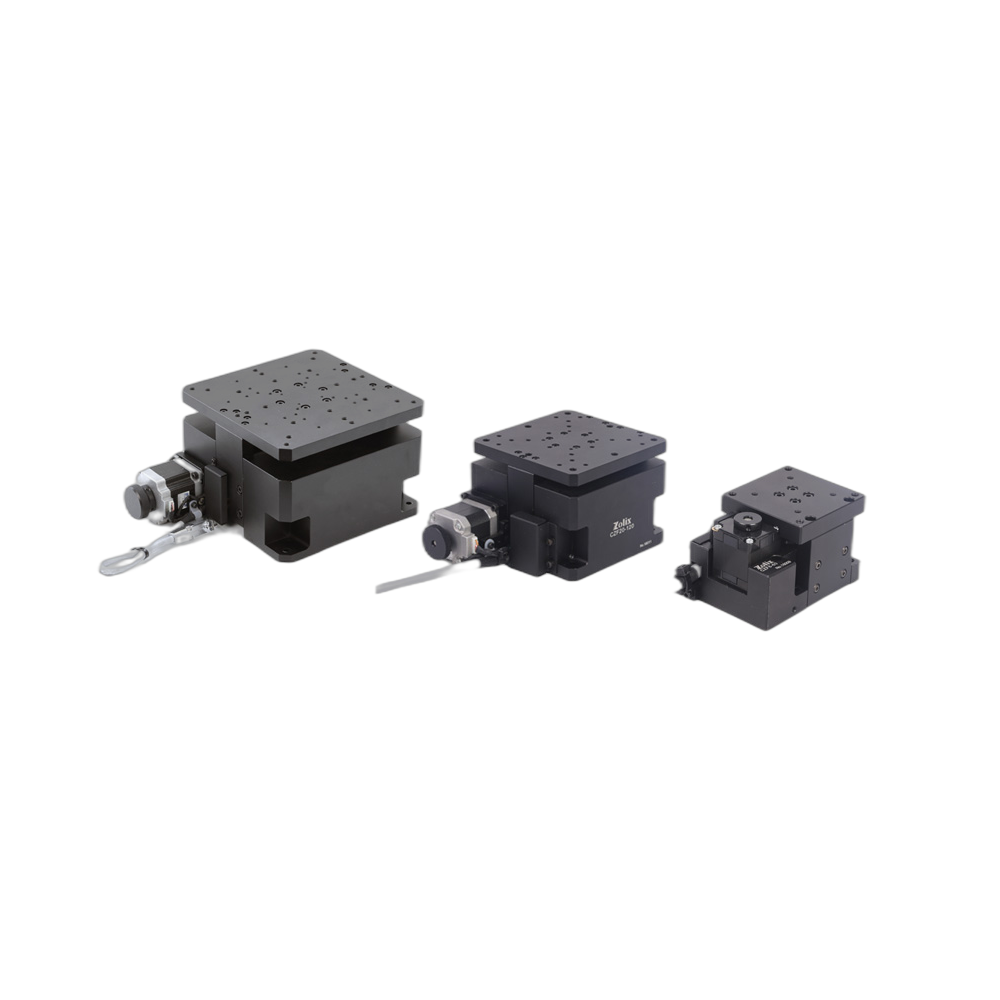

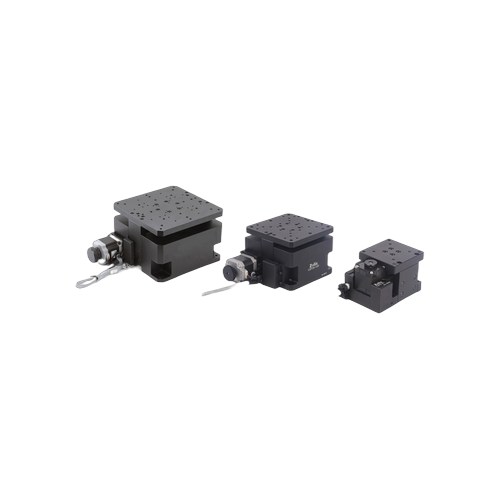

Zolix TBZF 전동 수직 스테이지 TBZF Motorized Vertical Stage
TBZF series motorized vertical stage for Z-axis positioning
Z축 포지셔닝용 TBZF 전동 수직 스테이지
Description
Zolix s TBZF series motorized vertical-motion stages are very suitable for usages in applications with requirements of middle or large size but high repetition rates. Good appearance and good wear-resistance are contributed by hard black anodic-oxidation aluminum-alloy body materials. Fine-grinding techniques for guide surface treatment is critical for providing customers higher motion accuracy. 1mm-or-2mm-lead-range grinding screws whose nuts are made of wear-resistant tin bronze constitute main parts of driving systems, working with standard two-phase stepping motors, to ensure higher resolution and positioning accuracy. Main characteristics: Fine-grinding screws whose nuts are made of wear-resistant tin bronze provide higher durability Wedge-type structure design to ensure higher rigidity and higher loading capability Smooth running comes from employing linear-slider guides Naming rules:
Zolix TBZF 시리즈 전동 수직 스테이지는 중·대형 크기이면서 높은 반복 속도가 요구되는 응용 분야에 적합합니다. 우수한 외관과 내마모성을 갖추고 있습니다.
Specifications
|
Model number |
TBZF10-120 |
TBZF30-200 |
||||
|
Mechanical specifications |
Travel range(mm) |
10 |
30 |
|||
|
Table dimensions(mm) |
120×120 |
200×200 |
||||
|
Transmission mechanism |
Grinding screw Ф8×1 |
Grinding screw Ф12×2 |
||||
|
Guides (guiding mechanism) |
linear-slider guides |
|||||
|
Main body materials and surface treatments |
Black anodic-oxidation aluminum-alloy |
|||||
|
Weight (Kg) |
2.5 |
5 |
||||
|
Accuracy specifications |
Resolution (step/half-step) (µm) |
1.82/0.91 |
6.49/3.245 |
|||
|
20-fine-subdivision resolution (µm) |
0.091 |
0.325 |
||||
|
Highest speed (mm/s) * |
6 |
6.5 |
||||
|
Repositioning accuracy (µm) |
≤±2.5 |
|||||
|
Backlash clearance (µm) |
≤5 |
|||||
|
Static parallelism (mm) |
≤0.1 |
|||||
|
Electrical specifications |
Motor and its stepping angle (°) |
Two-phase 42 stepping motor, 1.8 |
Two-phase 57 stepping motor, 1.8 |
|||
|
Model number of motor |
Shinano,SST43D2126-10 |
Shinano, SST-59D3206 |
||||
|
Working current (A) |
1.7 |
2.8 |
||||
|
Torque of motor (N·m) |
0.456 |
1.44 |
||||
|
Model number of stepping driver (optional) |
Moons, SR2 |
Moons, SR4 |
||||
|
Type of plugs for stages |
1*DB9 (pin) |
|||||
|
Type of connection cables |
High flexible cables (Helukabel, Germany) |
|||||
|
Length of cables for stages(m) |
0.2 |
|||||
|
Position-limit sensors (built-in) |
2*GP1S09xHCPI (Sharp, Japan) |
|||||
|
Origin-point sensors (built-in) |
1*GP1S09xHCPI (Sharp, Japan) |
|||||
|
Voltage of power supply for sensors (V) |
DC5~24V ±10% |
|||||
|
Output for control |
collector of NPN open-circuit output |
|||||
|
Status of output ports |
output ON when sensor is blocked |
|||||
|
Operating load |
Horizontal direction (Kg) |
10 |
20 |
|||
* Highest speed is measured with the conditions of zero-load and motors being worked at 600rpm
