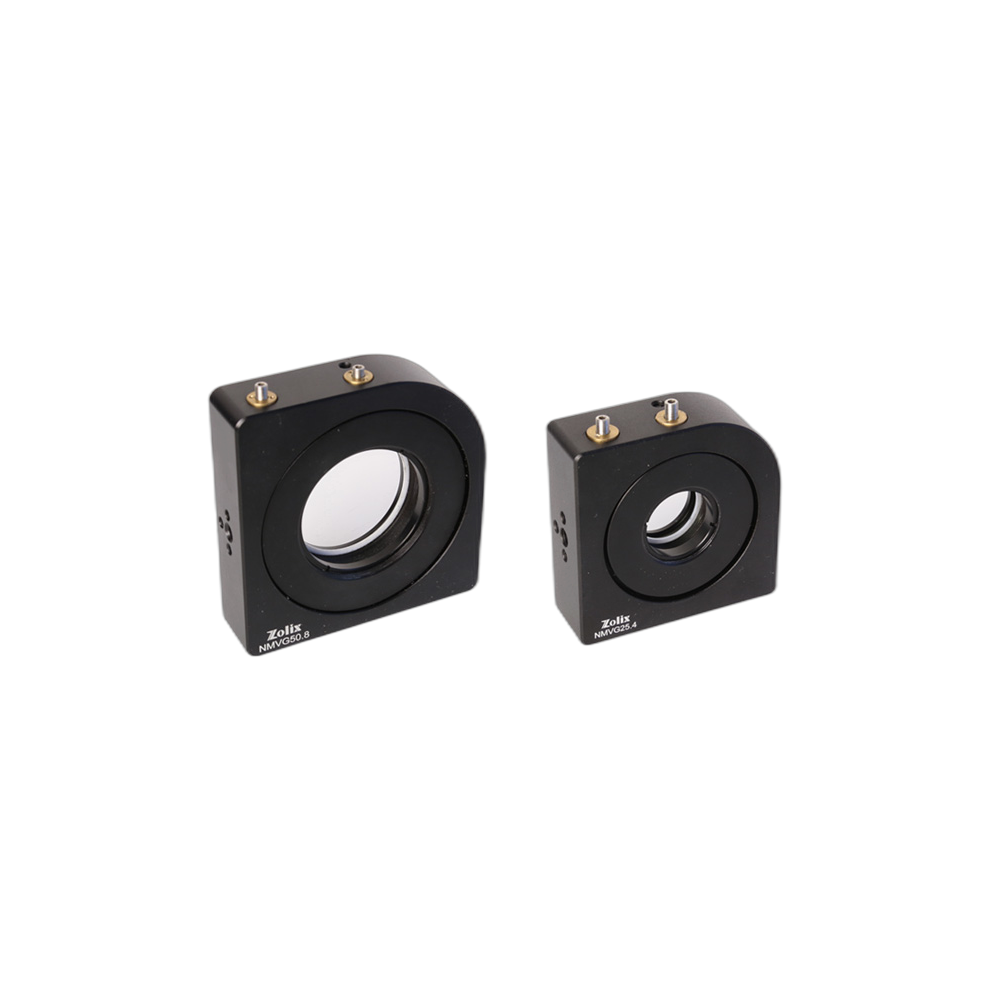

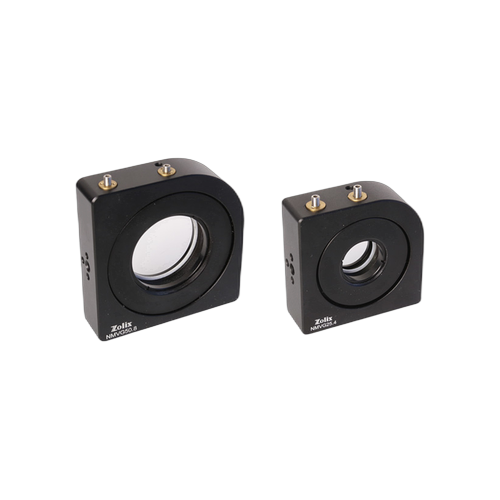

Zolix NMVG 수직 구동 키네마틱 마운트 NMVG Vertical Drive Kinematic Mount

Description

Features: High-quality materials:The main body is made of high-quality aluminium alloy,and the surface treated by black anodic oxidation. Advanced structure： No adjestment thumb wheel saving more space, you can keep the optics more closer. Suit for ultra compact optical layout Easy for tuning: Available for using the Hexagon wrench or thumb wheel High stable: M4*3 screw with copper sleeve ,fine calulated pulling spring moderate pulling force Universial: Can mount with lens, mirror ,beamsplitter etc. saving the space,avoid the finger block the optical path, can be use in the laser chamber Selection Table:

주요 특징: 고품질 알루미늄 합금 본체, 검정 아노다이징 처리. 엄지 휠 없는 슬림 설계로 공간 절약. 상단 조절 나사, 탄성 압착링으로 렌즈 고정. 다양한 렌즈 크기 지원.

Model	NMV12.7	NMV20	NMV25.4	NMV38.1	NMV50.8
Optic Size (mm)	φ12.5/φ12.7	φ20	φ25/φ25.4	φ38.1	φ50/φ50.8
Optics Thickness (mm)	2~5	3~6
Adjustment Angle Range (°)	±3
Clear Aperture (mm)	φ11.5	φ19	φ23.5	φ36.5	φ47
Optic Center Height (mm)	17	25	25	32	35
Overall Thickness (mm)	13	20	20	20	22
One Round of Screw Drive vs Angle Adjusted (°)	Tilt：≈0.55 Tilt：≈0.57	Tilt：≈0.35 Tilt：≈0.34	Tilt：≈0.35 Tilt：≈0.34	Tilt：0.31 Tilt：0.26	Tilt：≈0.28 Tilt：≈0.22
Main Body Material and Treatment	aluminium alloy, surface treated by black anodic oxidation.
Number of Pulling Spring	3
Locking Mechanics	Yes
Mounting Hole	M4	M6，2pcsM4
Net Weight (g)	40	160	150	180	220
