Zolix PMT 광전자 증배관 Photomultiplier Tube

Description

Features ■ Deeply Cooled（-60℃@25℃Ambient Temperature） ■ Peak QE up to 95%@800nm ■ Greater band-pass capture in 1 single shot（30.7mm wide sensor） ■ High resolution，pixel size is 15um ■ Ultra-low dark current and read noise Specifications

주요 특징: 깊은 냉각(-60℃@25℃ 주변 온도), 최대 QE 95%(@800nm), 넓은 대역 포착(30.7mm 와이드 센서), 고해상도 15μm 픽셀, 초저 암전류.

Specifications

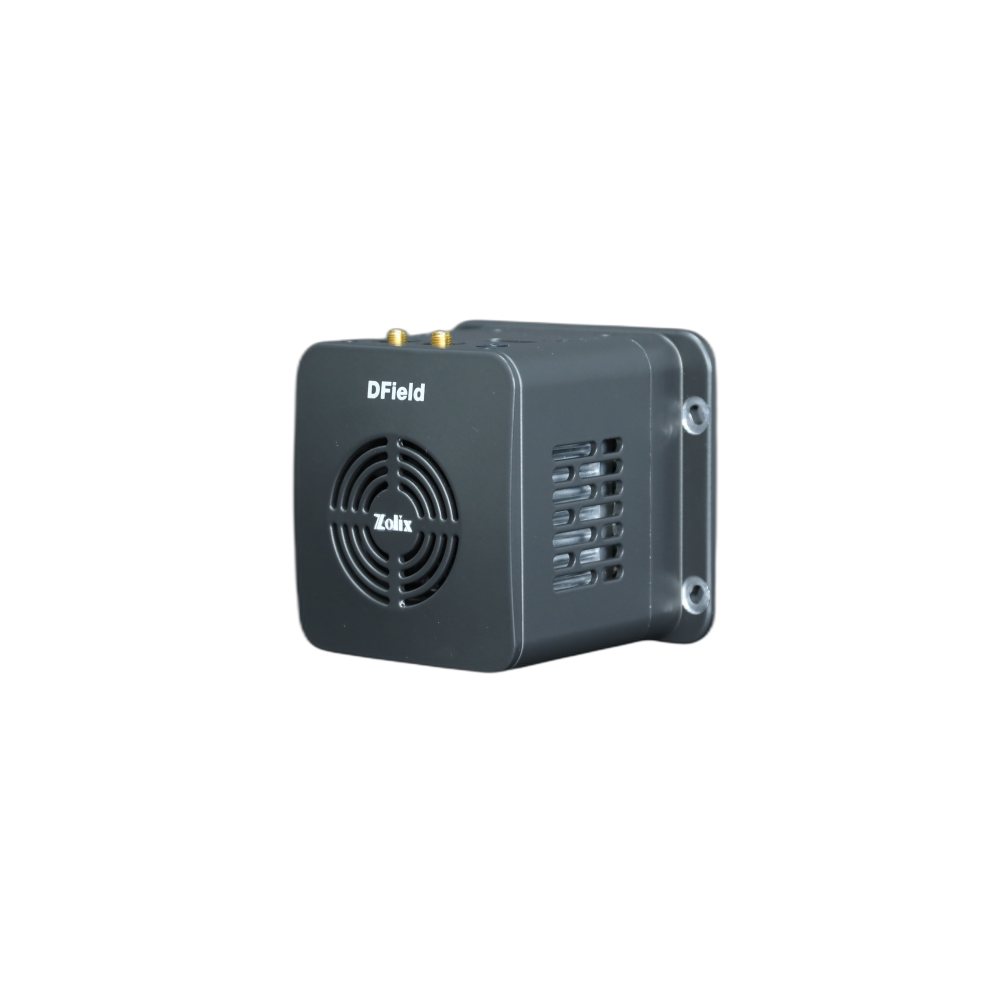

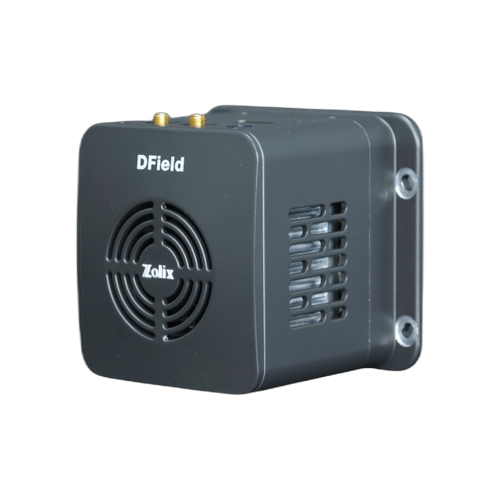

Parameter	DField-VS-A4
Active pixels (W×H)	2048 × 264
Pixel size (W×H)	15 × 15 μm
Image area (W×H)	30.7 × 3.96 mm
Read noise @500 kHz	<8e⁻; <5e⁻ (typical)
Peak QE	95% @ 800 nm
Active pixel well depth	>90 ke⁻
Dark current	<0.1 e⁻/pixel/s
Power supply	<50W, 12V DC
Maximum integration time	60 min
Trigger mode	External or internal trigger, TTL
Communication port	USB 2.0
Operating temperature	-20°C ~ 55°C
Storage temperature	-40°C ~ 70°C
Digitization	16 bits

Dimensions

---
