Name: Zolix 태양전지 측정 시스템 | Solar Cell Testing System
Brand: 01. Spectroscopy

Description

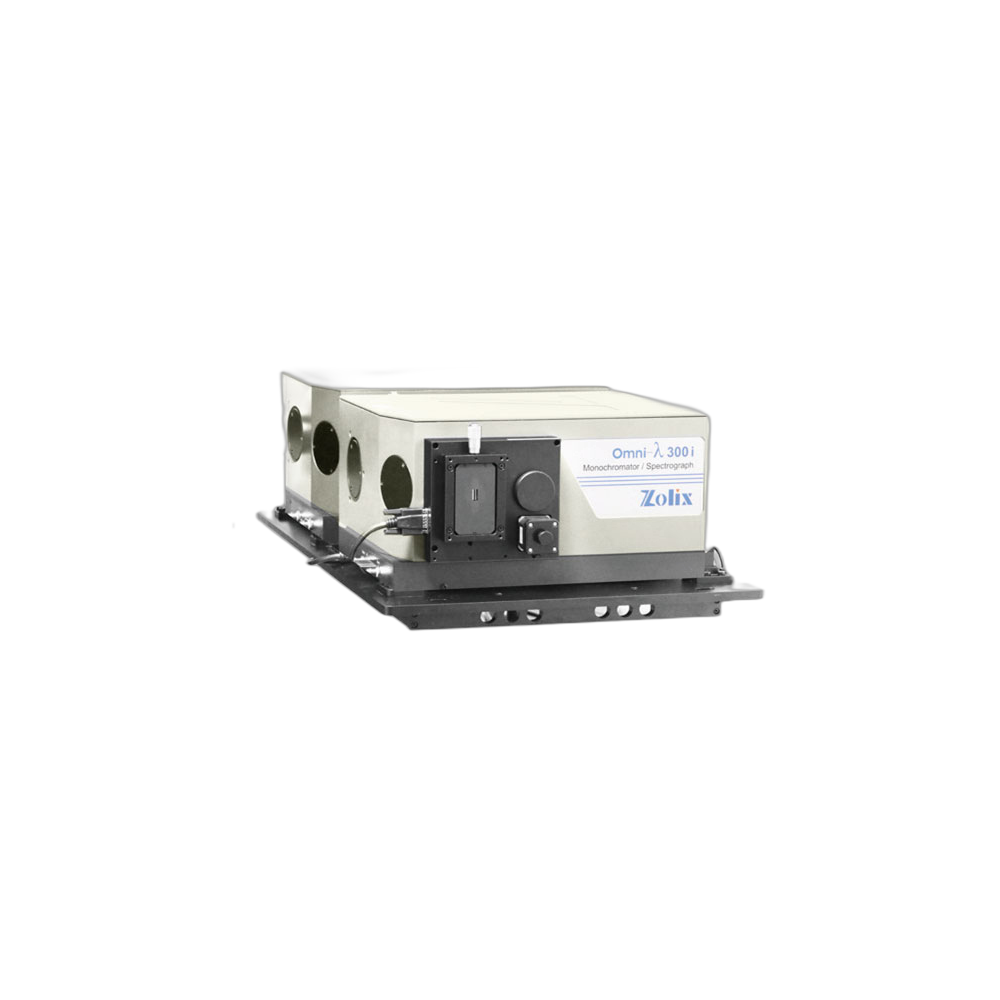

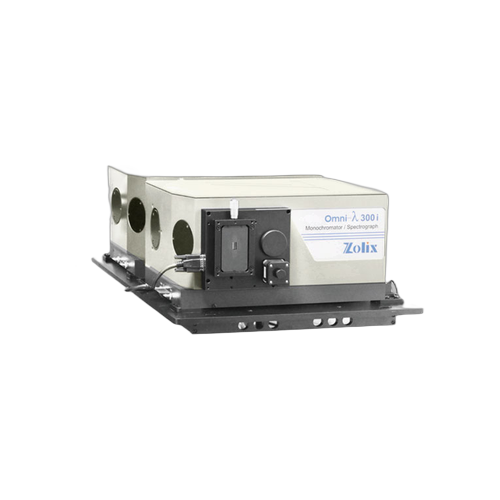

The Double Monochromators/Spectrographs include two monochromators which are with fine alignment. Double Monochromator can operate as either an additive or subtractive dispersion mode. As the additive dispersion mode, the double monochromator/ spectrograph spectral resolution double boost, suitable for high resolution measurement. As the subtractive dispersion mode, the double monochromator/spectrograph stray light can be reduced effectively, suitable for weaker signal detection, such as Raman spectra measurement. Omni- 180Di double monochromator Omni- 180Di is a all-in-one subtractive dispersion mode double monochromator. With the design and optical path adjustment, only the dispersion light converge at the exit slit for output, effectively reducing stray light. Obtaining purer monochromatic light, Omni- 180Di is used to meet the needs of week signal testing, such as Raman spectroscopy and photodetector spectral responsivity calibration. Features ■ Subtractive dispersion mode double monochromator. ■ Outstanding stray light rejection, less 10-9 ■ All-in-one design, convenient for transportation and installation. ■ USB 2.0 interface, controlled by software ■ UV-VIS-NIR wide spectral range Application ■ Tunable light source: Integrated with broad band light source, Omni- 180Di can output purer monochromatic light for more accurate test. ■ Raman spectra measurement: When collecting the Raman scatting light, Omni- 180Di can be used as a narrow band filter to eliminate the excitation laser s effect efficiently for measuring the low shift Raman spectra. ■ Professional detector spectral responsivity calibration: Omni- 180Di can reduce calibration errors, especially in ultraviolet wavelength. Specification Dispersion measured with 1200g/mm grating @ 435.8nm Resolution measured with 1200g/mm @ 435.8nm, 10um slit width and 4mm slit height Omni- 180Di Drawing

이중 단색화 장치/분광기는 정밀 정렬된 두 개의 단색화 장치를 포함합니다. 가산 분산 또는 감산 분산 모드로 동작하며, 가산 모드에서는 분해능이 두 배로 향상됩니다.
