Description

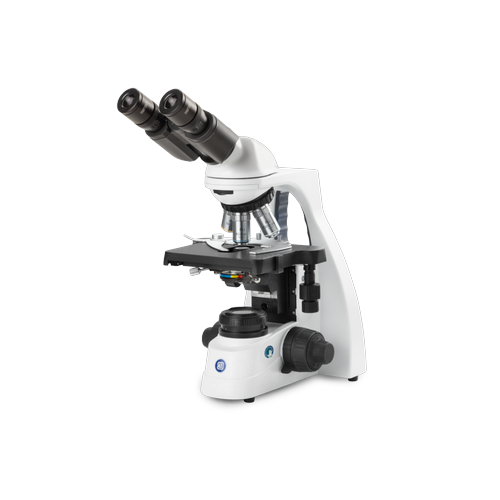

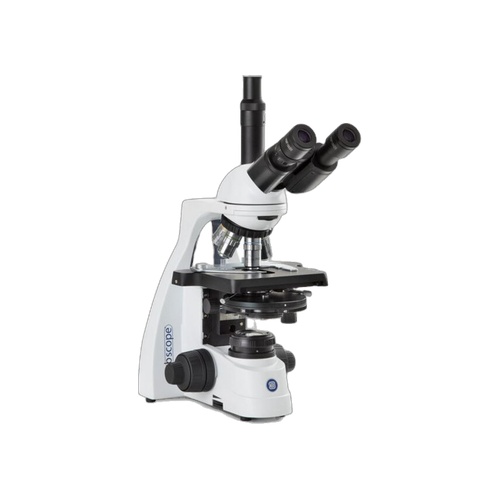

The Euromex bScope series is a well-equipped, versatile upright microscope intensively used in secondary schools, universities, small laboratories, and veterinary applications. Its ergonomic design and robust build make it ideal for extended use, while NeoLED™ illumination provides superior resolution for bright field and phase contrast microscopy.
Euromex bScope 시리즈는 대학교, 소형 연구소, 동물병원에서 집중적으로 사용되는 다목적 정립현미경입니다. 인체공학적 설계와 견고한 구조로 장시간 사용에 적합하며, NeoLED™ 조명으로 밝시야 및 위상차 현미경에서 뛰어난 해상도를 제공합니다.
Key Features
- HWF 10x/20 mm eyepieces for comfortable observation
- HWF 10x/20mm 접안렌즈로 편안한 관찰
- NeoLED™ 3W illumination — high-resolution, energy-efficient
- NeoLED™ 3W 조명 — 고해상도, 에너지 효율

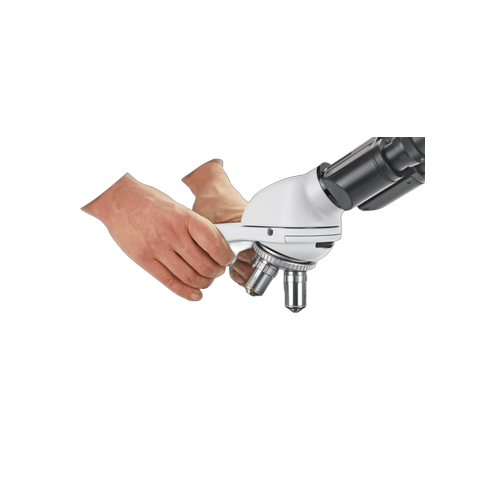

- Reversed ball-bearing quadruple or quintuple nosepiece
- 볼베어링 역전 4구/5구 노우즈피스
- Bright field and phase contrast configurations
- 밝시야 및 위상차 구성
- Ergonomic, robust design for long working sessions
- 장시간 사용을 위한 에르고노믹 견고 설계
- Medical device class I certified
- 의료기기 클래스 I 인증
Applications
- University teaching and research laboratories
- 대학 강의·연구 실험실
- Small research labs and clinical use
- 소형 연구소·임상 사용
- Veterinary medicine
- 동물의학
Models (Standard)
| MODELS |

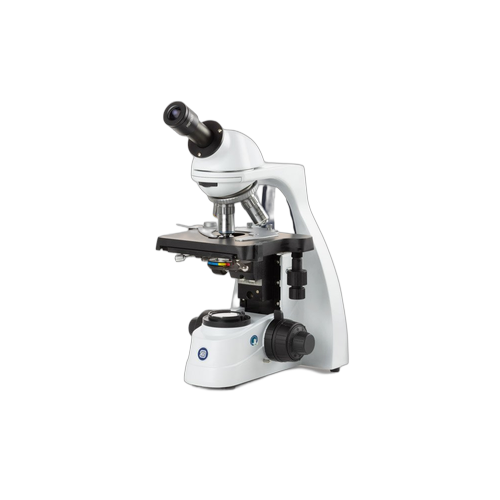

Mono |
Bino |

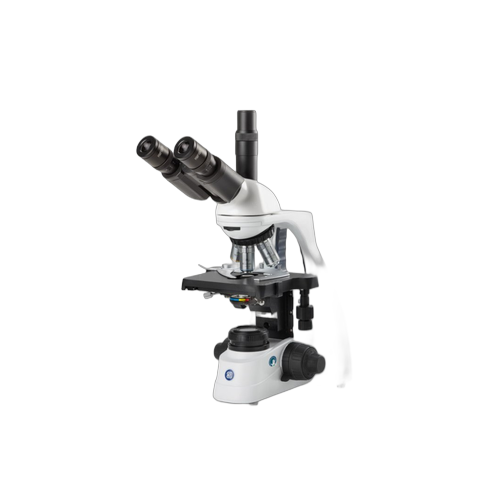

Trino |
HWF 10x/20mm |
4N E-Plan |
4N Plan IOS |
5N E-Plan IOS |
5N Plan IOS |
Köhler NeoLED |
NeoLED |

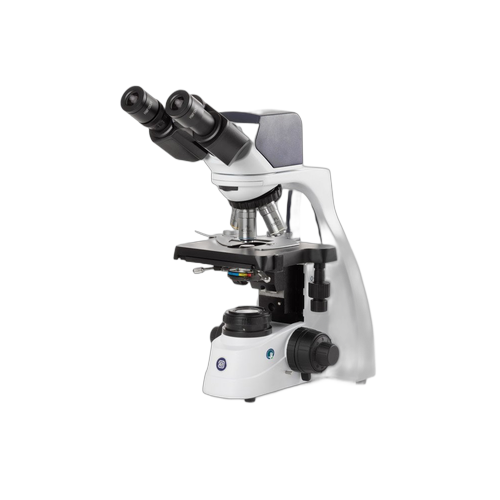

Ergo head |
| BS.1151-EPL |
● |
|
|
● |
● |
|
|
|
|
● |
|
| BS.1152-EPL |
|
● |
|
● |
● |
|
|
|
|
● |
|
| BS.1153-EPL |
|
|
● |
● |
● |
|
|
|
|
● |
|
| BS.1152-EPLi |
|
● |
|
● |
|
|
● |
|
● |
|
● |
| BS.1153-EPLi |
|
|
● |
● |
|
|
● |
|
● |
|
● |
| BS.1152-PLi |
|
● |
|
● |
|
|
|
● |
● |
|
● |
| BS.1153-PLi |
|
|
● |
● |
|
|
|
● |
● |
|
● |
| BS.1152-PLi/4N |
|
● |
|
● |
|
● |
|
|
● |
|
● |
| BS.1153-PLi/4N |
|
|
● |
● |
|
● |
|
|
● |
|
● |

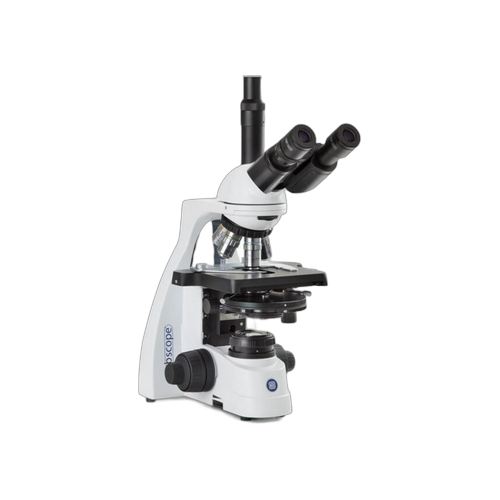

Models (Phase Contrast)
| MODELS |
Binocular |
Trinocular |
HWF 10x/20mm |
Plan Phase IOS |
Rackless stage |
Köhler NeoLED |
| BS.1152-PLPHi |
● |
|
● |
● |
● |
● |
| BS.1153-PLPHi |
|
● |
● |
● |
● |
● |
Models — Standard NeoLED
| MODELS |
Mono |
Bino |
Trino |
HWF 10x/20mm |
4N E-Plan |
4N Plan IOS |
5N E-Plan IOS |
5N Plan IOS |
Köhler NeoLED |
NeoLED |
Ergo head |
| BS.1151-EPL |
● |
|
|
● |
● |
|
|
|
|
● |
|
| BS.1152-EPL |
|
● |
|
● |
● |
|
|
|
|
● |
|
| BS.1153-EPL |
|
|
● |
● |
● |
|
|
|
|
● |
|
| BS.1152-EPLi |
|
● |
|
● |
|
|
● |
|
● |
|
● |
| BS.1153-EPLi |
|
|
● |
● |
|
|
● |
|
● |
|
● |
| BS.1152-PLi |
|
● |
|
● |
|
|
|
● |
● |
|
● |
| BS.1153-PLi |
|
|
● |
● |
|
|
|
● |
● |
|
● |
| BS.1152-PLi/4N |
|
● |
|
● |
|
● |
|
|
● |
|
● |
| BS.1153-PLi/4N |
|
|
● |
● |
|
● |
|
|
● |
|
● |
Models — Phase Contrast IOS
| MODELS |
Bino |
Trino |
HWF 10x/20mm |
Plan Phase IOS 10/20/40/100x |
Rackless stage |
Köhler NeoLED |
| BS.1152-PLPHi |
● |
|
● |
● |
● |
● |
| BS.1153-PLPHi |
|
● |
● |
● |
● |
● |
Models — Trinocular (Photo)
| MODELS |
Bino |
Trino |
HWF 10x/20mm |
E-Plan IOS |
Plan IOS |
Köhler NeoLED |
Ergo head |
| BS.1154-EPLi |
|
● |
● |
● |
|
● |
|
| BS.1157-PLi |
|
● |
● |
|
● |
● |
|
| BS.1157-PLi/E |
|
● |
● |
|
● |
● |
● |
Models — Fluorescence
| MODELS |
Trino |
HWF 10x/22mm |
Plan PLi 4/10/S40/S100x |
Plan Fluarex 4/10/S40/S100x |
| BS.3153-PLi |
● |
● |
● |
|
| BS.3153-PLFi |
● |
● |
|
● |
Models — Standard NeoLED
| MODELS |
Mono |
Bino |
Trino |
HWF 10x/20mm |
4N E-Plan |
4N Plan IOS |
5N E-Plan IOS |
5N Plan IOS |
Köhler NeoLED |
NeoLED |
Ergo head |
| BS.1151-EPL |
● |
|
|
● |
● |
|
|
|
|
● |
|
| BS.1152-EPL |
|
● |
|
● |
● |
|
|
|
|
● |
|
| BS.1153-EPL |
|
|
● |
● |
● |
|
|
|
|
● |
|
| BS.1152-EPLi |
|
● |
|
● |
|
|
● |
|
● |
|
● |
| BS.1153-EPLi |
|
|
● |
● |
|
|
● |
|
● |
|
● |
| BS.1152-PLi |
|
● |
|
● |
|
|
|
● |
● |
|
● |
| BS.1153-PLi |
|
|
● |
● |
|
|
|
● |
● |
|
● |
| BS.1152-PLi/4N |
|
● |
|
● |
|
● |
|
|
● |
|
● |
| BS.1153-PLi/4N |
|
|
● |
● |
|
● |
|
|
● |
|
● |
Models — Phase Contrast IOS
| MODELS |
Bino |
Trino |
HWF 10x/20mm |
Plan Phase IOS 10/20/40/100x |
Rackless stage |
Köhler NeoLED |
| BS.1152-PLPHi |
● |
|
● |
● |
● |
● |
| BS.1153-PLPHi |
|
● |
● |
● |
● |
● |
Models — Trinocular (Photo port)
| MODELS |
Trino |
HWF 10x/20mm |
E-Plan IOS 4/10/S40/S100x |
Plan IOS 4/10/S40/S100x |
Köhler NeoLED |
Ergo head |
| BS.1154-EPLi |
● |
● |
● |
|
● |
|
| BS.1157-PLi |
● |
● |
|
● |
● |
|
| BS.1157-PLi/E |
● |
● |
|
● |
● |
● |
Models — Fluorescence
| MODELS |
Trino |
HWF 10x/22mm |
Plan PLi 4/10/S40/S100x |
Plan Fluarex PLFi 4/10/S40/S100x |
| BS.3153-PLi |
● |
● |
● |
|
| BS.3153-PLFi |
● |
● |
|
● |
Specifications
| Parameter |
Specification |
| Eyepiece |
HWF 10x/20 mm |
| Objectives |
Plan 4x/10x/S40x/S100x or Plan IOS (infinity) |
| Nosepiece |
Quadruple or quintuple reversed (ball-bearing) |
| Illumination |
3W NeoLED™ (100–240 V) |
| Phase Contrast |
Optional (Plan Phase IOS 10x/20x/40x/100x) |
| Fluorescence |
Optional (Plan Fluarex IOS objectives) |
| Warranty |
10 years |
원본 링크: Euromex bScope
