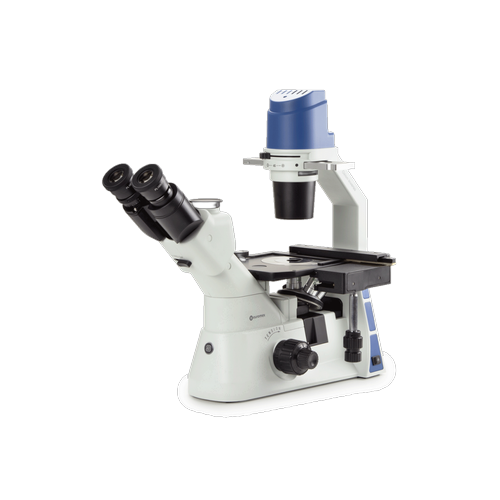

Euromex Oxion Inverso 생명과학 도립현미경 Life Science Inverted Microscope

Life science inverted microscope for cell culture observation with phase contrast and LED illumination

세포 배양 관찰용 위상차·LED 조명 탑재 생명과학 도립현미경

Category: Tags: , , , , , , Brand:

Description

The Euromex Oxion Inverso is a life science inverted microscope designed for observation of living cells in culture flasks, Petri dishes, and multi-well plates. With phase contrast capability and bright LED illumination, it provides reliable imaging for cell biology and microbiology applications.

Euromex Oxion Inverso는 배양 플라스크, 페트리 디시, 멀티웰 플레이트의 살아있는 세포를 관찰하기 위한 생명과학용 도립현미경입니다. 위상차 기능과 밝은 LED 조명으로 세포생물학·미생물학 분야에서 신뢰할 수 있는 이미징을 제공합니다.

Key Features

  • Inverted design for culture vessel observation
  • 배양 용기 관찰을 위한 도립 설계
  • Phase contrast capability
  • 위상차 기능
  • 5W LED transmitted illumination
  • 5W LED 투과 조명
  • Long working distance objectives
  • 장 작동거리 대물렌즈
  • Binocular and trinocular configurations
  • 쌍안 및 삼안 구성 선택 가능

Applications

  • Cell culture monitoring
  • 세포 배양 모니터링
  • Microbiology and cell biology
  • 미생물학·세포생물학
  • Biotechnology laboratory use
  • 바이오테크놀로지 실험실

Models Overview

MODELS LWD Plan 10/20/40x LWD Plan Phase 10/20/40x LWD Plan Fluarex 10/20/40x Plan Fluarex+Phase 3-pos rail 4-pos rail Mech. stage ICSI
OX.2003-PL ●
OX.2053-PL ● ●
OX.2003-PLPH ●
OX.2053-PLPH ● ●
OX.2053-PLPH-ICSI ● ● ●

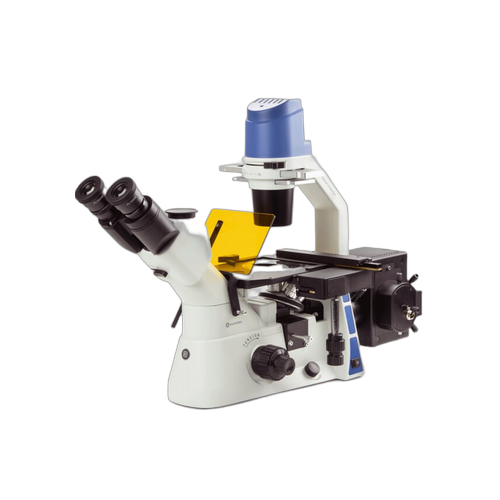

OX.2253-PLF ● ● ●
OX.2453-PLF ● ● ●
OX.2253-PLPHF ● ● ●
OX.2453-PLPHF ● ● ●

Models Overview

MODELS LWD Plan 10/20/40x LWD Plan Phase 10/20/40x LWD Plan Fluarex 10/20/40x LWD Plan Fluarex+Phase 10/20/40x 3-pos rail (BF,B,G) 4-pos rail (BF,B,G,UV) Mech. stage ICSI
OX.2003-PL ●
OX.2053-PL ● ●
OX.2003-PLPH ●
OX.2053-PLPH ● ●
OX.2053-PLPH-ICSI ● ● ●
OX.2253-PLF ● ● ●
OX.2453-PLF ● ● ●
OX.2253-PLPHF ● ● ●
OX.2453-PLPHF ● ● ●

Models Overview

MODELS LWD Plan 10/20/40x LWD Plan Phase 10/20/40x LWD Plan Fluarex 10/20/40x Plan Fluarex+Phase 10/20/40x 3-pos rail (BF,B,G) 4-pos rail (BF,B,G,UV) Mech. stage ICSI
OX.2003-PL ●
OX.2053-PL ● ●
OX.2003-PLPH ●
OX.2053-PLPH ● ●
OX.2053-PLPH-ICSI ● ● ●
OX.2253-PLF ● ● ●
OX.2453-PLF ● ● ●
OX.2253-PLPHF ● ● ●
OX.2453-PLPHF ● ● ●

Specifications

Parameter Specification
Type Inverted (도립)
Illumination 5W LED transmitted (100–240 V)
Phase Contrast Included (IOS infinity plan phase objectives)
Magnification 40x–400x (phase), brightfield options
Warranty 10 years

원본 링크: Euromex Oxion Inverso
