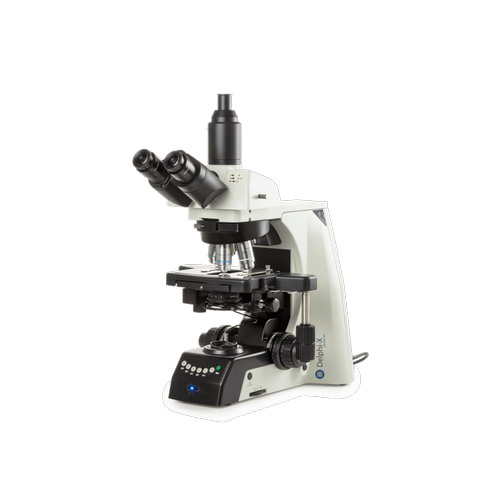

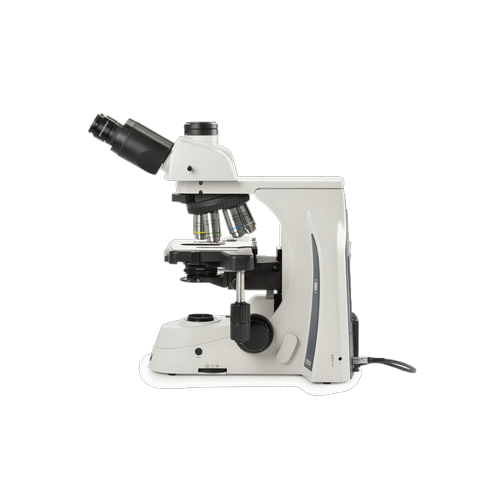

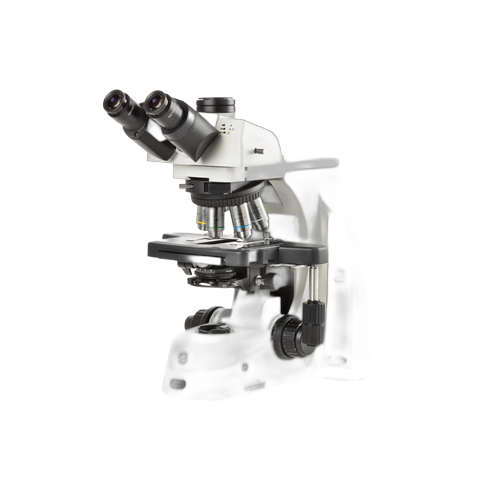

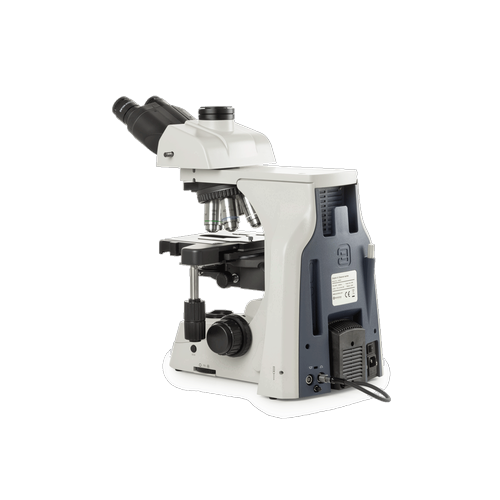

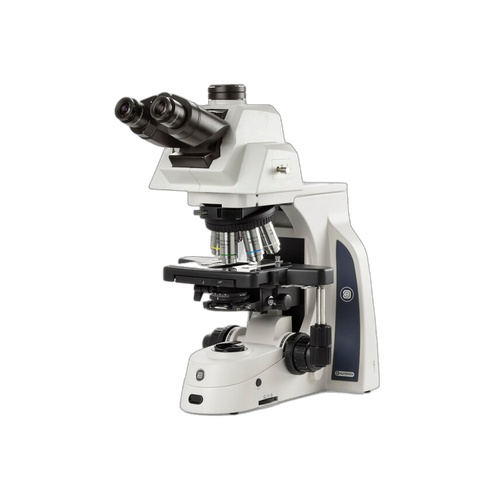

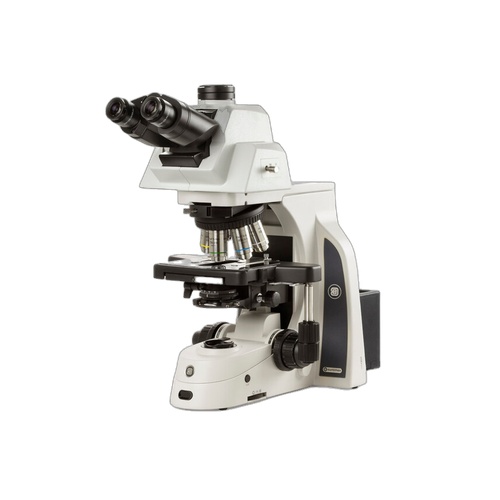

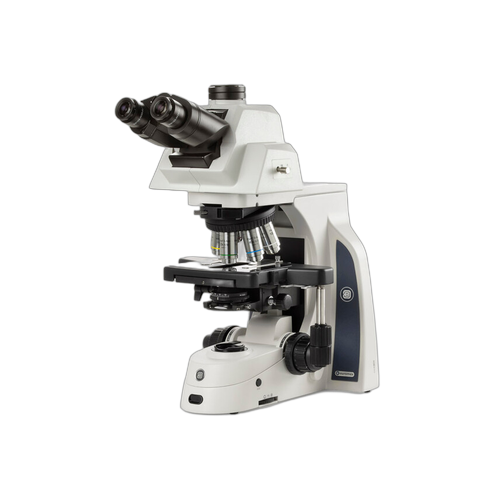

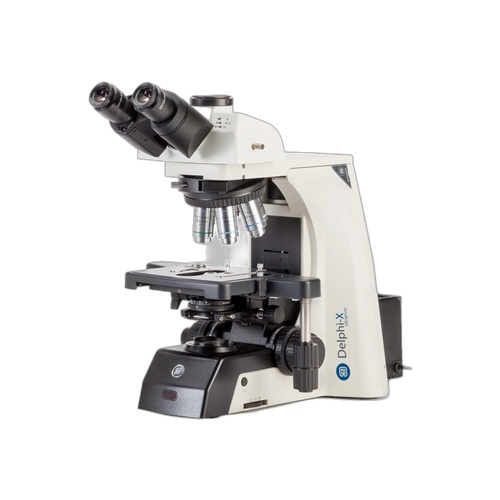

Euromex Delphi-X Observer 고급 정립현미경 Advanced Upright Microscope

Advanced upright microscope with Plan-Apo objectives, 25 mm FoV eyepiece, for cytology and pathology

세포학·해부병리 전용 플랜-아포 대물렌즈, 25mm 시야 고급 정립현미경

Category: Tags: , , , , , , , , Brand:

Description

The Euromex Delphi-X Observer is a premium upright microscope engineered for the most demanding life science applications — cytology and anatomopathology. Its outstanding Plan-Apochromatic 60 mm parafocal EIS objectives with 25 mm field of view deliver the highest color fidelity and resolving power for professional pathologists.

Euromex Delphi-X Observer는 세포학 및 해부병리 분야를 위한 최고급 정립현미경입니다. 25mm 시야(FoV)를 갖춘 Plan-Apo 60mm 대물렌즈와 NeoLED™ 조명을 통해 뛰어난 색 재현성과 해상력을 제공합니다.

Key Features

  • Plan-Apochromatic 60 mm parafocal EIS objectives with 25 mm FoV
  • 25mm 시야의 Plan-Apo 60mm 대물렌즈 — 최고 수준의 색수차 보정
  • Light Intensity Memory (LIM) — auto-saves brightness per objective
  • LIM 기능 — 대물렌즈 전환 시 광량 자동 복원
  • Diascopic 3W NeoLED™ or 100W halogen Köhler illumination
  • 3W NeoLED™ 또는 100W 할로겐 Köhler 조명 선택

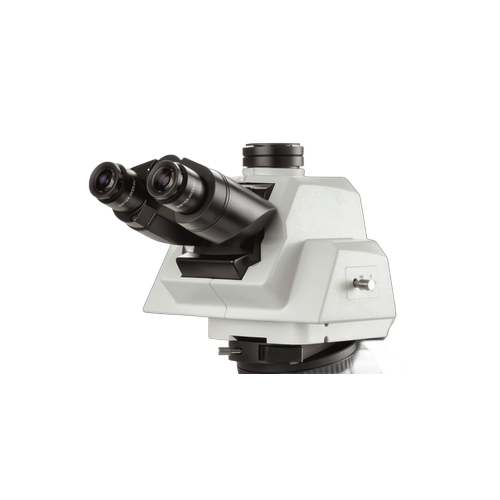

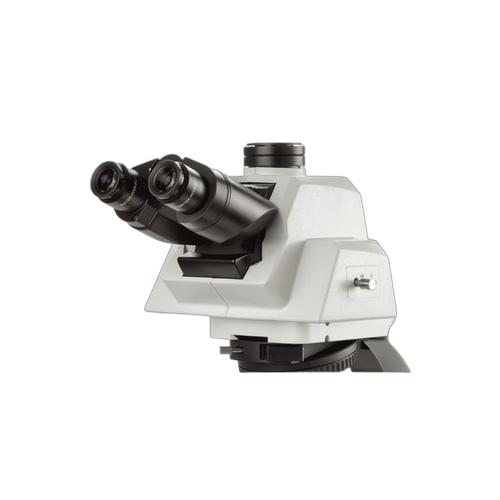

  • Ergonomic tilting head (0°–35°) available
  • 0°–35° 틸팅 에르고노믹 헤드 선택 가능
  • Face-to-face dual head and multi-head systems (2/3/5-head)
  • 페이스투페이스 듀얼 헤드 및 다중헤드 구성 지원

Applications

  • Anatomopathology and cytology
  • 해부병리학 및 세포학
  • Advanced life science research
  • 고급 생명과학 연구
  • University and research laboratory use
  • 대학교·연구소 전용

Models Overview

MODELS Ergo head EWF 10x/25mm Sextuple nosepiece Plan 4/10/20/S40 EIS Plan S100x EIS Plan Semi-Apo EIS Plan Phase EIS 3W NeoLED™ 100W halogen
DX.1053-PLi ● ● ● ●
DX.1153-PLi ● ● ● ● ●
DX.1158-PLi ● ● ● ● ● ●
DX.1153-APLi ● ● ● ●
DX.1158-APLi ● ● ● ● ●
DX.1153-PLPHi ● ● ● ●
DX.1158-PLPHi ● ● ● ● ●
DX.2053-PLi ● ● ● ●
DX.2153-PLi ● ● ● ● ●
DX.2158-PLi ● ● ● ● ● ●
DX.2153-APLi ● ● ● ●
DX.2158-APLi ● ● ● ● ●
DX.2153-PLPHi ● ● ● ●
DX.2158-PLPHi ● ● ● ● ●

Models (3W NeoLED)

MODELS Ergo head EWF 10x/25mm Sextuple nosepiece Plan 4/10/20/S40 EIS Plan S100x EIS Plan Semi-Apo EIS Plan Phase EIS 3W NeoLED™
DX.1053-PLi ● ● ● ●
DX.1153-PLi ● ● ● ● ●
DX.1158-PLi ● ● ● ● ● ●
DX.1153-APLi ● ● ● ●
DX.1158-APLi ● ● ● ● ●
DX.1153-PLPHi ● ● ● ●
DX.1158-PLPHi ● ● ● ● ●

Models (100W Halogen)

MODELS Ergo head EWF 10x/25mm Sextuple nosepiece Plan 4/10/20/S40 EIS Plan S100x EIS Plan Semi-Apo EIS Plan Phase EIS 100W 24V halogen
DX.2053-PLi ● ● ● ●
DX.2153-PLi ● ● ● ● ●
DX.2158-PLi ● ● ● ● ● ●
DX.2153-APLi ● ● ● ●
DX.2158-APLi ● ● ● ● ●
DX.2153-PLPHi ● ● ● ●
DX.2158-PLPHi ● ● ● ● ●

Models (3W NeoLED Köhler)

MODELS Ergo head EWF 10x/25mm Sextuple nose Plan 4/10/20/S40 EIS Plan S100x EIS Plan Semi-Apo EIS Plan Phase EIS 3W NeoLED™
DX.1053-PLi ● ● ● ●
DX.1153-PLi ● ● ● ● ●
DX.1158-PLi ● ● ● ● ● ●
DX.1153-APLi ● ● ● ●
DX.1158-APLi ● ● ● ● ●
DX.1153-PLPHi ● ● ● ●
DX.1158-PLPHi ● ● ● ● ●

Models (100W Halogen)

MODELS Ergo head EWF 10x/25mm Sextuple nose Plan 4/10/20/S40 EIS Plan S100x EIS Plan Semi-Apo EIS Plan Phase EIS 100W halogen
DX.2053-PLi ● ● ● ●
DX.2153-PLi ● ● ● ● ●
DX.2158-PLi ● ● ● ● ● ●
DX.2153-APLi ● ● ● ●
DX.2158-APLi ● ● ● ● ●
DX.2153-PLPHi ● ● ● ●
DX.2158-PLPHi ● ● ● ● ●

Specifications

Parameter Specification
Eyepiece EWF 10x/25 mm
Objectives Plan-Apo 60mm parafocal EIS (IOS infinity corrected)
Nosepiece Reversed quintuple or sixtuple (ball-bearing)
Illumination 3W NeoLED™ Köhler / 100W halogen Köhler (selectable)

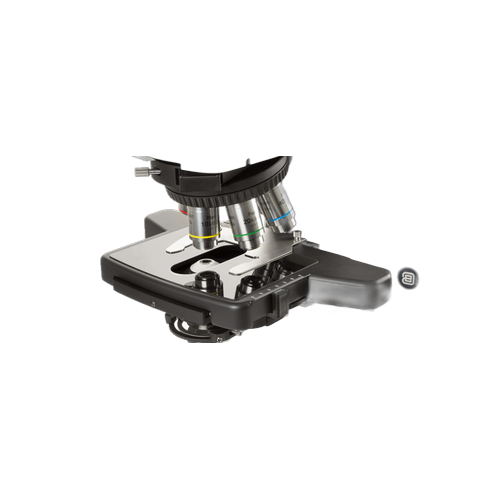

Stage Hard-coated rackless, 2-slide holder
Focusing (fine) 0.2 mm/rotation, division 0.002 mm, range 30 mm
Warranty 10 years
