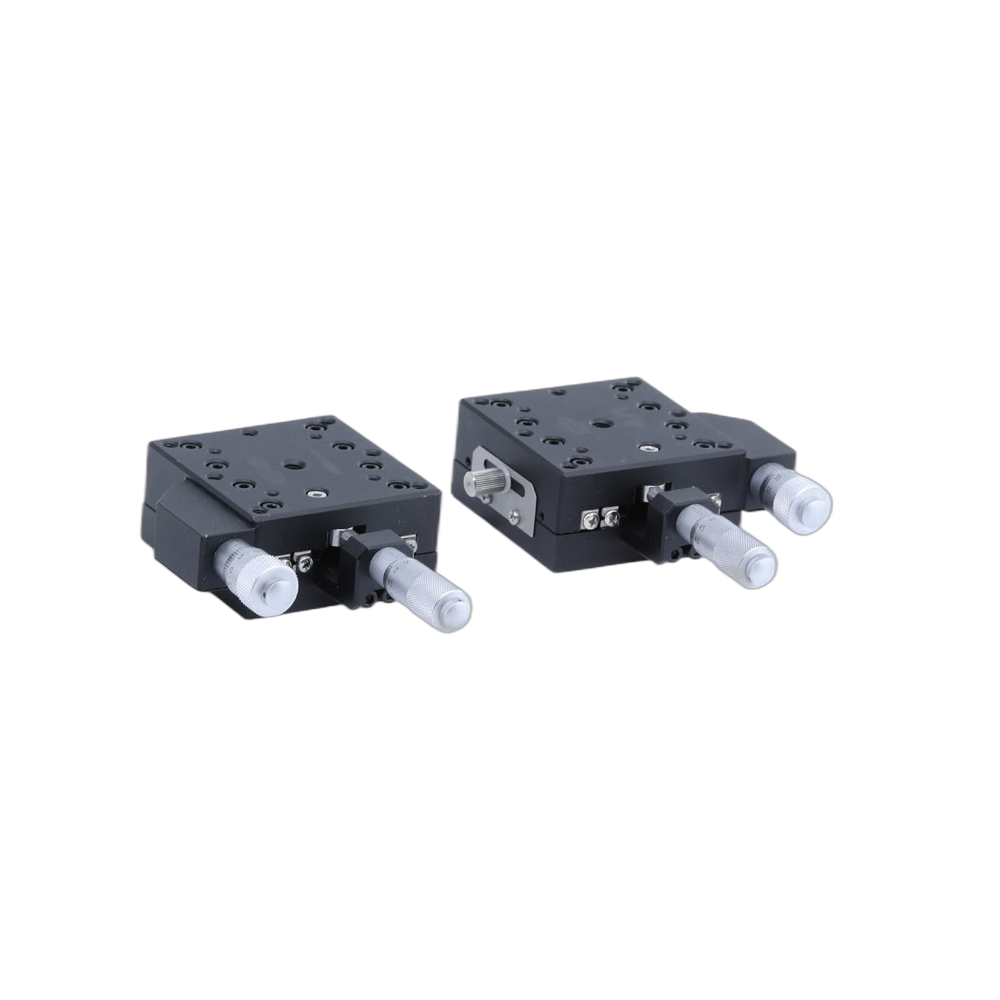

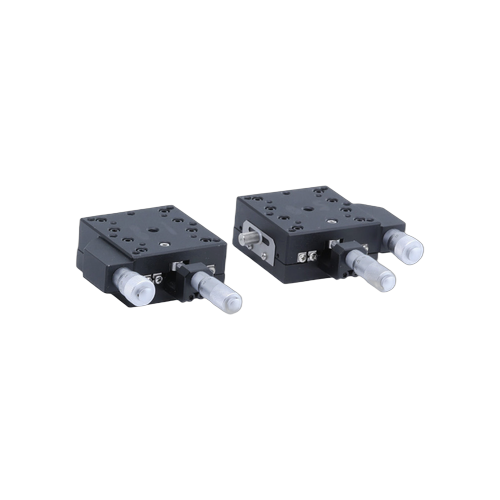

Zolix UFP 고감도 광섬유 정렬 스테이지 UFP Fiber Alignment Stage
UFP series high-sensitivity fiber alignment stages for single-mode fibers
단일모드 광섬유용 UFP 고감도 광섬유 정렬 스테이지
Description
Features: The linear stage has both coarse adjustment and fine adjustment, sensitivity is much better than 0.5um The rotation stage sensitivity is much better than 23.4 High stability Naming Rules
주요 특징: 조동 및 미동 조절이 가능한 선형 스테이지(감도 0.5μm 이상), 회전 스테이지 감도 23.4″ 이상, 높은 안정성.
Specifications
|
Model |
UFP1A |
UFP1B |
UFP1C-L |
UFP1C-R |
UFP2T-L |
UFP2T-R |
|
Table Size(mm) |
60×60 |
45×45 |
||||
|
Table Thickness(mm) |
20 |
25 |
30 |
– |
||
|
Travel |
coarse adjustment:±6.5mm;fine adjustment:±0.3mm |
θx:±3°;θy:±3° |
||||
|
Bearings |
Linear slide guide |
Crossed-Roller Bearings |
Crossed-Roller Ring |
|||
|
Actuators |
micrometer |
|||||
|
Weight(Kg) |
0.28 |
0.32 |
0.4 |
0.64 |
||
|
Sensitivity |
coarse adjustment:≤10µm;fine adjustment≤0.5µm |
θx:≤25.2″;θy:≤23.4″ |
||||
|
Static parallelism |
≤60µm |
– |
||||
|
Motion parallelism |
≤10µm |
– |
||||
|
Motion straightness |
≤3µm |
– |
||||
|
Load(Kg) |
5 |
5 |
5 |
1.5 |
||
