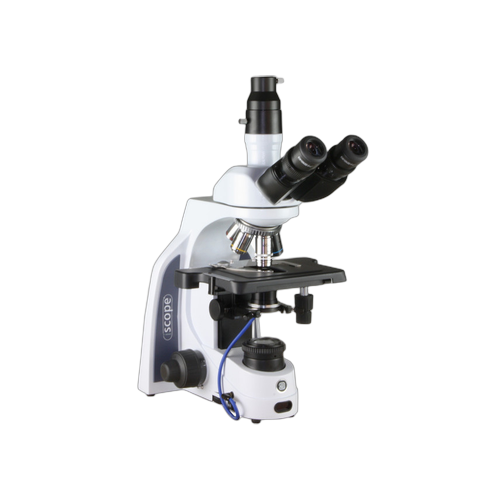

Euromex iScope 암시야현미경 Darkfield Microscope
Darkfield upright microscope with cardioid mirror condenser for live blood analysis and microorganism observation
카디오이드 거울 집광기 탑재 생혈액·미생물 관찰 특화 암시야 현미경
Description

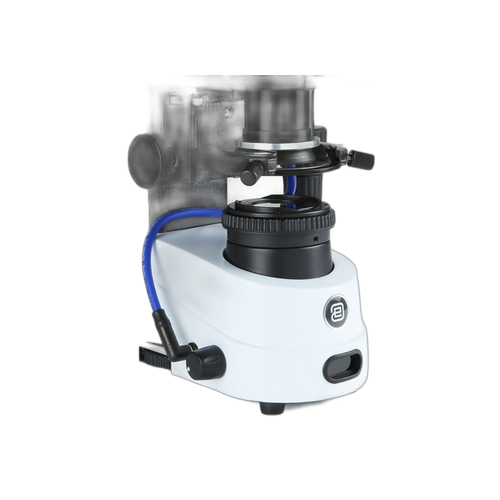

The Euromex iScope Darkfield microscope uses a cardioid mirror condenser with a built-in 3W/5W LED to achieve high-contrast darkfield illumination ideal for live blood analysis and microorganism observation. The scattered light method reveals fine structural details invisible in brightfield, making it an essential tool for alternative health practitioners and research labs.
Euromex iScope 암시야현미경은 내장 LED가 있는 카디오이드 거울 집광기를 사용하여 생혈액 분석 및 미생물 관찰에 최적화된 고대비 암시야 조명을 구현합니다.
Key Features
- Cardioid mirror darkfield condenser with built-in 3W/5W LED
- 3W/5W LED 내장 카디오이드 거울 암시야 집광기
- S100x oil immersion objective with built-in iris
- 조리개 내장 S100x 오일 침지 대물렌즈
- 1000x darkfield magnification capability
- 1000배 암시야 배율 구현
- Rackless mechanical XY stage
- 래크리스 기계식 XY 스테이지
- NeoLED™ transmitted Köhler illumination (standard)
- NeoLED™ 투과 Köhler 조명 (기본)
- iCare Sensor — auto shutoff
- iCare 센서 — 자동 소등
Applications
- Live blood analysis (darkfield)
- 생혈액 분석 (암시야)
- Microorganism and spirochete observation
- 미생물·스피로헤타 관찰
- Life science and biomedical darkfield research
- 생명과학·바이오메디컬 암시야 연구
Objective Specifications
| Objective | 4x/NA | 10x/NA | 20x/NA | S40x/NA | S60x/NA | S100x oil/NA |
|---|---|---|---|---|---|---|
| E-Plan EPL | 0.10 | 0.25 | 0.40* | 0.65 | — | 1.25 oil** |
| Plan PLi IOS | 0.10 | 0.25 | 0.40* | 0.65 | 0.85* | 1.25 oil*** |
Models Overview
| MODELS | EWF eyepieces | E-Plan 4/10/S40x | Plan IOS 4/10/S40x | Plan S100x iris | Stage 156×138mm | Rackless stage | Köhler |
|---|---|---|---|---|---|---|---|
| IS.1153-EPL/DF | 10x/20mm | ● | ● | ● | |||
| IS.1153-PLi/DFi | 10x/22mm | ● | ● | ● |
Models Overview
| MODELS | EWF eyepieces | E-Plan 4/10/S40x | Plan IOS 4/10/S40x | Plan S100x iris | Stage 156×138mm | Rackless stage | Köhler |
|---|---|---|---|---|---|---|---|
| IS.1153-EPL/DF | 10x/20mm | ● | ● | ● | |||
| IS.1153-PLi/DFi | 10x/22mm | ● | ● | ● |
Objective Specifications
| Objective | 4x / NA | 10x / NA | S40x / NA | S60x / NA | S100x oil / NA |
|---|---|---|---|---|---|
| E-Plan EPL | 0.10 | 0.25 | 0.65 | — | 1.25 |
| Plan PLi IOS | 0.10 | 0.25 | 0.65 | 0.85 | 1.25 |
Specifications
| Parameter | Specification |
|---|---|
| Darkfield Condenser | Cardioid mirror, built-in 3W/5W LED |
| Darkfield Objective | S100x oil immersion (built-in iris diaphragm) |
| Max Magnification | 1000x (darkfield) |
| Transmitted Illumination | 3W NeoLED™ Köhler |
| Stage | Rackless 187×140 mm + 79×52 mm XY |
| Warranty | 10 years |
원본 링크: Euromex iScope Darkfield
