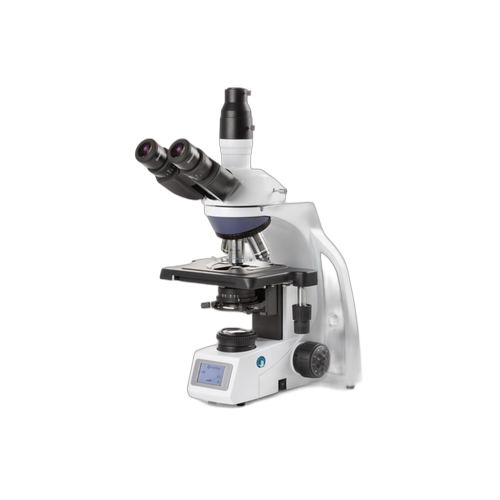

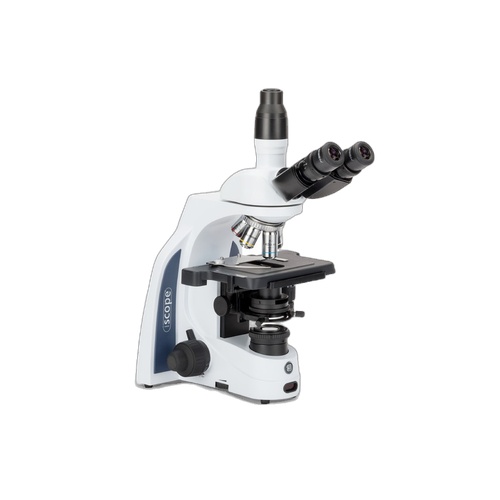

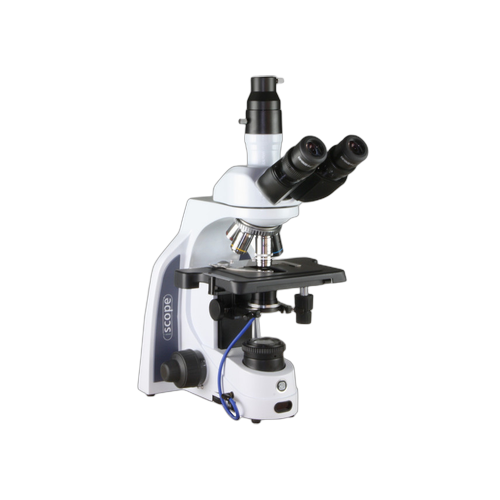

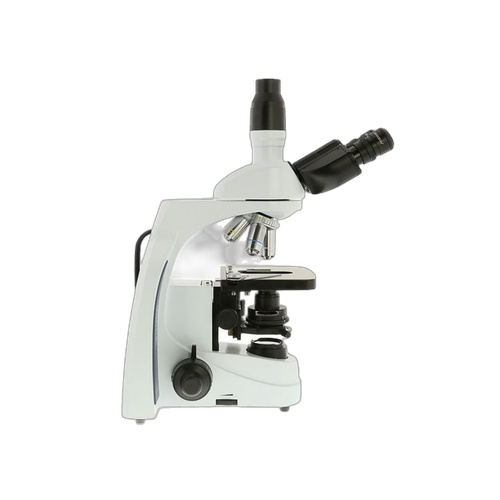

Euromex iScope 형광현미경 Fluorescence Upright Microscope
Fluorescence upright microscope with mercury vapor or LED epi-illumination for life science and biotechnology
수은 증기등 또는 LED 에피조명 탑재 생명과학·바이오테크용 형광 정립현미경
Description
The Euromex iScope fluorescence microscope is engineered for fluorescence applications in Life Science and Biotechnology. Using mercury vapor or LED epi-illumination with excitation/emission filter sets, it enables visualization of fluorophore-labeled cells and tissues for research in cell biology, immunology, and oncology.
Euromex iScope 형광현미경은 생명과학 및 바이오테크놀로지 분야의 형광 응용을 위해 설계되었습니다. 수은 증기등 또는 LED 에피조명과 여기/방출 필터 세트를 통해 형광 표지된 세포와 조직을 시각화합니다.
Key Features
- 6-position rotating or 3-position slider fluorescence attachment
- 6위치 회전식 또는 3위치 슬라이더 형광 어태치먼트
- 100W mercury vapor epi-illuminator option
- 100W 수은 증기등 에피조명 옵션
- Plan Fluarex IOS objectives (semi-apochromatic, optional)
- Plan Fluarex IOS 대물렌즈 (반-아포, 선택 가능)
- NeoLED™ 3W transmitted Köhler illumination
- NeoLED™ 3W 투과 Köhler 조명
- iCare Sensor — auto shutoff for energy saving
- iCare 센서 — 에너지 절약 자동 소등
- Medical device class I certified
- 의료기기 클래스 I 인증
Applications
- Immunofluorescence and cell biology
- 면역형광·세포생물학
- Tumor cell identification
- 종양 세포 식별
- Antibody presence/absence verification
- 항체 유무 검증
- Fluorophore-based biological assays
- 형광 기반 생물학적 분석
Models (6-position rotating)
| MODELS | Trinocular | WF 10x/22mm | Diopter left | Diopter both | E-Plan IOS | Plan IOS | Plan Fluarex IOS | 100W HBO | Filter sets B+G | NeoLED |
|---|---|---|---|---|---|---|---|---|---|---|
| IS.3153-EPLi/6 | ● | ● | ● | ● | ● | ● | ● | |||
| IS.3153-PLi/6 | ● | ● | ● | ● | ● | ● | ● | |||
| IS.3153-PLFi/6 | ● | ● | ● | ● | ● | ● | ● |
Models (3-position slider)
| MODELS | Trinocular | WF 10x/22mm | Diopter both | Plan IOS | Plan Fluarex IOS | 100W HBO | Filter sets B+G | NeoLED |
|---|---|---|---|---|---|---|---|---|
| IS.3153-PLi/3 | ● | ● | ● | ● | ● | ● | ● | |
| IS.3153-PLFi/3 | ● | ● | ● | ● | ● | ● | ● |
Models — 6-position rotating
| MODELS | Trinocular | WF 10x/22mm | Diopter left tube | Diopter both tubes | E-Plan IOS | Plan IOS | Plan Fluarex IOS | 100W HBO | Filter sets (B+G) | NeoLED |
|---|---|---|---|---|---|---|---|---|---|---|
| IS.3153-EPLi/6 | ● | ● | ● | ● | ● | ● | ● | |||
| IS.3153-PLi/6 | ● | ● | ● | ● | ● | ● | ● | |||
| IS.3153-PLFi/6 | ● | ● | ● | ● | ● | ● | ● |
Models — 3-position slider
| MODELS | Trinocular | WF 10x/22mm | Diopter both tubes | Plan IOS | Plan Fluarex IOS | 100W HBO | Filter sets (B+G) | NeoLED |
|---|---|---|---|---|---|---|---|---|
| IS.3153-PLi/3 | ● | ● | ● | ● | ● | ● | ● | |
| IS.3153-PLFi/3 | ● | ● | ● | ● | ● | ● | ● |
Objective Specifications
| Objective | 4x / NA | 10x / NA | S40x / NA | S100x oil / NA |
|---|---|---|---|---|
| E-Plan EPLi IOS | 0.10 | 0.25 | 0.65 | 1.25 |
| Plan PLi IOS | 0.10 | 0.25 | 0.65 | 1.25 |
| Plan Fluarex PLFi IOS | 0.13 | 0.30 | 0.65 | 1.30 |
Specifications
| Parameter | Specification |
|---|---|
| Fluorescence Source | 100W mercury vapor or LED (epi-illumination) |
| Filter Positions | 6-position rotating or 3-position slider |
| Objectives | Plan Fluarex IOS (semi-apochromatic, optional) |
| Transmitted Illumination | 3W NeoLED™ Köhler |
| Warranty | 10 years |
