Zolix OMHS 범용 키네마틱 미러 마운트 OMHS General Purpose Kinematic Mount

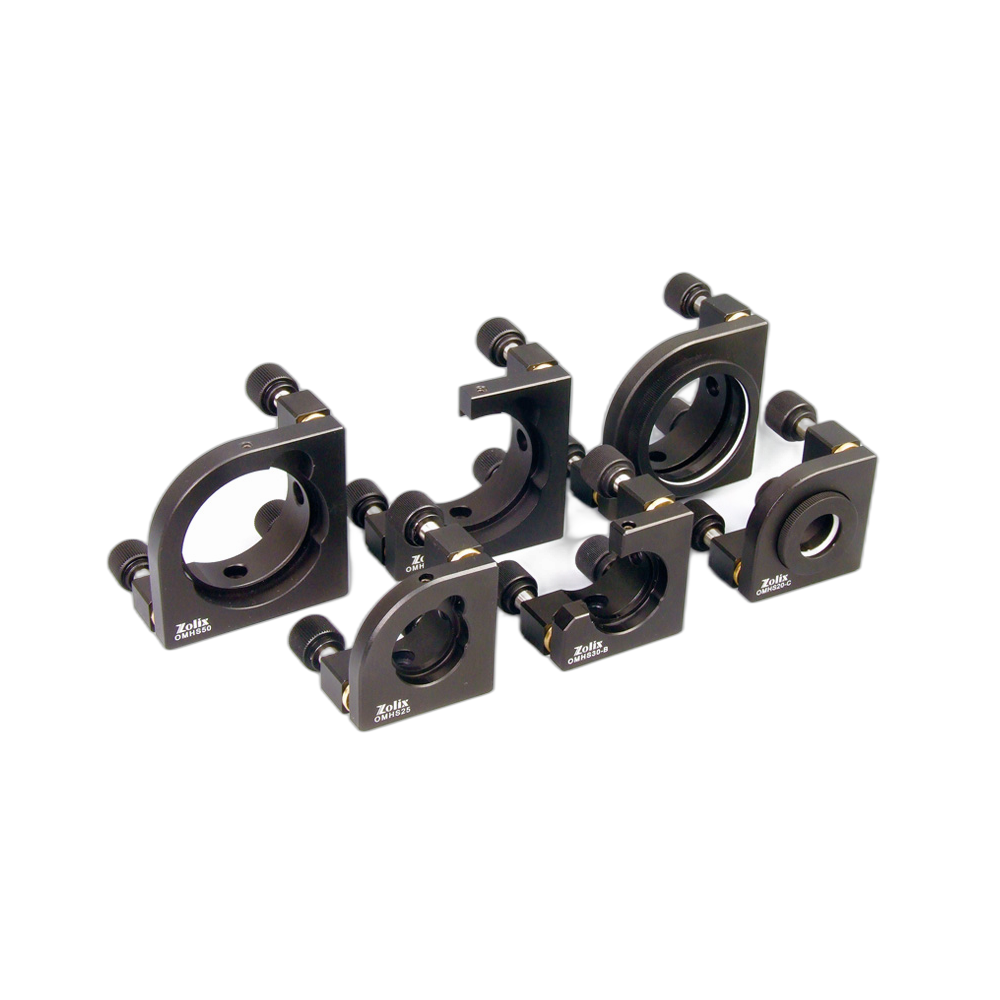

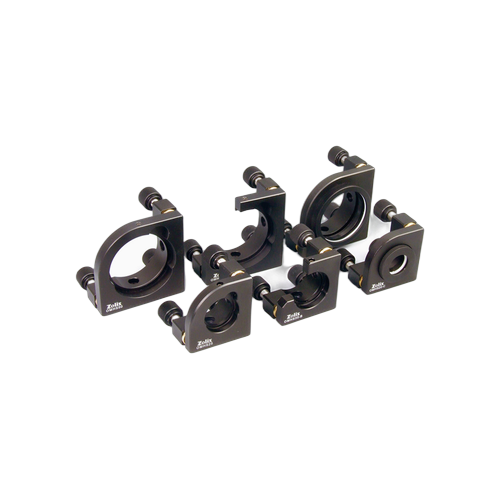

OMHS general purpose kinematic mirror mount for precision alignment
정밀 정렬용 OMHS 범용 키네마틱 미러 마운트
Description
Features: 3pcs 0.25 mm pitch fine thread pairs for 3D adjustment, for high sensitivity; Cover 12.7~ 50.8 mm size Flexible fixing method : Standard with thumb wheel screw, option with open screw (-B) and elastic press ring(-C) Standrd without the locking drive; all model with option for locking (-S) Selection Table:
주요 특징: 3개의 0.25mm 피치 정밀 나사 쌍으로 3D 조절 및 높은 감도 구현, 12.7~50.8mm 크기 대응, 엄지 휠 나사(기본)/개방형 나사(-B)/탄성 압착링(-C) 선택 가능, 잠금 드라이브 없음(기본), 잠금 옵션(-S) 선택 가능.
|
Model |
OMHS12.7(-S) |
OMHS20(-S) |
OMHS25(-S) |
OMHS30(-S) |
OMHS38.1(-S) |
OMHS50.8(-S) |
|
Optic Size (mm) |
φ12.5/φ12.7 |
φ20 |
φ25/φ25.4 |
φ30 |
φ38.1 |
φ50/φ50.8 |
|
Optics Thickness (mm) |
3~5 |
4~8 |
||||
|
Adjustment Angle Range (°) |
±3 |
|||||
|
Front Plate Translation (mm) |
MAX6 |
|||||
|
Clear ApertureB(mm) |
φ11 |
φ18 |
φ22 |
φ27 |
φ35 |
φ47 |
|
Optic Center Height (mm) |
25 |
25 |
25 |
25 |
35 |
35 |
|
One Round of Screw Drive vs Angle Adjusted (°) |
≈0.39 |
≈0.39 |
≈0.39 |
≈0.39 |
≈0.25 |
≈0.25 |
|
Main Body Material and Treatment |
aluminium alloy, surface treated by black anodic oxidation. |
|||||
|
Fixed Plate Thickness(mm) |
18 |
|||||
|
Number of Pulling Spring |
2 |
4 |
||||
|
Mounting Hole |
M6,φ8sink hole |
|||||
|
Net Weight (g) |
148(160) |
142(154) |
138(150) |
135(147) |
215(227) |
185(197) |
|
Model |
OMHS12.7-B(S) |
OMHS20-B(S) |
OMHS25-B(S) |
OMHS30-B(S) |
OMHS38.1-B(S) |
OMHS50.8-B(S) |
|
Optic Size (mm) |
φ12.5/φ12.7 |
φ20 |
φ25/φ25.4 |
φ30 |
φ38.1 |
φ50/φ50.8 |
|
Optics Thickness (mm) |
3~5 |
4~8 |
||||
|
Adjustment Angle Range (°) |
±3 |
|||||
|
Front Plate Translation (mm) |
MAX6 |
|||||
|
Clear ApertureB(mm) |
φ11 |
φ18 |
φ22 |
φ27 |
φ35 |
φ47 |
|
Optic Center Height (mm) |
25 |
25 |
25 |
25 |
35 |
35 |
|
One Round of Screw Drive vs Angle Adjusted (°) |
≈0.39 |
≈0.39 |
≈0.39 |
≈0.39 |
≈0.25 |
≈0.25 |
|
Main Body Material and Treatment |
aluminium alloy, surface treated by black anodic oxidation. |
|||||
|
Fixed Plate Thickness(mm) |
18 |
|||||
|
Number of Pulling Spring |
2 |
4 |
||||
|
Mounting Hole |
M6,φ8sink hole |
|||||
|
Net Weight (g) |
138(150) |
135(146) |
132(143) |
130(140) |
195(206) |
175(186) |
